PRO SM-MAS, stainless steel mounting bracket, mounting of MA-based maritime antennas on mast tubes with an outer diameter of 30-44 mm
Order number:
7000 00580800
Manufacturer number: 110000196
View compatible articles
Product information

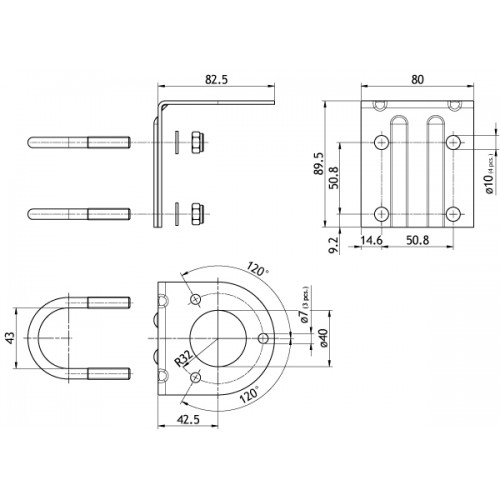

With this bracket, all antennas equipped with the "MA" mounting type can be mounted at the top of a mast tube.
These antennas include AAC 1, BCL 1-KA, AIS 2/GPS 4 and MA 70/GPS 4/...
The outer diameter of the mast tube must be in the range of 30 to 43 mm.
Please note that the SM-MAS should be mounted at the very top of the mast tube, otherwise the antenna or part of the antenna will be positioned parallel to the mast tube and the SWR and radiation pattern of the antenna will be distorted.
The SM-MAS bracket, U-bracket and fittings are made of stainless, acid-resistant steel.
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00535300 | 110000200 |

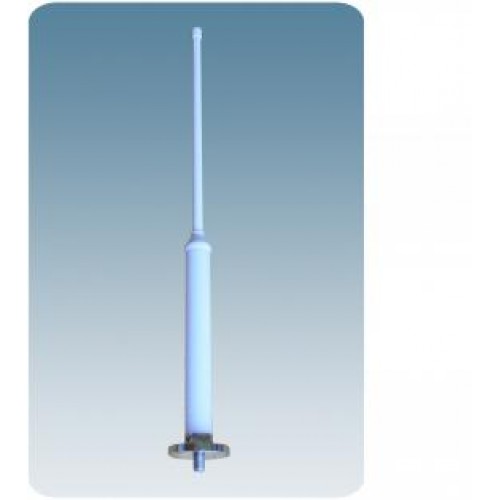

PRO MA 70/GPS 4/TETRA-l, dual band antenna, frequency range 380-400 MHz, GPS, N coupler
|
PROCOM Deutschland GmbH |
