Accessories Optical Distribution System

Filter products

PBE Europe Ltd trading as PBE Axell
Panel with status lights: PWR green, ERR red, DATA ul/dl yellow, OPTO Rx/Tx green. SC/APC port with warning sign.

Opto-module
for extending the OMU MK I and OMU MK II optical master unit

Manufacturer number: J1601001 Order number: 7000 00111500
Further details
Andrew Wireless System GmbH
White label with three green rectangles, blue text C, 1, 2; top inscription: Andrew

Optical Splitter
2-port, 1310+1550 for expanding the ION-M4 Master Unit, including 1x 30 cm fiber optic patch cable with E2000 APC connector

Manufacturer number: 7578410-00 Order number: 7000 00113200
Further details
Andrew Wireless System GmbH
Coaxial cable RF Multiflex 86, length 0.3 meters.

RF multiflex cable
required twice for each optics extension

Manufacturer number: 7845194-00 Order number: 7000 00751675
Further details
Andrew Wireless System GmbH
Cable with a round connector and open, colored wires at the other end.

Alarm cable
up to 4 I/O contacts for U-Cab Optical remote units with internal alarm contacts

Manufacturer number: 7832477 Order number: 7000 00113700
Further details
Andrew Wireless System GmbH
Panel with green switch, warning symbol, and CommScope label.

Smart OTRx 1/4 MU-G

Manufacturer number: 7844052-02 Order number: 7000 00757650
Further details
Andrew Wireless System GmbH
Metal device with display and connectors on blue background.

OTRx 1/4/9 MU

Manufacturer number: 7600668-04 Order number: 7000 00752869
Further details
Andrew Wireless System GmbH
Four green rectangular modules labeled C, 1, 2, 3, and 4. Serial number 7578409-00.

Optical Splitter
4-port, 1310+1550 for expanding the ION-M4 Master Unit, including 1x 30 cm fiber optic patch cable with E2000 APC connector

Manufacturer number: 7578409-00 Order number: 7000 00113300
Further details
PBE Europe Ltd trading as PBE Axell
Device with Ethernet port, LMT interface, LEDs: Power, Optics Module, Alarm, Online.

PBE Controller for BSF 3604 Optical Remotes, D-CSR 3604, D-CSF3604 Unit for wall-mounted housing

Manufacturer number: H481003 Order number: 7000 00108600
Further details
PBE Europe Ltd trading as PBE Axell
Metal case with handles, indicator lights, and ports.

OMU squelch interface
in 2U 19’ housing, frequency range 380-386.5/390-396.5 MHz, power supply 48 VDC

Manufacturer number: 60-307502 Order number: 7000 00753976
Further details
Andrew Wireless System GmbH
Detailed drawing of a technical device with cooling fins and cable connections.

Mounting kit
for vertical mounting of U-Cab enclosures in 19" cabinets

Manufacturer number: 7816691 Order number: 7000 00113900
Further details
Andrew Wireless System GmbH
Black RF cable RG223, coiled, two connectors visible.

RF cable RG223
1,5 m, with SMA male on both sides

Manufacturer number: 7104968 Order number: 7000 00118600
Further details
PBE Europe Ltd trading as PBE Axell
Green electronic circuit board with various connectors and components.

Controller
with LTE modem for 19" housing

Manufacturer number: Cobra-R02 Order number: 7000 00754054
Further details
Andrew Wireless System GmbH

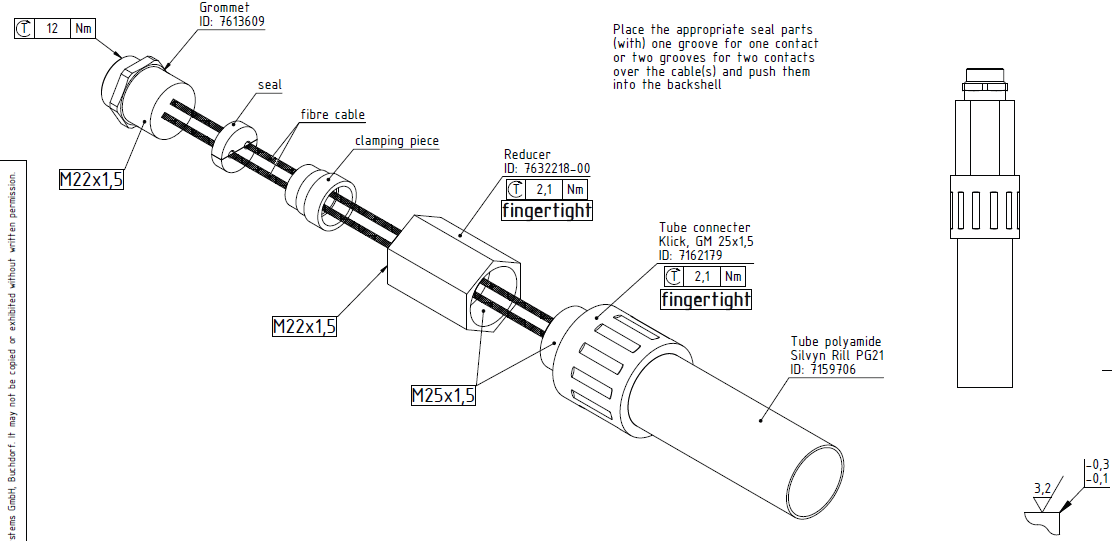

Technical drawing of a cylindrical object with grooves.

Fibre protection kit
for U-Cab Repeater

Manufacturer number: 7632220 Order number: 7000 00753659
Further details
Andrew Wireless System GmbH

Smart OTRx 4/9 MU-G

Manufacturer number: 7844050-02 Order number: 7000 00754651
Further details
Andrew Wireless System GmbH

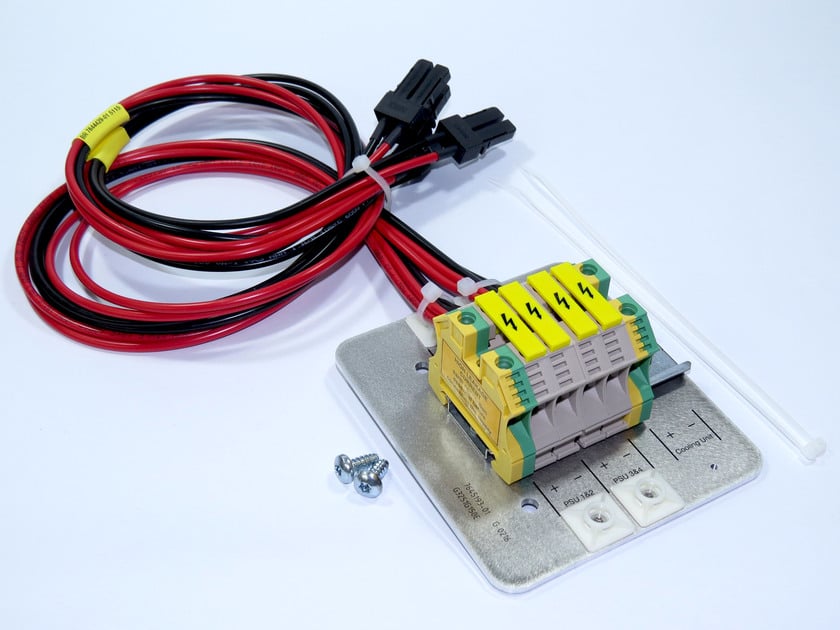

Electrical terminal block with red and black wires, including two screws.

ION mains block kit DC
DC connection kit with terminal block for PSDU

Manufacturer number: 7708038 Order number: 7000 00753505
Further details
Andrew Wireless System GmbH
AC/DC cable AWG16, 0.07m, 4 wires with green connectors.

Power cable
4-pin, 0.07 m, AWG16 AC/DC

Manufacturer number: 7693342-00 Order number: 7000 00753272
Further details
Andrew Wireless System GmbH

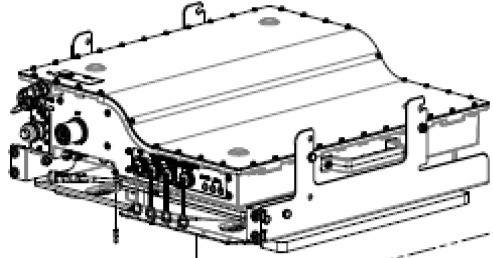

Detailed technical component with connectors and brackets.

Installation kit
horizontal U-Cab repeater in a 19" rack

Manufacturer number: 7816694 Order number: 7000 00753658
Further details
Andrew Wireless System GmbH

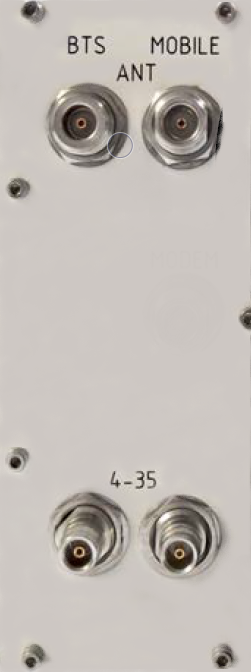

Four connectors on a panel with labels: BTS, MOBILE, ANT, 4-35.

Input combiner kit
frequency range 350-3500 MHz, internal modem port for Node A2+ and Node A4+

Manufacturer number: 7574290 Order number: 7000 00752339
Further details
Andrew Wireless System GmbH
Panel with ports: RF-Port 1, Att 1, Modem, RF-Port 2, Att 2.

BTS Interface
Tx-Rx separated with 2 variable Attenuators, frequency range 380-512 MHz

Manufacturer number: 7614492-00 Order number: 7000 00753657
Further details
Andrew Wireless System GmbH
Metal case with four modules, ventilation slots, LED indicators at front.

Power supply distribution unit

Manufacturer number: 7683191-00 Order number: 7000 00748503
Further details
Andrew Wireless System GmbH

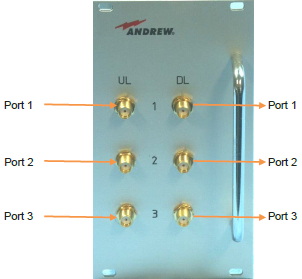

Six gold-plated connectors on metal plate, UL left, DL right.

Adapter HF level
for calibrating the DC output in the ION-M4 Master Unit, SMA coupler

Manufacturer number: 7513259 Order number: 7000 00117200
Further details
Andrew Wireless System GmbH

Expansion kit
for a second DC power supply for Smart-OMU without a DC power supply. Please order the power supply separately

Manufacturer number: OMU-KIT_1 Order number: 7000 00758047
Further details
Andrew Wireless System GmbH

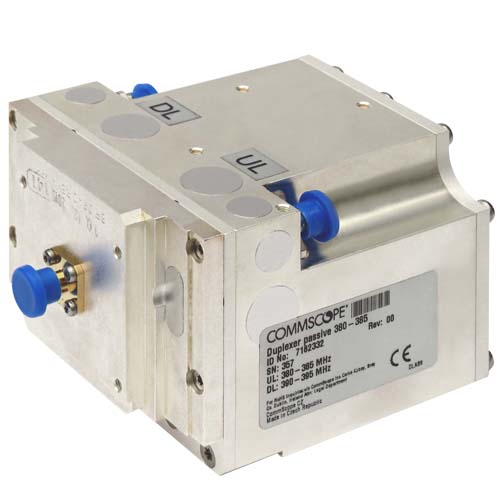

Metallic duplexer with blue connectors, COMMSCOPE label.

Duplexer
passive, frequency range 380-385 MHz/390-395 MHz for extending the ION-M4 Master Unit, SMA connector

Manufacturer number: 7162332 Order number: 7000 00114400
Further details
Andrew Wireless System GmbH

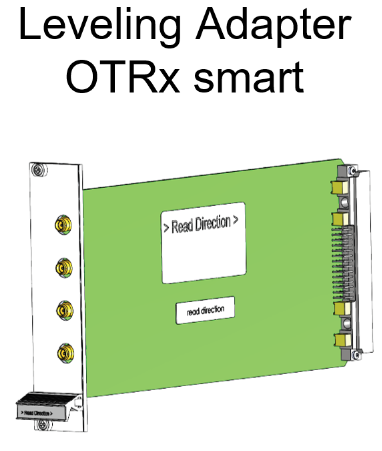

Electronic adapter labeled 'Read Direction'.

Leveling adapter
smart optics

Manufacturer number: 7848331-00 Order number: 7000 00751678
Further details
