PRO MA 70/GPS 4/TETRA-l, dual band antenna, frequency range 380-400 MHz, GPS, N coupler
Order number:
7000 00535300
Manufacturer number: 110000200
View accessories
Product information
FEATURES/ADVANTAGES
- This active antenna is designed for use in the UHF band, e.g. for TETRA, CDMA, ICE and GPS.
- The antenna consists of a high-performance, fiber-optic encapsulated antenna element and an active GPS antenna. The latter is built into the antenna base together with a diplex filter. Only one downward cable is therefore required.
- The antenna element is a ½ λ antenna for the frequency range of the UHF band in the 380 - 467 MHz range.
- The GPS antenna has full hemispheric coverage and a built-in high-gain, low-noise amplifier.
- The necessary supply voltage (5 V DC) for the amplifier is supplied via the coaxial cable that runs downwards. Up to 30 m of RG 214/U coaxial cable can be used between the antenna and the receiver/transceiver.
- Thanks to the careful selection of materials, the MA 70/GPS 4/... is designed for the harshest climatic conditions and guarantees many years of trouble-free operation.
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00489400 | 110000035 |
PRO Bracket set for YA yacht fitting for 1" antennas
|
PROCOM Deutschland GmbH |
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00502200 | CSB |
PRO Colinear Standoff Boom welded
|
PROCOM Deutschland GmbH |
|
7000 00580400 | 100000051 |
PRO SMC 1000/65-105, lateral mast bracket, 1000 mm, for mast Ø 65-105 mm
|
PROCOM Deutschland GmbH |
|
7000 00580500 | 100000049 |
PRO SMC 500/15-65, lateral mast bracket, 500 mm, for mast Ø of 15-65 mm
|
PROCOM Deutschland GmbH |
|
7000 00580600 | 100000048 |
PRO SMC 500/65-105, lateral mast bracket, 500 mm, for mast Ø of 65-105 mm
|
PROCOM Deutschland GmbH |
|
7000 00580700 | 100000045 |
PRO SMC 1000/15-65, lateral mast bracket, 1000 mm, for mast Ø of 15-65 mm
|
PROCOM Deutschland GmbH |
|
7000 00580800 | 110000196 |

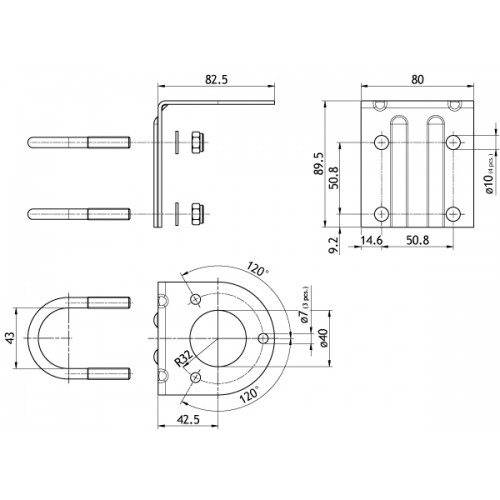

PRO SM-MAS, stainless steel mounting bracket, mounting of MA-based maritime antennas on mast tubes with an outer diameter of 30-44 mm
|
PROCOM Deutschland GmbH |
