PTCarPhone 6 LTE communication system with GPS and Wi-Fi hotspot incl. Handset HA59, cradle A58, speaker KL18, hands-free microphone ME16, extension cable for handset 2.5 m, EU variant
Order number:
01 6609 00610051
Manufacturer number: PTC6/HA59/A58/ME16/KL18/C-2,5m/RJ50/EU
View accessories
Product information
The LTE car phone with GPS, Wi-Fi hotspot and telematics features for permanent installation
At a glance
- LTE with multi-antenna technology (MIMO) and VoLTE support
- Wi-Fi hotspot
- Integrated GPS module
- Extensive range of accessories
- Excellent telephony and audio quality
- Optimum reception thanks to various connections for external antennas
- Stand-alone system with SIM card holder (mini SIM card, 2FF)
- Detachable handset for discreet phone calls
- 6 digital inputs and outputs
- Individually adjustable restrictions
- Programming interfaces: AT commands via USB, RS-232, SMS or MQTT
- Remote configuration via the Bridge online platform
Scope of delivery
- LTE electronics box with GPS and Wi-Fi (Europe)
- Handset with Cradle
- Loudspeaker (8 Ω)
- Hands-free microphone
- Extension cable for handset (2.5 m)
- Connection cable set
- Quick and installation guide (multilingual)
Options
- PTVoiceBox 4G - module for voice and data transmission (01 6609 00610451)
- "Hidden emergency call" software function (6999-012-000-00)
- Software function "Automatic redialing" (6999-013-000-00)
Area of application
- Company vehicles and vehicle fleet
- Security and emergency
- Transportation and logistics
- Cabs and buses
- Car rentals
- Limousine services
- Boats and ships
- Construction, forestry and agricultural vehicles
- Caravans, caravans and outdoor equipment
- Stationary applications, including cabins and emergency call points
- Waste management
pei tel Communications GmbH
Rheinstraße 15 A
14513 Teltow
Germany
hello@peitel.com
https://www.peitel.com
Rheinstraße 15 A
14513 Teltow
Germany
hello@peitel.com
https://www.peitel.com
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00757770 | 135 |
Combination antenna Shark
|
frequency range TETRA 380-410 + 868 MHz, LTE, GPS, Fakra male | VIMCOM AG |
|
7000 00723500 | 120 |
Combination antenna Shark MIMO
|
frequency range 130-500 MHz, 2x LTE, 2x Wi-Fi, GPS, Fakra male | VIMCOM AG |
|
7000 00758369 | 155 |
Combination antenna Shark
|
frequency range TETRA, 2x LTE-5G, GPS, Fakra male | VIMCOM AG |
|
7000 00753874 | 134 |
Combination antenna Shark
|
frequency range TETRA, 2x LTE, GPS, Fakra male | VIMCOM AG |
|
7000 00753919 | 132 |
Combination antenna Shark
|
frequency range 2x LTE, WLAN, GPS, Fakra male | VIMCOM AG |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
01 6922 00100251 | ME16/C167-3m/Molex/ampl. |
ME16 electret hands-free microphone with amplifier, 3m cable with 2-pin Molex connector
|
pei tel Communications GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
01 6508 00610051 | HA59/A58/VLK-5m/for PTC6/PTVoiceBox |
HA59 EVO handset for PTCarPhone/PTVoiceBox with cradle A58 and 5m extension cable
|
pei tel Communications GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
|
7000 00753925 | 8163.0500.15.50.I |
Jumper cable RF195
|
5.0 m, flame-retardant RF195 cable, Halo/Flame, Fakra I to SMA male | VIMCOM AG |
|
|
7000 00753924 | 8163.0300.15.50.I |
Jumper cable RF195
|
3.0 m, flame-retardant RF195 cable, Halo/Flame, Fakra I to SMA male | VIMCOM AG |
|
|
7000 00753920 | 8163.0300.15.50.C |
Jumper cable RF195
|
3.0 m, flame-retardant RF195 cable, Halo/Flame, Fakra C to SMA male | VIMCOM AG |
|
|
7000 00753921 | 8163.0500.15.50.C |
Jumper cable RF195
|
5.0 m, flame-retardant RF195 cable, Halo/Flame, Fakra C to SMA male | VIMCOM AG |
|
|
7000 00753922 | 8163.0300.15.50.D |
Jumper cable RF195
|
3.0 m, flame-retardant RF195 cable, Halo/Flame, Fakra D to SMA male | VIMCOM AG |
|
|
7000 00753923 | 8163.0500.15.50.D |
Jumper cable RF195
|
5.0 m, flame-retardant RF195 cable, Halo/Flame, Fakra D to SMA male | VIMCOM AG |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
01 6703 00700051 | TF1/Sh.11x243/C44-1,5m |
TF1 gooseneck PTT button, 11x243mm gooseneck, 1.5m open cable
|
pei tel Communications GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
01 6609 00610451 | PTVoiceBox/4G/EU |
PTVoiceBox 4G (LTE) voice and data transmission module (M2M/IoT), with GPS and Wi-Fi hotspot, EU variant
|
pei tel Communications GmbH | |
|
01 6098 26000551 | VLK/C260-2,5m/RJ50 |
Extension cable 2.5m for RJ50 line (10-pin)
|
pei tel Communications GmbH | |
|
01 6098 26000751 | VLK/C260-5m/RJ50 |
Extension cable 5m for RJ50 line (10-pin)
|
pei tel Communications GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
01 6001 01700141 | BW5 |

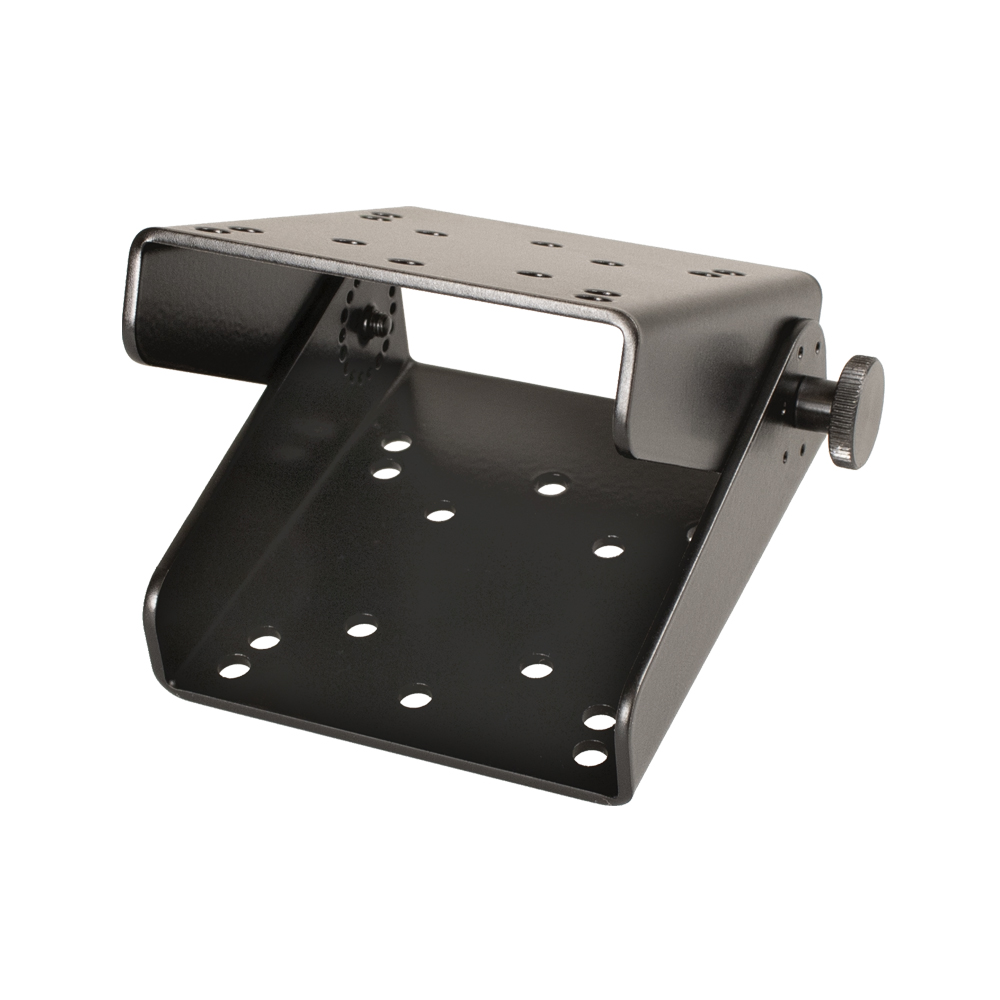

BW5 angle mount
|
with universal hole pattern, 18 holes with 3.5mm diameter | pei tel Communications GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
01 6708 00400000 | I/O wire set for PTC6 |
PTCarPhone 6 I/O cable kit with 12 crimped wires and Würth MPC3 connector set
|
pei tel Communications GmbH | |
|
7000 00753929 | 1795/SMA |
Adhesive antenna LTE innen
|
frequency range 698-2700 MHz, 3.0 m installed RF195, SMA male | VIMCOM AG |
|
7000 00753928 | 313 |
Planar antenna
|
black, 2x LTE-5G, WLAN, GPS, Fakra, 1x 0.3 m RG 316, Fakra male | VIMCOM AG |
