PRO 19", 1U, mounting plate F incl. screws for PRO-ISO-PHY S2 2-way coupler, front connection
Order number:
7000 00490800
Manufacturer number: 210002247
Product information
Features / Advantages

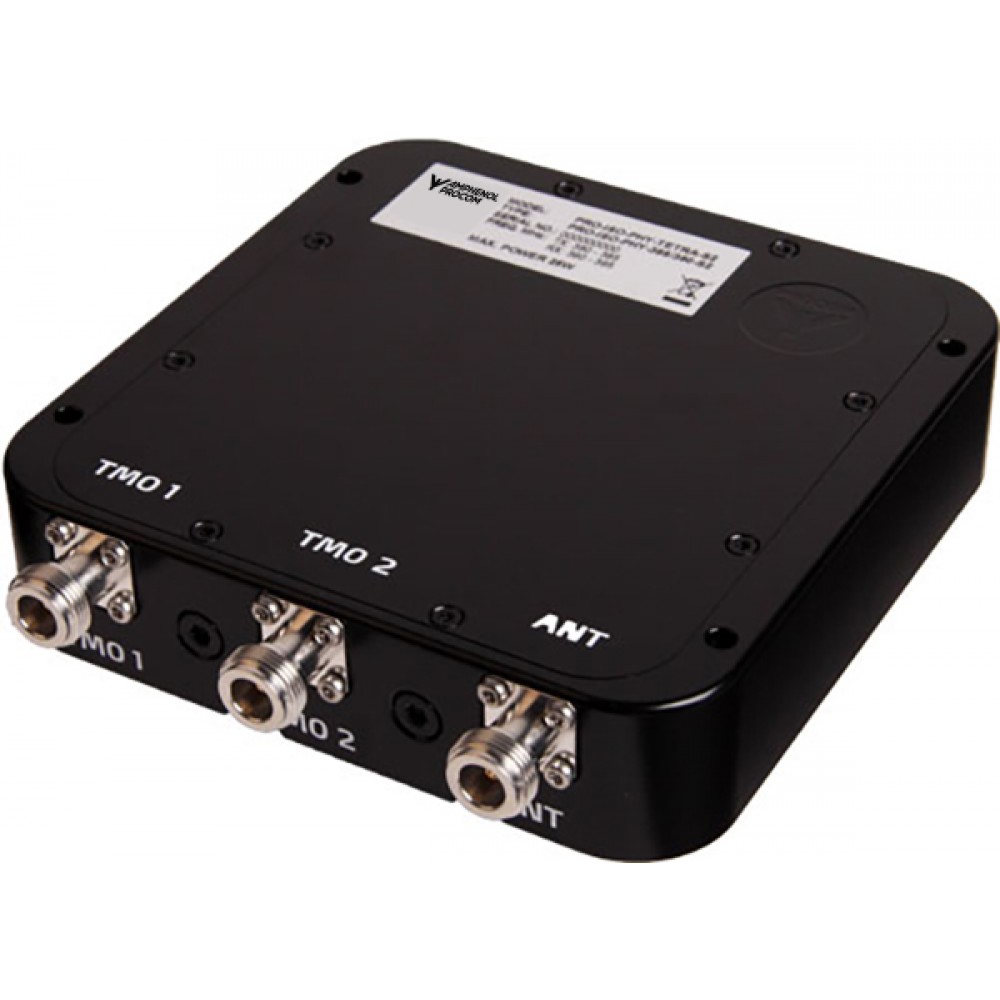

- The PRO-ISO-PHY-TETRA-S2 combiner offers the option of connecting up to two TETRA radios to a common antenna.
- The PRO-ISO-PHY-TETRA-S2 models are available in the 380 - 470 MHz frequency range (on request).
- ETSI-compliant connection of two digital radio devices.
- The PRO-ISO-PHY-TETRA-S2 is the successor to the PRO-ISO-PHY-TETRA-2.
- The PRO-ISO-PHY-TETRA-S2 has improved isolation between the ports - more than 62 dB - and lower insertion loss.
- The use of high-quality system components such as highly selective helical duplex filters and high-performance isolators ensures high isolation and secure communication.
- The smallest and most compact design on the market.
- Suitable for both stationary and mobile use.
- Also available as a tray for 19" installation.
- Vibration and shock-tested in accordance with EN-60068**.
**Tested in accordance with:
Sample test: EN 60068-2-64, test specification: EN 300 019-2-5 V3.0.0.
Shock test: EN 60068-2-27, test specification: EN 300 019-2-5 V3.0.0.
Impact test: EN 60068-2-29, test specification: EN 300 019-2-5 V3.0.0.
