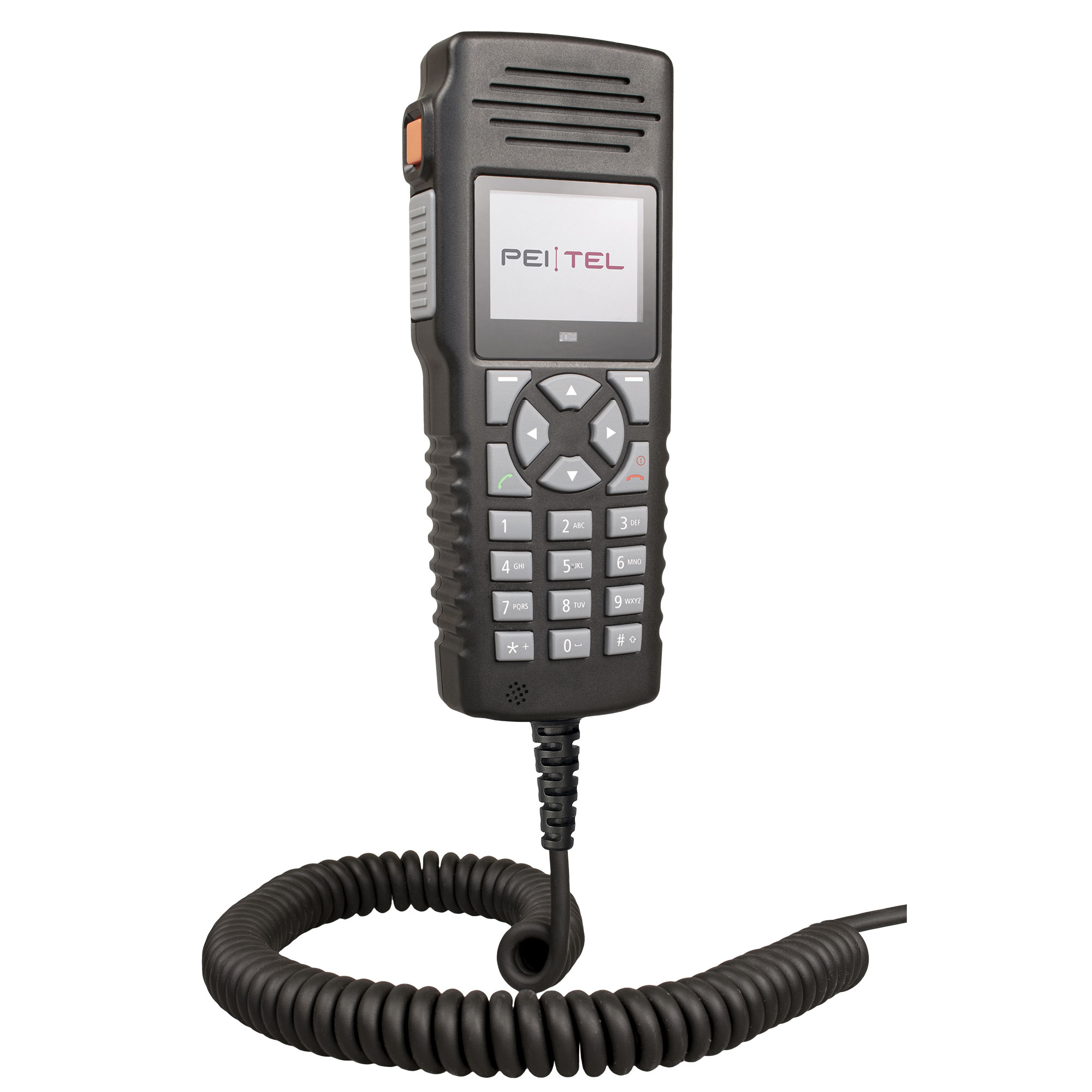

HA40 programmable handset with electret capsule, amplifier, colour display, keyboard, PTT and emergency button, 300mm spiral cord with RJ50 connector
Order number:
01 6540 00210051
Manufacturer number: HA40/SDK/PTT/C6022/RJ50
Product information
Programmable and IP66-protected handset with a PTT button, emergency button, keypad and transflective color display
At a glance
- Protection class: IP66
- Microphone speaker functionality with excellent audio quality thanks to digital signal processing
- Transflective color display (2,0 inch) - optimal readability in bright ambient light
- Large operating voltage range (5 V to 32 V)
- SDK for individual applications in internal flash memory
- Day/night mode (dark mode) can be set automatically or manually
- Side PTT button and emergency button
- Integrated microcontroller (ARM 32-bit Cortex-M4)
- Dynamic earpiece and electret microphone
- Microphone capsule with omnidirectional characteristic
- Proximity sensor for automatic switching between microphone loudspeaker and private mode
- Fonts for additional languages can be installed later (e.g. Greek, Classical, German).Greek, classical Chinese, Cyrillic, etc.)
- Headphone connection
Scope of delivery
- Handset HA40 with spiral cable

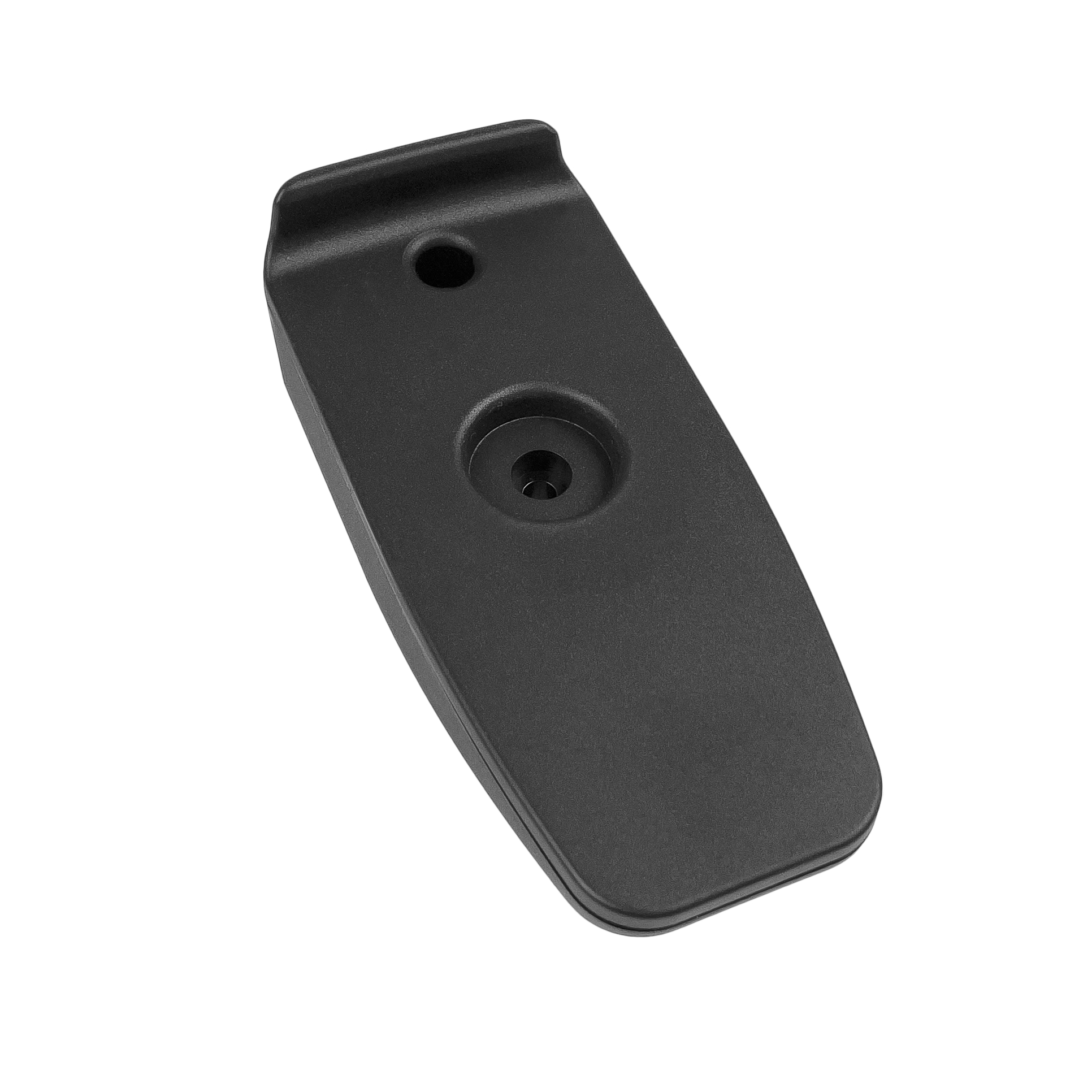

- Wall bracket incl. screws for mounting
Options
