500 m 1⅝” RADIAFLEX® RLK158 cable
fire protection class B2ca s1a d0 a1
View accessories
This cable has a minimum purchase quantity of 4 km in length
RADIAFLEX® acts as a distributed antenna for communication in tunnels, mines and large building complexes and is the solution for any application in confined areas.
Slots in the copper outer conductor allow a controlled portion of the internal RF energy to be radiated into the environment. Conversely, a signal that is transmitted close to the cable is coupled into the slots and transmitted along the entire length of the cable.
RADIAFLEX® is used for both one-way and two-way communication systems, and due to its broadband capability, a single radiating cable can serve multiple communication systems simultaneously.
This RADIAFLEX® radiating cable utilizes a low-loss cellular polyethylene foam dielectric and a smooth copper outer conductor that provides excellent electrical performance along with good bending characteristics.
FEATURES/ADVANTAGES
- Broadband from 30 MHz to 980 MHz
- For applications in tunnels and buildings
- Low variations in coupling loss
Kabelkamp 20
30179 Hannover
Germany
info.emea@rfsworld.com
https://info.rfsworld.com/contact-us
https://www.rfsworld.com
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|

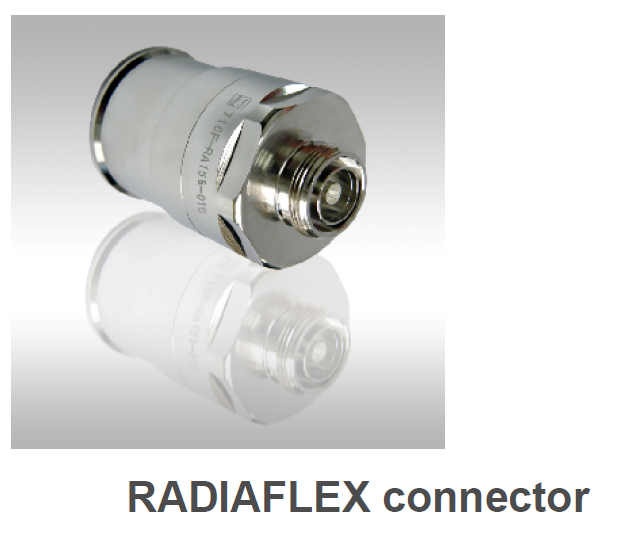

7000 00607400 | 716F-RA158-016 |
7/16 female
|
for RADIAFLEX® 1⅝” cable | Radio Frequency Systems GmbH |
|

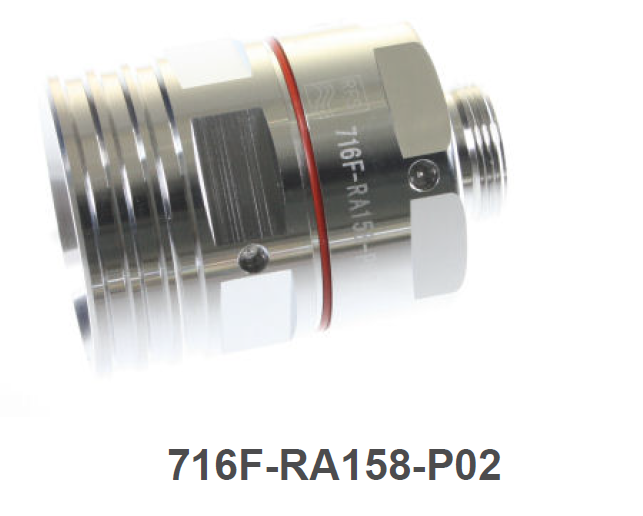

7000 00607500 | 716F-RA158-P02 |
7/16 female premium
|
for RADIAFLEX® 1⅝” cable | Radio Frequency Systems GmbH |
|

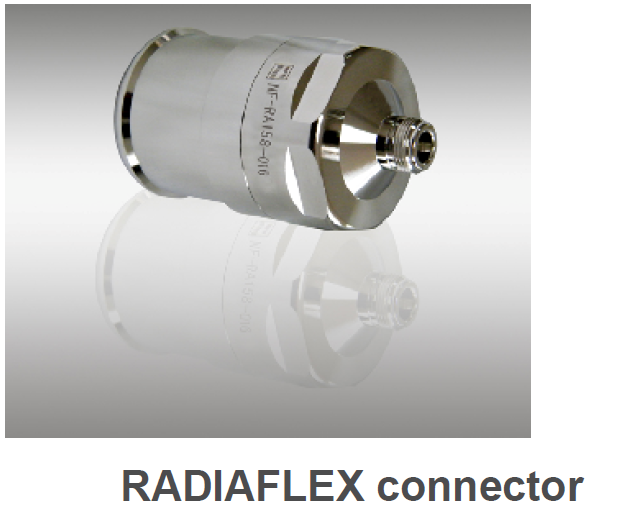

7000 00644200 | NF-RA158-016 |
N female
|
for RADIAFLEX® 1⅝” cable | Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|

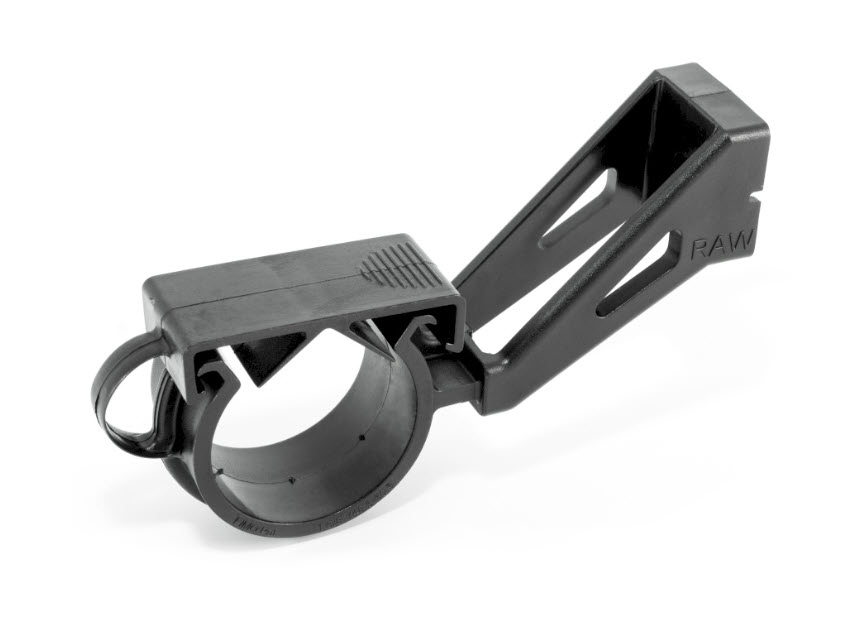

7000 00147200 | 61 5001 0158 |
Clamp RAW 1⅝"
|
50 pieces, 1-piece, 80 mm spacing, for cables with 48.5-50.5 mm Ø | FI.MO.TEC. S.p.A. |
|

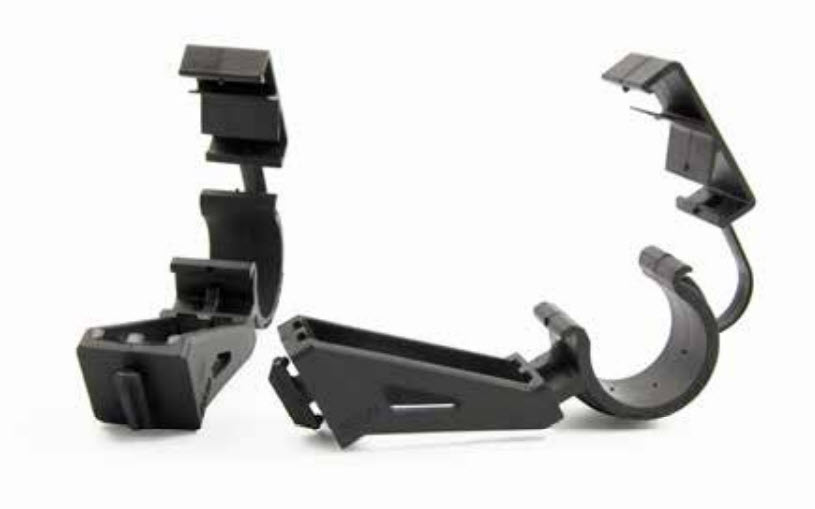

7000 00147800 | 61 5041 0158 |
Clamp RAW-APP 1⅝"
|
50 pieces, 1-piece, 80 mm spacing, for cable tray 11x1.25, 48.5-50.5 mm Ø | FI.MO.TEC. S.p.A. |
|

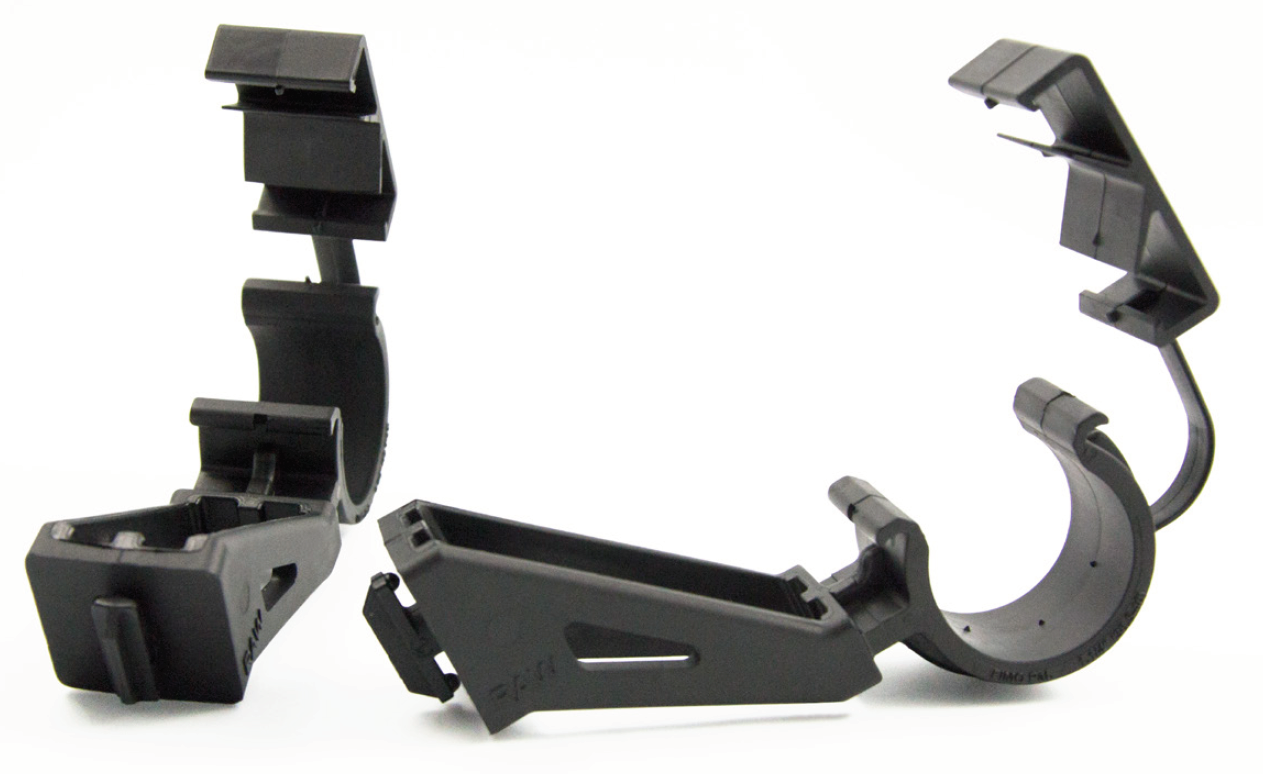

7000 00148400 | 61 5045 0158 |
Clamp RAW-APP 1⅝"
|
50 pieces, 1-piece, 80 mm spacing, for cable tray 7x1.25, 48.5-50.5 mm Ø | FI.MO.TEC. S.p.A. |
|

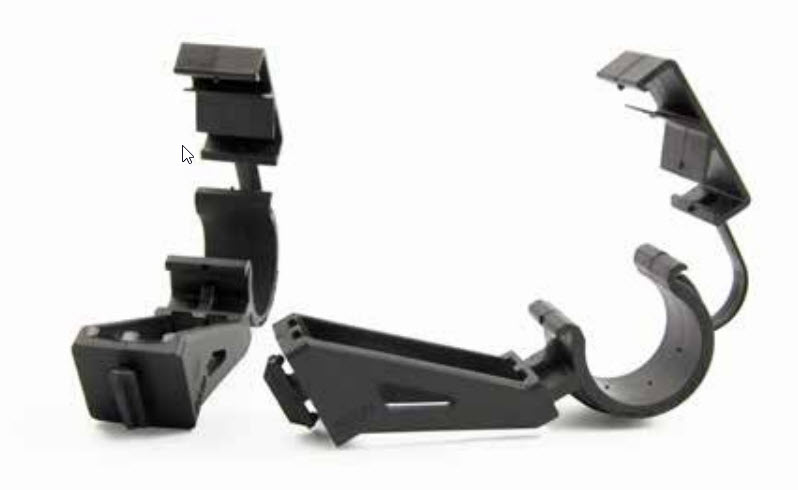

7000 00149000 | 61 5042 0158 |
Clamp RAW-APP 1⅝"
|
50 pieces, 1-piece, 80 mm spacing, for cable tray 9x1.25, 48.5-50.5 mm Ø | FI.MO.TEC. S.p.A. |
|
7000 00149300 | 61 2014 0158 |
Retaining ring RSD
|
25 pieces, for fire-tested installation of 1¼” and 1⅝” cables | FI.MO.TEC. S.p.A. |
|

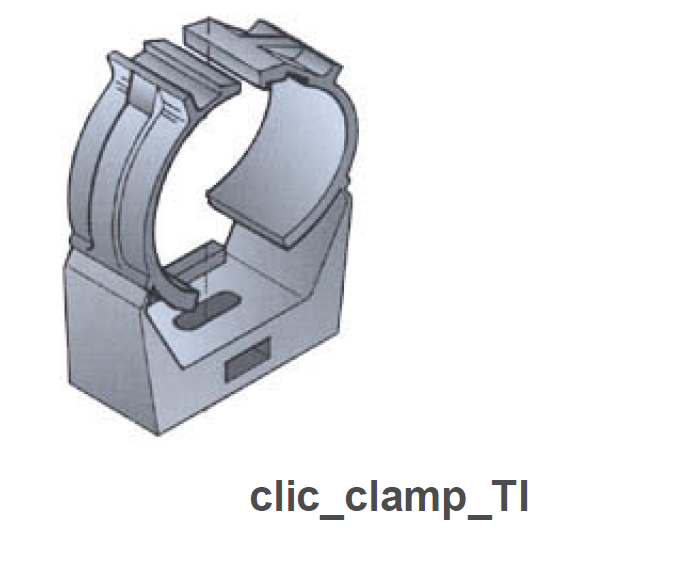

7000 00617700 | CC-158-2 |
Clic clamp
|
for 1⅝" flame-retardant cable | Radio Frequency Systems GmbH |
|
7000 00651901 | RB-80-4 |
Round base
|
10 pieces, 80 mm, flame-retardant | Radio Frequency Systems GmbH |
|

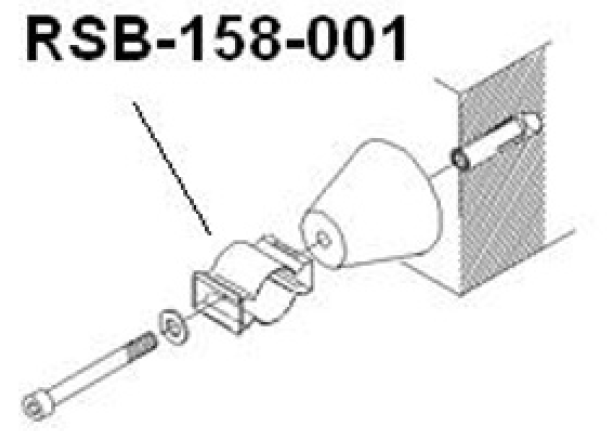

7000 00656200 | RSB-158-001 |
RSB clip
|
10 pieces, made of stainless steel for 1⅝" RLF, RAY, RLK, RLV | Radio Frequency Systems GmbH |
|
7000 00752695 | 61 1572 2158 |
Clamp USC
|
20 pieces, 1⅝", 50-52 mm, for flat, round and angle bars, 2-fold | FI.MO.TEC. S.p.A. |
|
7000 00754510 | 61 2010 0050 |
Metal clamp SCC
|
100 pieces, 1⅝”, fire-tested, for cables with 40-52 mm Ø | FI.MO.TEC. S.p.A. |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|

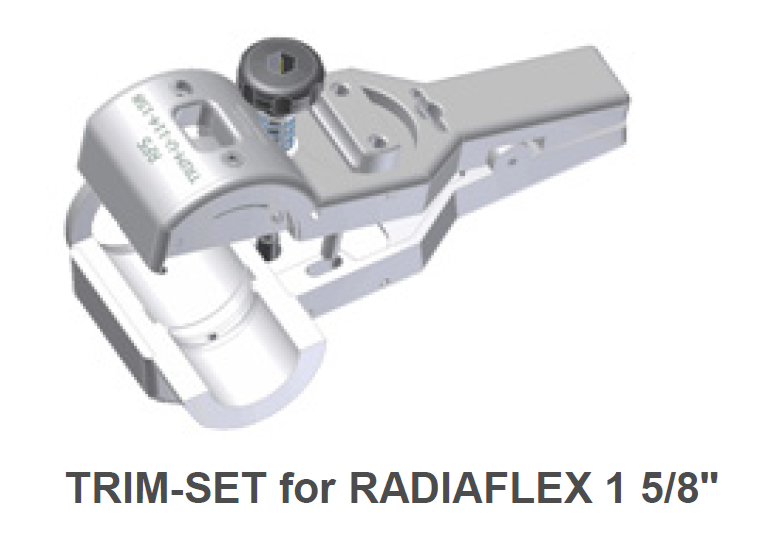

7000 00669200 | TRIM-SET-R158-P02 |
Universal trimming tool
|
for RADIAFLEX® 1⅝“, for fitting P02-type connectors | Radio Frequency Systems GmbH |
