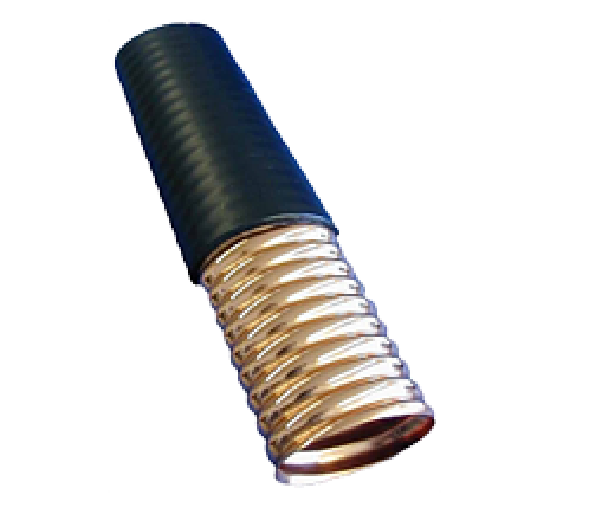

RFS Waveguide with standard jacket, frequency range 7.1-8.5 GHz

Order number: 7000 00625300

Manufacturer number: E78J

Product information

The FLEXWELL® elliptical waveguide is a longitudinally seam-welded, highly conductive copper tube, corrugated and precision-formed into an elliptical cross-section. It is manufactured in continuous lengths using a special seam welding process developed by RFS.

The wave design achieves high transverse stability, flexibility and compressive strength for excellent handling and shaping during installation. The stability and flexibility of the FLEXWELL® waveguide enables a continuous installation from the antenna to the remote transmitter unit.

A FLEXWELL® elliptical waveguide feeder requires less planning and reduces installation costs, compared to a feeder system with a rigid rectangular waveguide.

FEATURES / ADVANTAGES

Designed for optimum system performance
Excellent electrical performance
Low loss and low VSWR (low return loss)
Electrical test, performed on each waveguide during manufacture
Each waveguide is subjected to a 24-hour pressure test
Lower installation costs compared to rigid rectangular waveguides due to flexibility
No need for flange connections, torsion cross-section and bends
Easy transportation in coils or on drums
Cut to exact length and splice in the field

request Product

Data sheet 7000 00625300 (EN)

Article image	Article number	Manufacturer number	Description	Manufacturer

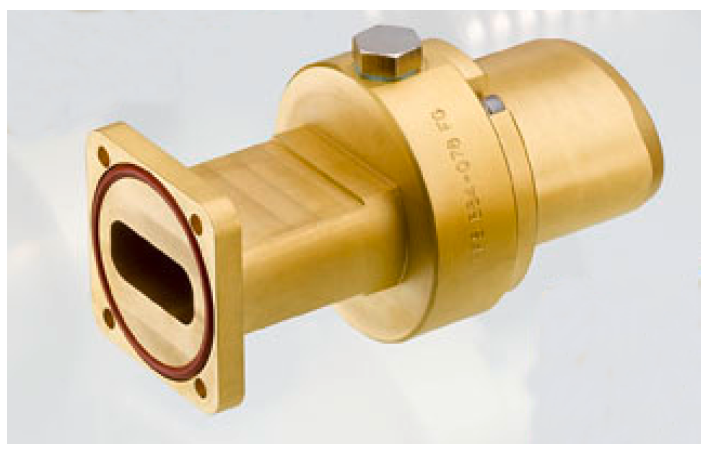

	7000 00621200	B84-078FG	RFS Connector for Waveguide E78 and EP78 IEC-PBR84 flange	Radio Frequency Systems GmbH

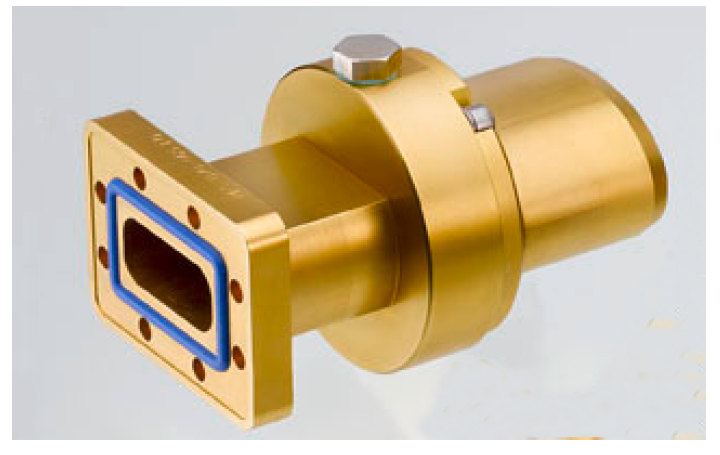

	7000 00621400	D84-078FG	RFS Connector for Waveguide E78 and EP78 IEC-PDR84 flange	Radio Frequency Systems GmbH

Article image	Article number	Manufacturer number	Description	Manufacturer
	7000 00617300	CLAMP-078	RFS 10x cable clamp for E078	Radio Frequency Systems GmbH

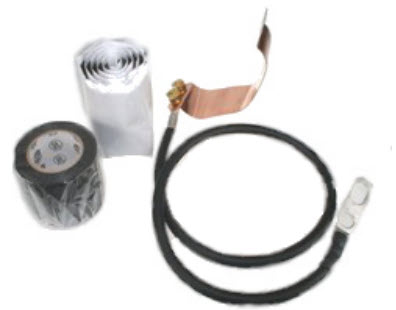

	7000 00754114	GKIT-24-078P	RFS Grounding kit, Premium, for waveguide E78 with 0.6 m 6AWG cable	Radio Frequency Systems GmbH
