RFS Waveguide with standard jacket, frequency range 24.25-26.5 GHz
Order number:
7000 00624601
Manufacturer number: E250J
View accessories
Product information

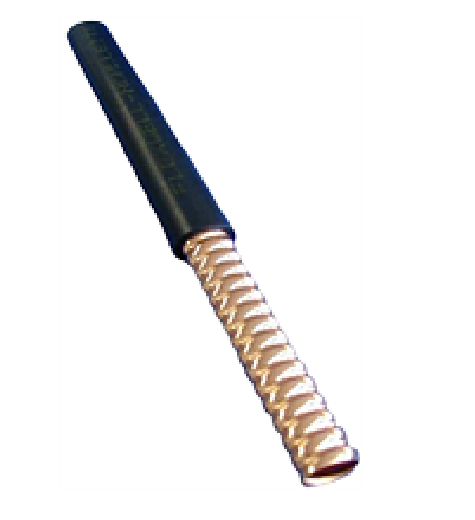

The FLEXWELL® elliptical waveguide is a longitudinally seam-welded, highly conductive copper tube, corrugated and precision-formed into an elliptical cross-section. It is manufactured in continuous lengths using a special seam welding process developed by RFS.
The wave design achieves high transverse stability, flexibility and compressive strength for excellent handling and shaping during installation. The stability and flexibility of the FLEXWELL® waveguide enables a continuous installation from the antenna to the remote transmitter unit.
A FLEXWELL® elliptical waveguide feeder requires less planning and reduces installation costs, compared to a feeder system with a rigid rectangular waveguide.
FEATURES / ADVANTAGES
- Designed for optimum system performance
- Excellent electrical performance
- Low loss and low VSWR (low return loss)
- Electrical test, performed on each waveguide during manufacture
- Each waveguide is subjected to a 24-hour pressure test
- Lower installation costs compared to rigid rectangular waveguides due to flexibility
- No need for flange connections, torsion cross-section and bends
- Easy transportation in coils or on drums
- Cut to exact length and splice in the field
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00620600 | B260-250FP |
RFS Connector for Waveguide E250 IEC-PBR260 flange
|
Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00664100 | TF220-BB1-120M |
RFS TwistFlex 18,0-26,5 GHz, 1200 mm, PBR/PBR220
|
Radio Frequency Systems GmbH |
|
7000 00664300 | TF220-BW1-120M |
RFS TwistFlex 18,0-26,5 GHz, 1200 mm, PBR/UBR220
|
Radio Frequency Systems GmbH |
|
7000 00750764 | TF260-BW1-120M |
RFS TwistFlex 22.0-33.0 GHz, 1200 mm PBR/UBR 260
|
Radio Frequency Systems GmbH |
|
7000 00750765 | TF260-BB1-120M |
RFS TwistFlex 22.0-33.0 GHz, 1200 mm PBR/PBR 260
|
Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00661200 | SHIM260-B-1 |
RFS Shim for PBR260 made of beryllium copper
|
Radio Frequency Systems GmbH |
