Product information

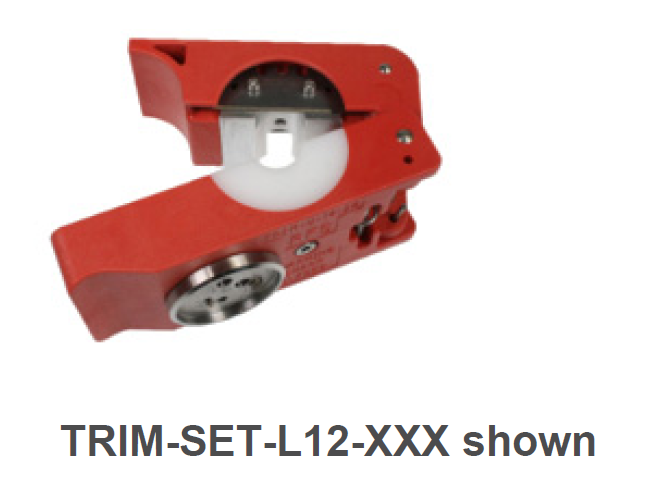

This special trimming tool improves cable preparation before attaching the connector. No other tools are required to prepare the cable for attaching the connector. This is due to the unique design of the trimming tool, which combines all the necessary functions in one tool. It can be used for CELLFLEX® LCF12-50 foam dielectric cables in combination with the OMNI FIT Premium connector family C02 and B32.

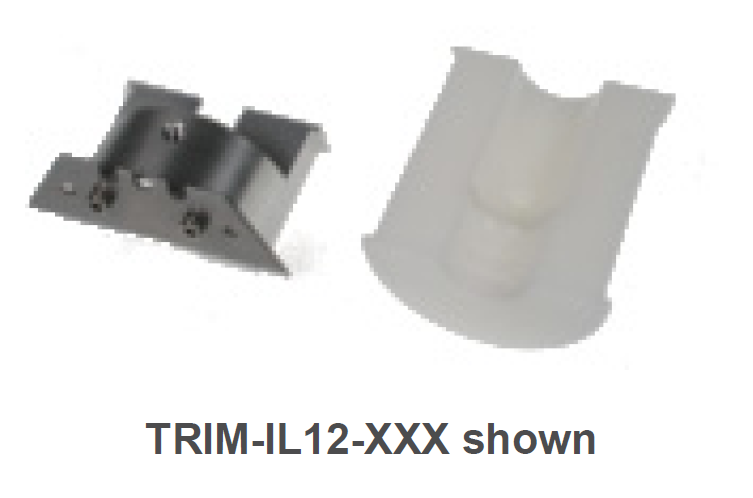

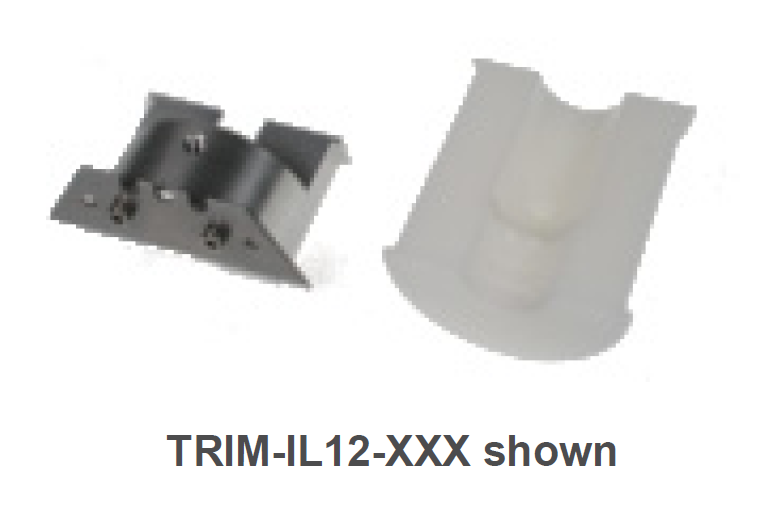

The universal trimming tool series offers the additional advantage that it can be converted to different connector families and cable sizes (1/4", 3/8", 1/2" and 7/8") just by changing the insert. Various inserts are optionally available.



FEATURES/ADVANTAGES


  • Universal cutting tool concept
  • One basic tool can be used for cables of sizes 1/4", 3/8", 1/2" and 7/8" only by changing the insert
  • Precision cable preparation tool
  • Always accurate and repeatable trimming dimensions
  • Intuitive use of the tool
  • Easy and precise preparation of cables for connector installation
  • Long-life cutting blades
  • Easy to clean, smooth dielectric surface improves IM performance



request Product

Article image Article number Manufacturer number Description Manufacturer

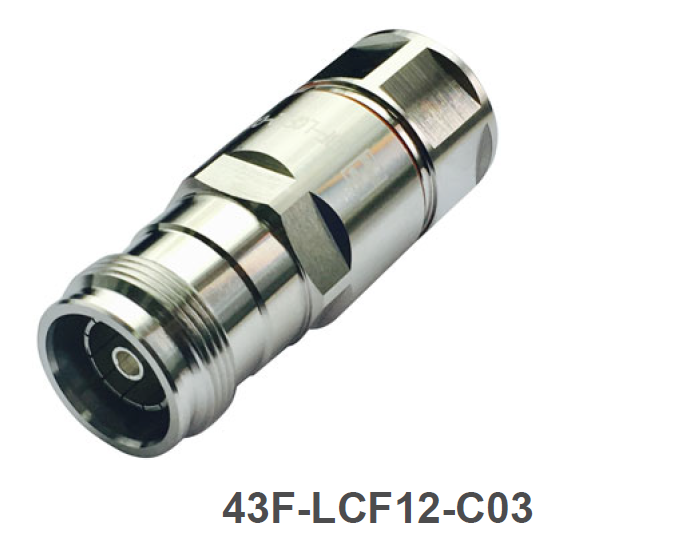

7000 00598800 43F-LCF12-C03
RFS 4.3-10 coupler OMNI FIT™ Standard C03 family for LCF12-50 cable
Radio Frequency Systems GmbH

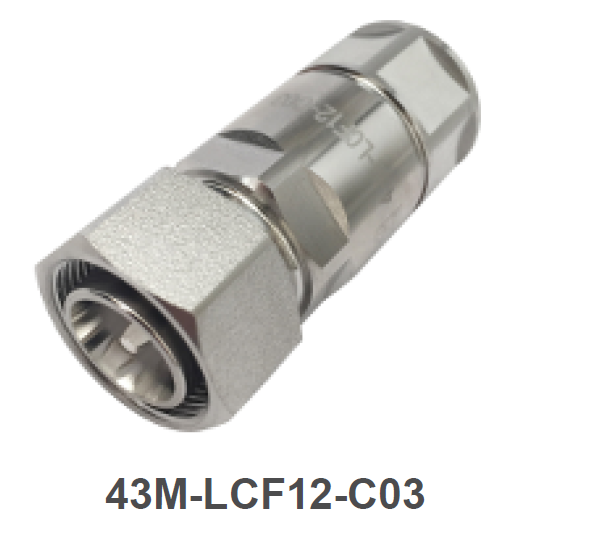

7000 00599700 43M-LCF12-C03
RFS 4.3-10 connector OMNI FIT™ Standard C03 family for LCF12-50 cable
Radio Frequency Systems GmbH

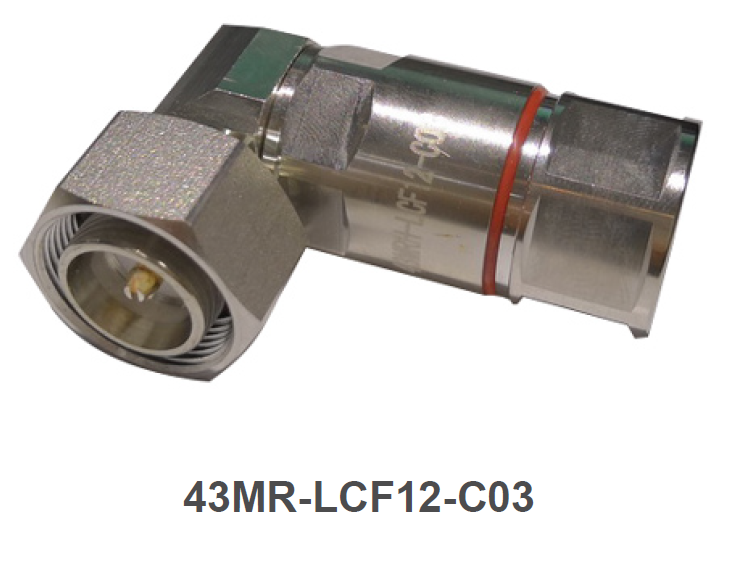

7000 00600400 43MR-LCF12-C03
RFS 4.3-10 right-angle connector OMNI FIT™ Standard C03 family for LCF12-50 cable
Radio Frequency Systems GmbH

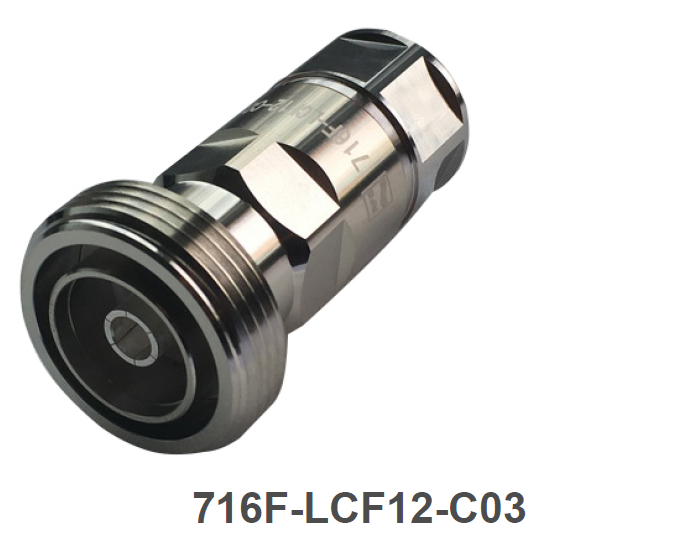

7000 00606300 716F-LCF12-C03
RFS DIN-7/16 coupler OMNI FIT™ Standard C03 family for LCF12 cable
Radio Frequency Systems GmbH

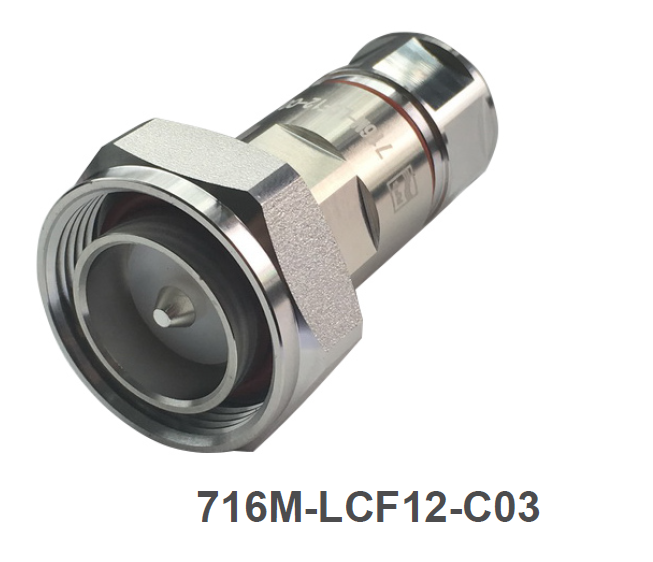

7000 00608500 716M-LCF12-C03
RFS DIN-7/16 connector OMNI FIT™ Standard C03 family for LCF12 cable
Radio Frequency Systems GmbH
7000 00750859 LCF12-50J
RFS 100 m 1/2" standard coaxial cable, in box
Radio Frequency Systems GmbH
7000 00750860 LCF12-50JFN
RFS 100 m 1/2" standard coaxial cable, flame-retardant, fire protection class B2ca s1a d0 a1, in box
Radio Frequency Systems GmbH
7000 00753188 LCF12-50JFN-B2
RFS 1/2" standard coaxial cable, flame-retardant, fire protection class B2ca s1a d0 a1
Radio Frequency Systems GmbH
7000 00753192 LCF12-50JFN-B2
RFS 500 m 1/2" standard coaxial cable, flame-retardant, fire protection class B2ca s1a d0 a1, on standard reel
Radio Frequency Systems GmbH
7000 00753245 LCF12-50J-DE
RFS 2x 500 m 1/2" standard coaxial cable, on standard reel
Radio Frequency Systems GmbH
7000 00753623 RSF12-50JFL
RFS 1/2" RADIAFLEX®, frequency range 75-6000 MHz, fire protection class Cca s1a d2 a1
Radio Frequency Systems GmbH
7000 00643400 NF-LCF12-C03
RFS N coupler OMNI FIT™ Standard C03 family for LCF12 cable
Radio Frequency Systems GmbH

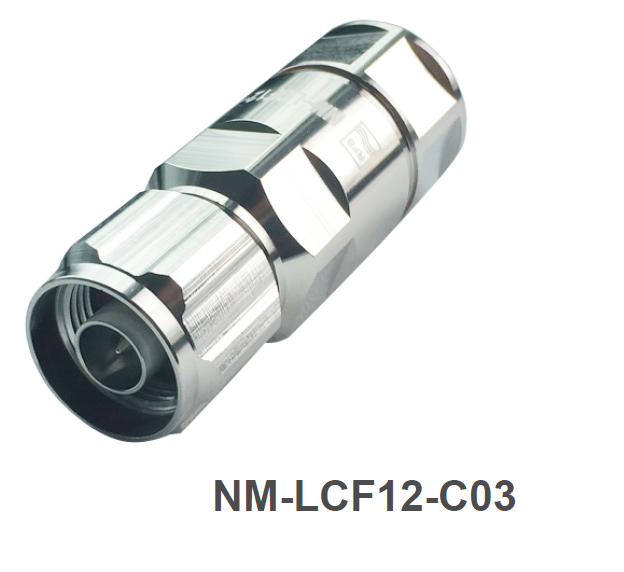

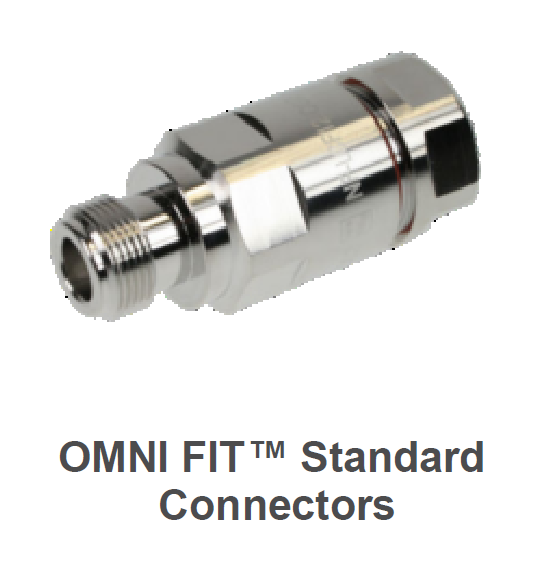

7000 00645200 NM-LCF12-C03
RFS N connector OMNI FIT™ Standard C03 family for LCF12 cable
Radio Frequency Systems GmbH
7000 00750826 LCF12-50J
RFS 300 m 1/2" standard coaxial cable, on standard reel
Radio Frequency Systems GmbH
7000 00750827 LCF12-50J
RFS 500 m 1/2" standard coaxial cable, on standard reel
Radio Frequency Systems GmbH
7000 00750828 LCF12-50JFN
RFS 300 m 1/2" standard coaxial cable, flame-retardant, fire protection class B2ca s1a d0 a1, on standard reel
Radio Frequency Systems GmbH
7000 00750829 LCF12-50JFN
RFS 500 m 1/2" standard coaxial cable, flame-retardant, fire protection class B2ca s1a d0 a1, on standard reel
Radio Frequency Systems GmbH
7000 00757854 RCF12-50JFN-1000M
RFS 1000 m RCF 1/2" RADIAFLEX® cable, fire protection class Cca s1a d2 a1
Radio Frequency Systems GmbH
