RFS Universal trimming tool for SCF38 for mounting connector types -D01/-E01, -070, -072
Order number:
7000 00669000
Manufacturer number: TRIM-SET-S38-D01
View accessories
View compatible articles
Product information
This special trimming tool improves cable preparation before attaching the connector. No other tools are required to prepare the cable for attaching the connector. This is due to the unique design of the trimming tool, which combines all the necessary functions in one tool. It can be used for all CELLFLEX® SCF38-50 foam dielectric cables in combination with the OMNI FIT Premium connector family D01 and the RAPID FIT families 070/072.
The universal trimming tool series offers the additional advantage of being convertible to different connector families and cable sizes (1/4", 3/8", 1/2" and 7/8") by simply changing the insert. Various inserts are available as optional items.
FEATURES/ADVANTAGES
- Universal cutting tool concept
- One basic tool can be used for cables of sizes 1/4", 3/8", 1/2" and 7/8" only by changing the insert
- Precision cable preparation tool
- Always accurate and repeatable trimming dimensions
- Intuitive use of the tool
- Easy and precise preparation of cables for connector installation
- Long-life cutting blades
- Easy to clean, smooth dielectric surface improves IM performance
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00652400 | TRIM-B30 |
RFS Spare blades for Stripping Tool 1/4"-7/8", 3 main blades
|
Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00757838 | SCF38-50JFN-1-500 |
RFS 500m 3/8" coaxial cable, super flexible, flame-retardant, fire protection class B2ca s1a d0 a1
|
Radio Frequency Systems GmbH |
|

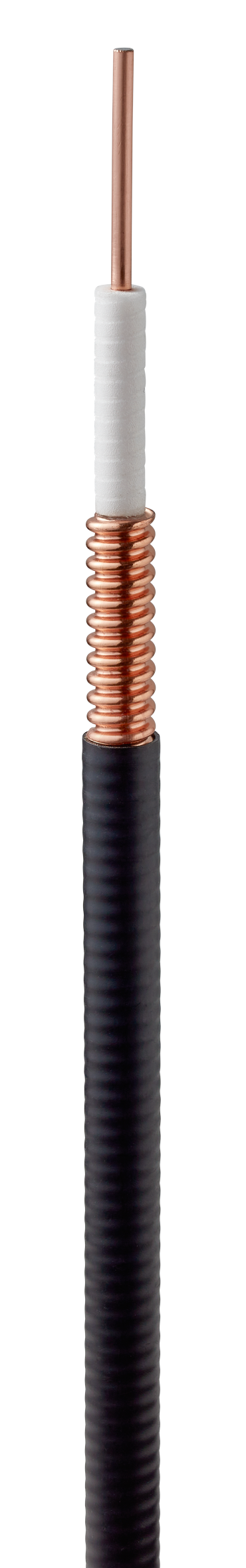

7000 00757837 | SCF38-50J-1-500 |
RFS 500m 3/8" coaxial cable, super flexible
|
Radio Frequency Systems GmbH |
