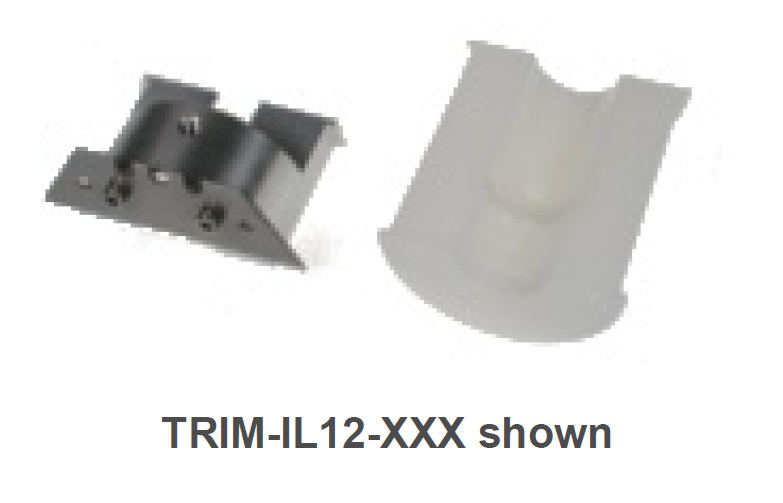

RFS Tool insert 7/8" for connector types -D01, -060, -062, -070, -072
View compatible articles
This is an insert for use with the RFS universal trim tool for preparing cables LCF78-50J for the installation of connectors according to OMNI FIT-Premium D01.
This special trim tool improves cable preparation before attaching connectors. No other tools are required to prepare the cable for connector attachment. This is due to the unique design of the trimming tool, which combines all the necessary functions in one tool.
It can be used for all CELLFLEX® LCF78-50 foam dielectric cables in combination with OMNI FIT Premium connector families D01.
The universal trimming tool series offers the added benefit of being convertible to different connector families and cable sizes (1/4", 3/8", 1/2" and 7/8") just by changing the insert. Various inserts are available as optional items.
FEATURES/ADVANTAGES
- Universal cutting tool concept
- One basic tool can be used for cables of sizes 1/4", 3/8", 1/2" and 7/8" only by changing the insert
- Precision cable preparation tool
- Always exact and repeatable trim dimensions
- Intuitive use of the tool
- Easy and precise preparation of cables for connector installation.
- Durable cutting blades
- Easy-to-clean, smooth dielectric surface improves IM performance
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00668400 | TRIM-SET-L78-C02 |
RFS Universal trimming tool for LCF78 for mounting connector types -C02
|
Radio Frequency Systems GmbH |
|
7000 00668500 | TRIM-SET-L78-D01 |
RFS Universal trimming tool for LCF78 for mounting connector types -D01/-E01
|
Radio Frequency Systems GmbH |
|
7000 00750824 | LCF78-50JA |
RFS 300 m 7/8" standard coaxial cable, on standard reel
|
Radio Frequency Systems GmbH |
|
7000 00750825 | LCF78-50JA |
RFS 500 m 7/8" standard coaxial cable, on standard reel
|
Radio Frequency Systems GmbH |
