RFS Tool insert 7/8" for connector types -C02 and -B32
View compatible articles

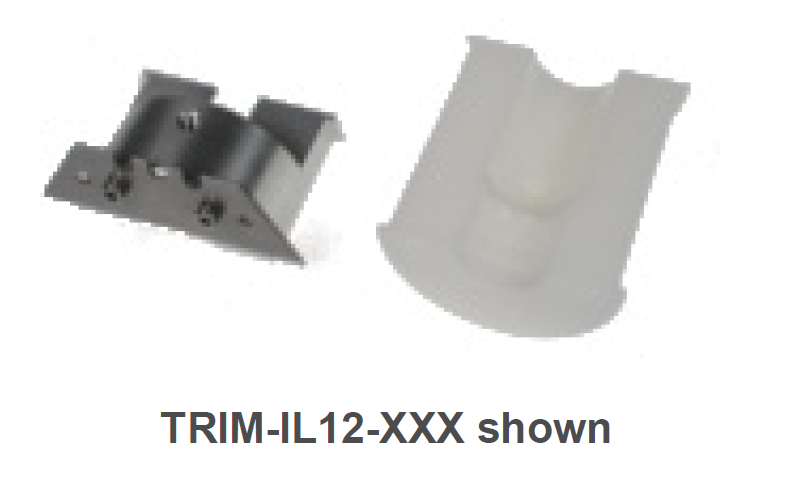

This is an insert for use with the RFS Universal Trim Tool for Preparing Cables LCF78-50J for Installing Connectors OMNI FIT Standard C02.
This special trim tool improves cable preparation prior to attaching connectors. No other tools are required to prepare the cable for connector attachment. This is due to the unique design of the trimming tool, which combines all the necessary functions in one tool.
It can be used for all CELLFLEX® LCF78-50 foam dielectric cables in combination with the OMNI FIT standard connector families C02 and B32.
The universal trimming tool series offers the added benefit of being convertible to different connector families and cable sizes (1/4", 3/8", 1/2" and 7/8") just by changing the insert. Various inserts are available as optional items, see below for references or contact your RFS sales contact.
FEATURES/ADVANTAGES
- Universal cutting tool concept
- One basic tool can be used for 1/4", 3/8", 1/2" and 7/8" only by changing the insert
- Precision cable preparation tool
- Always accurate and repeatable trimming dimensions
- Intuitive use of the tool
- Easy and precise preparation of cables for connector installation.
- Durable cutting blades
- Easy-to-clean, smooth dielectric surface improves IM performance
