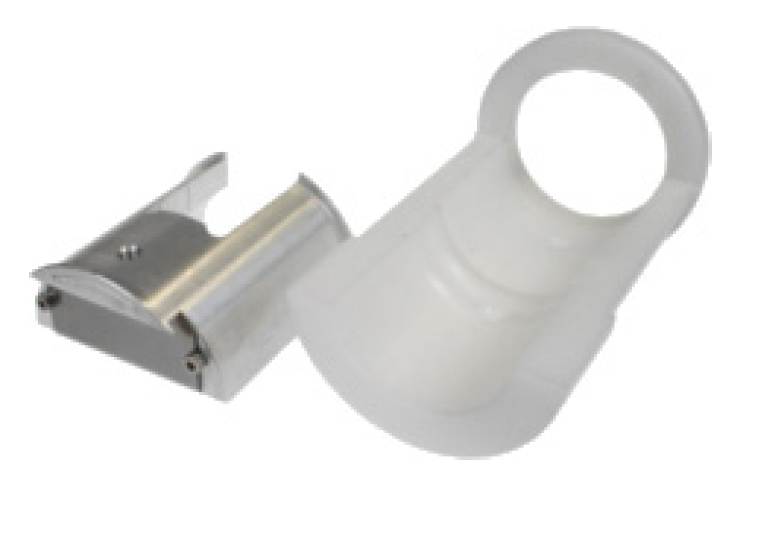

RFS Tool insert 1 5/8" for connector types -C02
This is an insert for use with the RFS Universal Trim Tool for the installation of OMNI FIT™ C02 family standard connectors on all LCF158-50* cables.
The special trim tool improves cable preparation prior to attaching the connector. No additional tools are required to prepare the cable for connector attachment. This is due to the unique design of the universal trimming tool, which combines all the necessary functions in one tool.

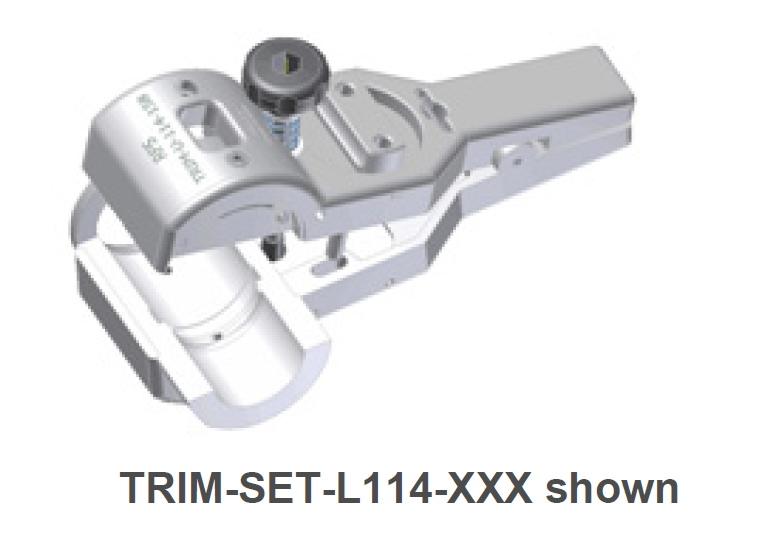

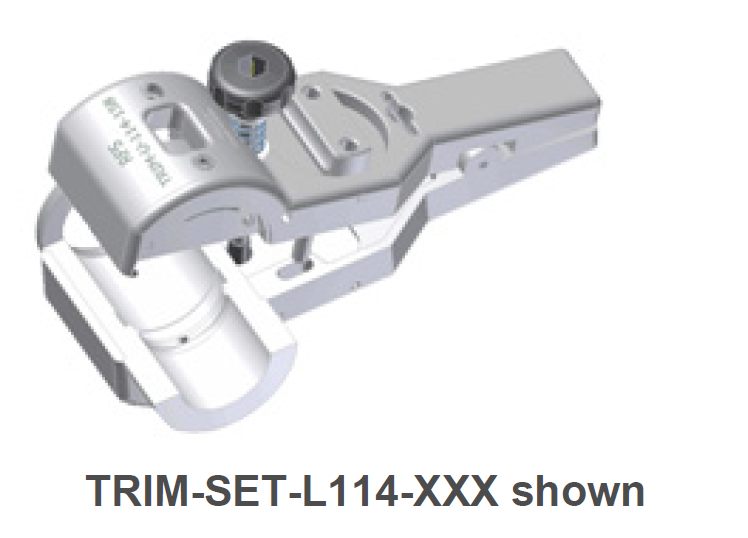

The universal trimming tool is always supplied with a pre-equipped insert (TRIM-SET-L***-*** for CELLFLEX® cables and TRIM-SET-R***-*** for RADIAFLEX® cables). This special trimming tool series offers the additional advantage that it can be converted to different connector families and cable types and sizes (CELLFLEX® cable and RADIAFLEX® cable 1 1/4" and 1 5/8") simply by changing the inserts. Different inserts are optionally available.
FEATURES / ADVANTAGES
- Universal cutting tool concept
- A basic tool can be used for cable sizes 1 1/4"" and 1 5/8"" only by changing the insert
- Precision cable preparation tool
- Always exact and repeatable trimming dimensions.
- Intuitive use of the tool
- Easy and precise preparation of cables for connector installation.
- Durable cutting blades
- Easy-to-clean, smooth dielectric surface improves IM performance.
