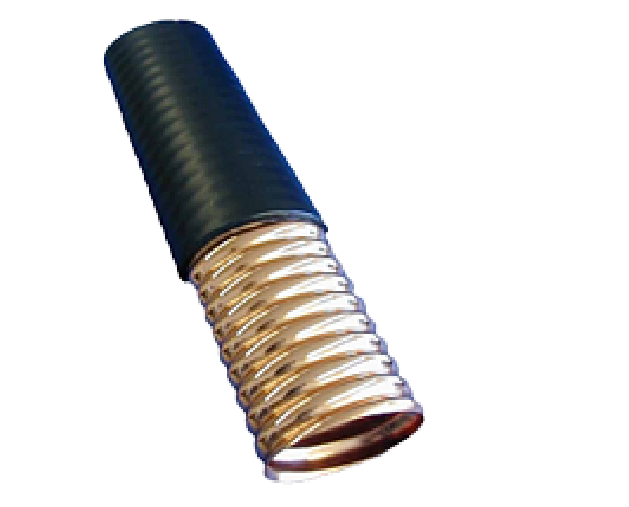

RFS Premium waveguide with standard jacket, frequency range 7.1-8.5 GHz
Order number:
7000 00627300
Manufacturer number: EP78J
View accessories
Product information
The elliptical waveguide FLEXWELL® is a longitudinally welded, highly conductive copper tube, corrugated and precision-formed to an elliptical cross-section. It is manufactured in continuous lengths using a special seam welding process developed by RFS.
The wave design achieves high transverse stability, flexibility and compressive strength for excellent handling and shaping during installation. The stability and flexibility of the FLEXWELL® waveguide enables a continuous installation from the antenna to the remote transmitter unit.
A FLEXWELL® elliptical waveguide feeder requires less planning and reduces installation costs, compared to a feeder system with a rigid rectangular waveguide.
FEATURES/ADVANTAGES
- Designed for optimum system performance
- Excellent electrical performance
- Low loss and low VSWR (low return loss)
- Electrical test, performed on each waveguide during manufacture
- Each waveguide is subjected to a 24-hour pressure test
- Lower installation costs compared to rigid rectangular waveguides due to flexibility
- No need for flange connections, torsion cross-section and bends
- Easy transportation in coils or on drums
- Cut to exact length and splice in the field
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00650200 | PW070-DV-1 |

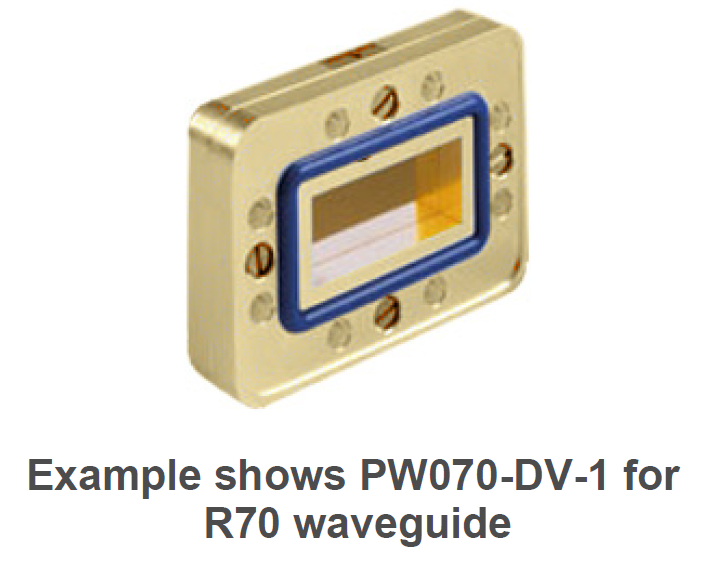

RFS Pressure window PDR/UDR70
|
Radio Frequency Systems GmbH |
|
7000 00650300 | PW070-V-1 |

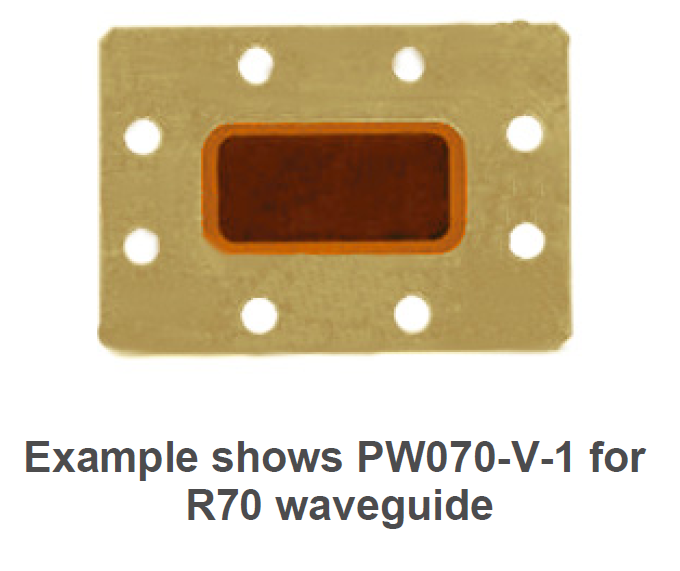

RFS Pressure window UDR70
|
Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00621200 | B84-078FG |

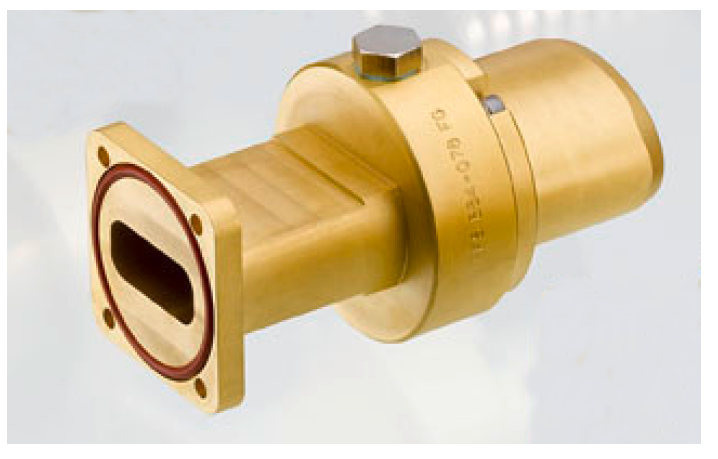

RFS Connector for Waveguide E78 and EP78 IEC-PBR84 flange
|
Radio Frequency Systems GmbH |
|
7000 00621400 | D84-078FG |

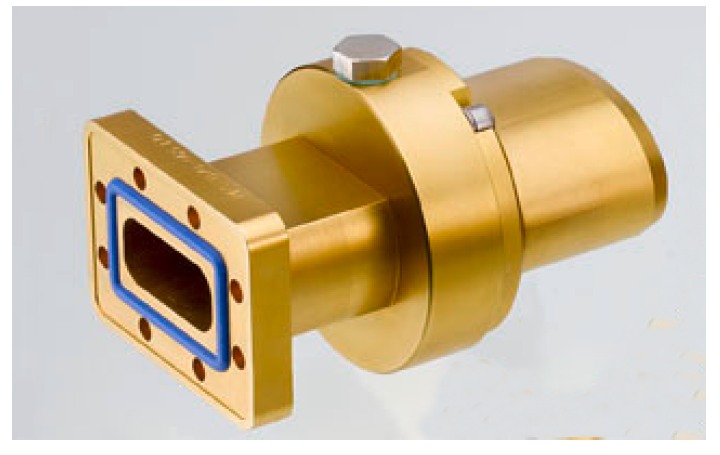

RFS Connector for Waveguide E78 and EP78 IEC-PDR84 flange
|
Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00754114 | GKIT-24-078P |

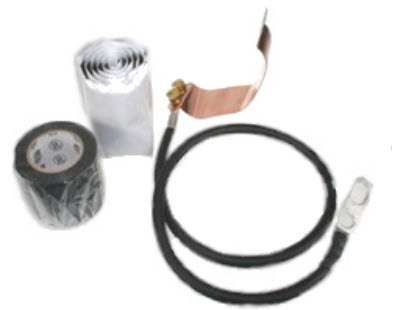

RFS Grounding kit, Premium, for waveguide E78 with 0.6 m 6AWG cable
|
Radio Frequency Systems GmbH |
|
7000 00633200 | HOIST1-114L |

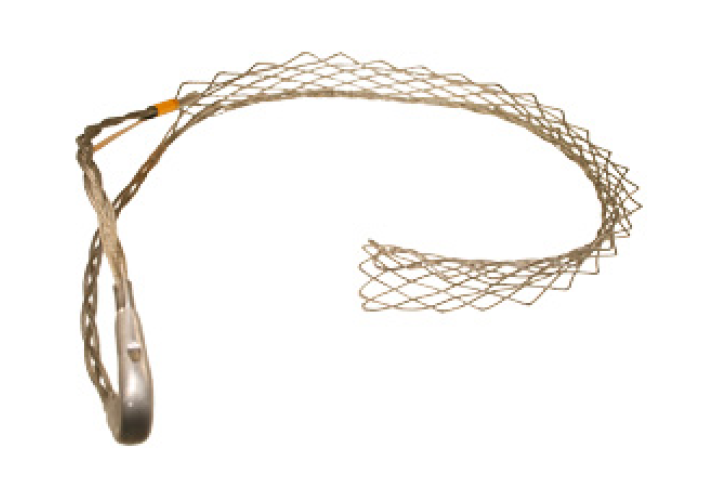

RFS Hoisting grip open UCF, LCFS114, HCA118, E70, E78, EO15
|
Radio Frequency Systems GmbH |
|
7000 00617300 | CLAMP-078 |
RFS 10x cable clamp for E078
|
Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00750745 | TF070-DV1-060M |

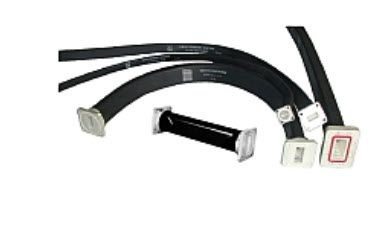

RFS TwistFlex 5.85-8.2 GHz, 600 mm, PDR/UDR70
|
Radio Frequency Systems GmbH |
|
7000 00750746 | TF070-DV1-090M |

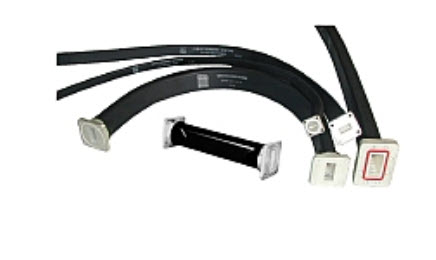

RFS TwistFlex 5.85-8.2 GHz, 900 mm PDR/UDR 70
|
Radio Frequency Systems GmbH |
|
7000 00750747 | TF070-DV1-120M |

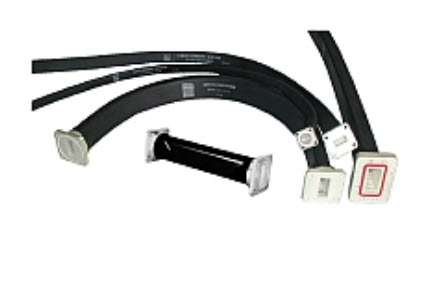

RFS TwistFlex 5.85-8.2 GHz, 1200 mm PDR/UDR 70
|
Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00660500 | SHIM070-D-1 |

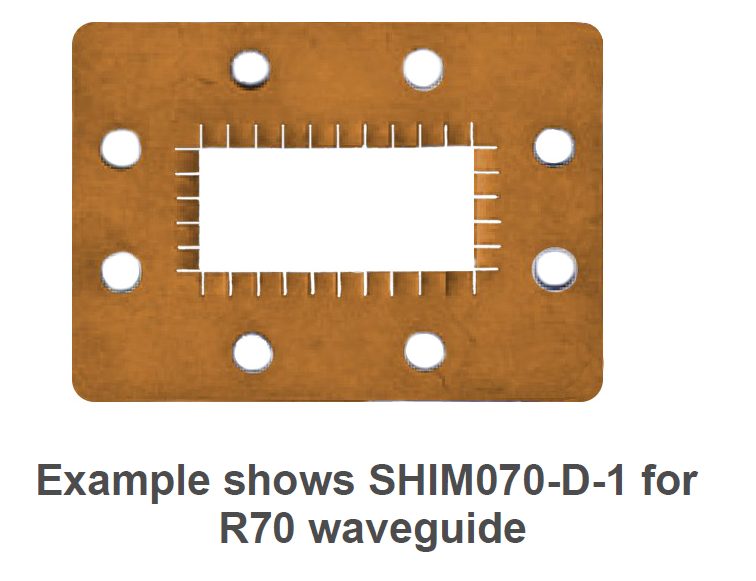

RFS Shim for PDR70 made of beryllium copper
|
Radio Frequency Systems GmbH |
