RFS Premium waveguide with standard jacket, frequency range 5.9-7.125 GHz
Order number:
7000 00627101
Manufacturer number: EP65J
View accessories
Product information
The elliptical waveguide FLEXWELL® is a longitudinally welded, highly conductive copper tube, corrugated and precision-formed to an elliptical cross-section. It is manufactured in continuous lengths using a special seam welding process developed by RFS.
The wave design achieves high transverse stability, flexibility and compressive strength for excellent handling and shaping during installation. The stability and flexibility of the FLEXWELL® waveguide enables a continuous installation from the antenna to the remote transmitter unit.
A FLEXWELL® elliptical waveguide feeder requires less planning and reduces installation costs, compared to a feeder system with a rigid rectangular waveguide.
FEATURES / ADVANTAGES
- Designed for optimum system performance
- Excellent electrical performance
- Low loss and low VSWR (low return loss)
- Electrical test, performed on each waveguide during manufacture
- Each waveguide is subjected to a 24-hour pressure test
- Lower installation costs compared to rigid rectangular waveguides due to flexibility
- No need for flange connections, torsion cross-section and bends
- Easy transportation in coils or on drums
- Cut to exact length and splice in the field
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00619200 | D70-065FG |

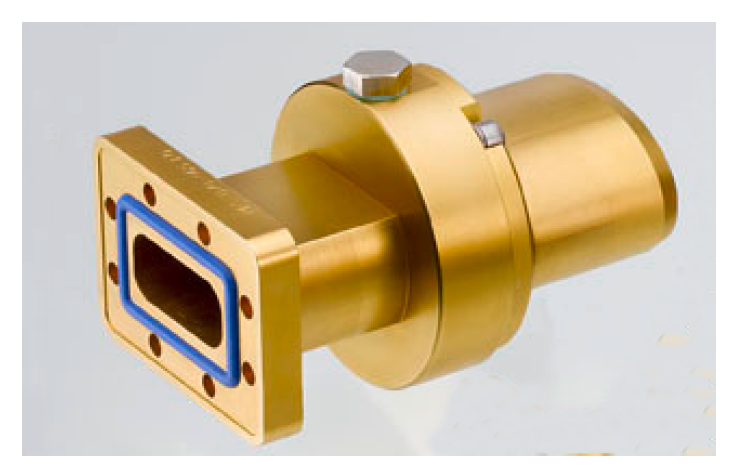

RFS Connector for waveguide E65 EP65 and E65JFN IEC-PDR70 flange
|
Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00586100 | CLAMP-114 |
RFS 10x cable clamp for E114
|
Radio Frequency Systems GmbH |
|
7000 00633500 | HOIST1-158L |
RFS Hoisting grip open LCF, HCA158, E58, E60, E65, EO11
|
Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00750745 | TF070-DV1-060M |
RFS TwistFlex 5.85-8.2 GHz, 600 mm, PDR/UDR70
|
Radio Frequency Systems GmbH |
|
7000 00750746 | TF070-DV1-090M |
RFS TwistFlex 5.85-8.2 GHz, 900 mm PDR/UDR 70
|
Radio Frequency Systems GmbH |
|
7000 00750747 | TF070-DV1-120M |
RFS TwistFlex 5.85-8.2 GHz, 1200 mm PDR/UDR 70
|
Radio Frequency Systems GmbH |
