RFS Premium waveguide with standard jacket, frequency range 13.4-15.35 GHz
Order number:
7000 00626600
Manufacturer number: EP150J
View accessories
Product information

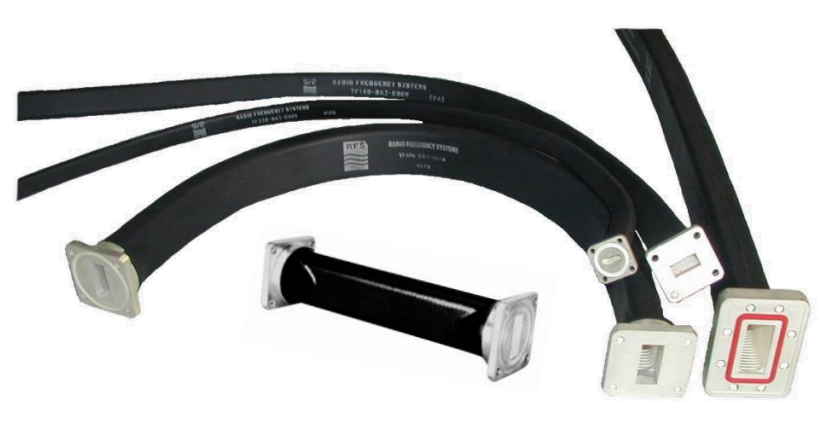

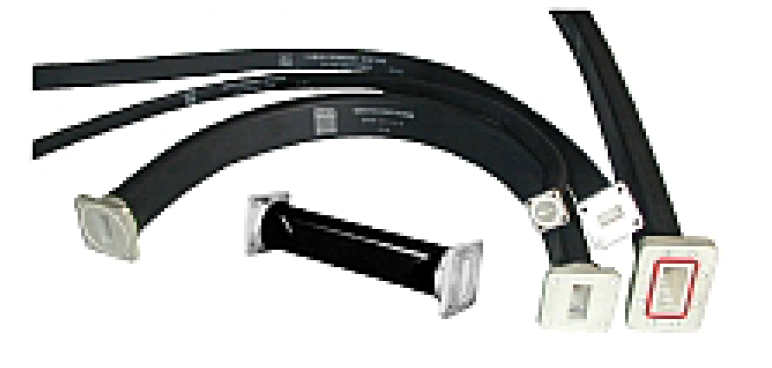

The elliptical waveguide FLEXWELL® is a longitudinally welded, highly conductive copper tube, corrugated and precision-formed to an elliptical cross-section. It is manufactured in continuous lengths using a special seam welding process developed by RFS.
The wave design achieves high transverse stability, flexibility and compressive strength for excellent handling and shaping during installation. The stability and flexibility of the FLEXWELL® waveguide enables a continuous installation from the antenna to the remote transmitter unit.
A FLEXWELL® elliptical waveguide feeder requires less planning and reduces installation costs, compared to a feeder system with a rigid rectangular waveguide.
FEATURES / ADVANTAGES
- Designed for optimum system performance
- Excellent electrical performance
- Low loss and low VSWR (low return loss)
- Electrical test, performed on each waveguide during manufacture
- Each waveguide is subjected to a 24-hour pressure test
- Lower installation costs compared to rigid rectangular waveguides due to flexibility
- No need for flange connections, torsion cross-section and bends
- Easy transportation in coils or on drums
- Cut to exact length and splice in the field
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00620100 | D140-150FP |

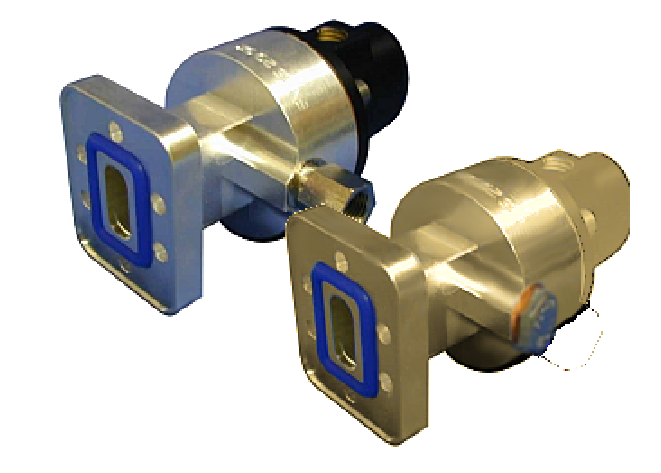

RFS Connector for Waveguide E150 and EP150 IEC-PDR140 flange
|
Radio Frequency Systems GmbH |
|
7000 00619900 | B140-150FP |

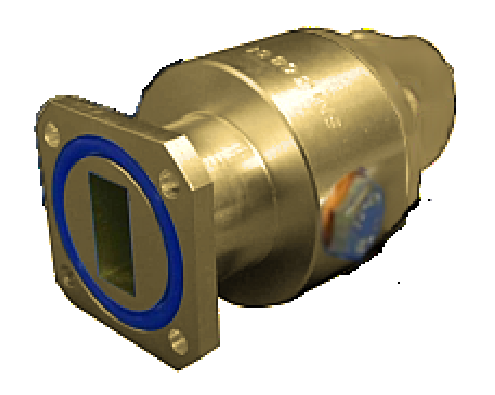

RFS Connector for Waveguide E150 and EP150 IEC-PBR140 flange
|
Radio Frequency Systems GmbH |
|
7000 00619800 | B120-150FP |

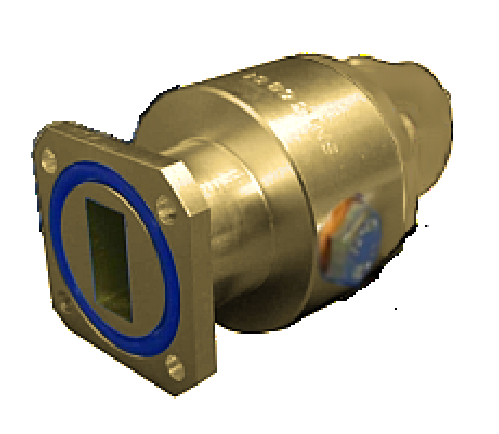

RFS Connector for Waveguide E150 and EP150 IEC-PBR120 flange
|
Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00628000 | FDIE-C150 |

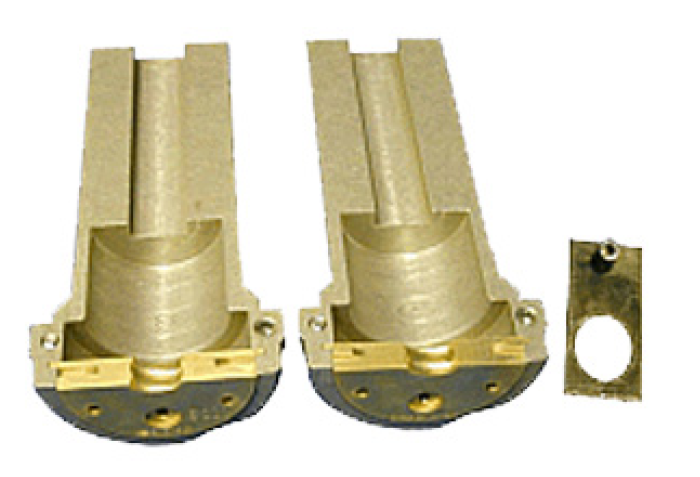

RFS Flanging insert for waveguide E150
|
Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00661100 | SHIM140-B-1 |

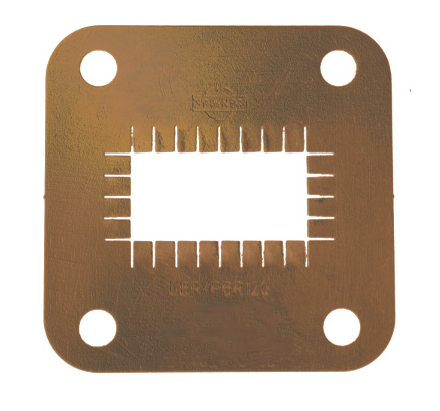

RFS Shim for UBR140 made of beryllium copper
|
Radio Frequency Systems GmbH |
|
7000 00753087 | DC-KIT-B |

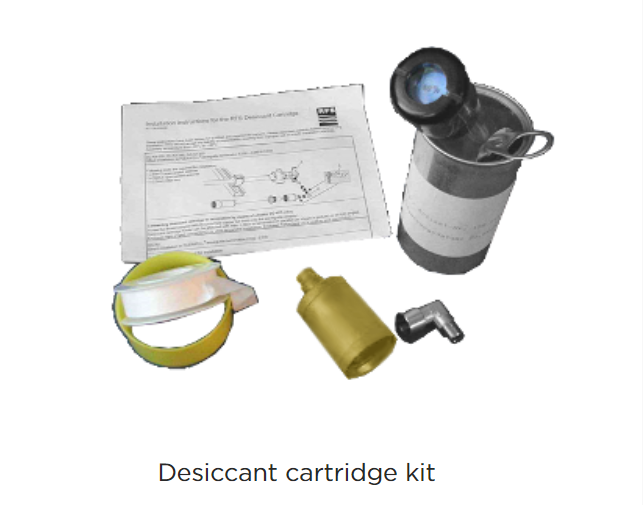

RFS Desiccant cartridge kit for E100-E220
|
Radio Frequency Systems GmbH |
