Product information

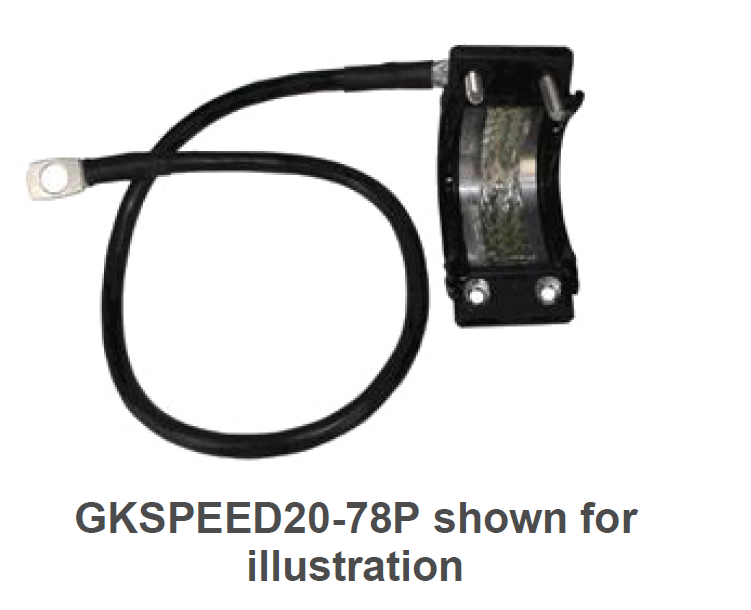

This grounding kit was developed by RFS for the CELLFLEX® cable series. The housing of the grounding kit facilitates proper attachment to the coaxial cable and ensures that the performance of the coaxial cable is not compromised. The tinned copper braid provides a secure, low impedance contact to the outside of the cable. Conductor. Installation only takes a few minutes. No additional sealing with mastic and electrical tape required.



FEATURES/ADVANTAGES


  • Compatible with copper and aluminum cable types, i.e. one grounding kit for both outer conductor materials eliminates the risk of incorrect installation of the grounding kit and helps to keep stock levels low.
  • This kit has been tested by independent laboratories to withstand the damaging effects of a lightning current in excess of 100kA 10/350µs in accordance with EN 50164. The copper wire provides the most practical and effective low inductance transmission of lightning induced current to earth.
  • No effect on the electrical transmission characteristics of the coaxial cable.
  • Rugged mechanical construction.
  • UV-resistant in accordance with DIN EN ISO 4892-2 (Plastics - Methods of exposure to laboratory light sources - Part 2 Xenon arc lamps).
  • Ozone-resistant in accordance with DIN 53509 (Testing of rubber - Determination of resistance to ozone cracking).
  • RoHS-compliant (EU 2002/95/EC) and CRoHS-compliant (China SJ/T11363-2006), i.e. can be used worldwide.



request Product
Article image Article number Manufacturer number Description Manufacturer
7000 00662000 JSTRIP-12-3
RFS Stripping tool for LCF12 and HCA12
Radio Frequency Systems GmbH

Article image Article number Manufacturer number Description Manufacturer
7000 00750859 LCF12-50J
RFS 100 m 1/2" standard coaxial cable, in box
Radio Frequency Systems GmbH
7000 00750860 LCF12-50JFN
RFS 100 m 1/2" standard coaxial cable, flame-retardant, fire protection class B2ca s1a d0 a1, in box
Radio Frequency Systems GmbH
7000 00753188 LCF12-50JFN-B2
RFS 1/2" standard coaxial cable, flame-retardant, fire protection class B2ca s1a d0 a1
Radio Frequency Systems GmbH
7000 00753192 LCF12-50JFN-B2
RFS 500 m 1/2" standard coaxial cable, flame-retardant, fire protection class B2ca s1a d0 a1, on standard reel
Radio Frequency Systems GmbH
7000 00753245 LCF12-50J-DE
RFS 2x 500 m 1/2" standard coaxial cable, on standard reel
Radio Frequency Systems GmbH
7000 00753623 RSF12-50JFL
RFS 1/2" RADIAFLEX®, frequency range 75-6000 MHz, fire protection class Cca s1a d2 a1
Radio Frequency Systems GmbH
7000 00750826 LCF12-50J
RFS 300 m 1/2" standard coaxial cable, on standard reel
Radio Frequency Systems GmbH
7000 00750827 LCF12-50J
RFS 500 m 1/2" standard coaxial cable, on standard reel
Radio Frequency Systems GmbH
7000 00750828 LCF12-50JFN
RFS 300 m 1/2" standard coaxial cable, flame-retardant, fire protection class B2ca s1a d0 a1, on standard reel
Radio Frequency Systems GmbH
7000 00750829 LCF12-50JFN
RFS 500 m 1/2" standard coaxial cable, flame-retardant, fire protection class B2ca s1a d0 a1, on standard reel
Radio Frequency Systems GmbH
7000 00757854 RCF12-50JFN-1000M
RFS 1000 m RCF 1/2" RADIAFLEX® cable, fire protection class Cca s1a d2 a1
Radio Frequency Systems GmbH
