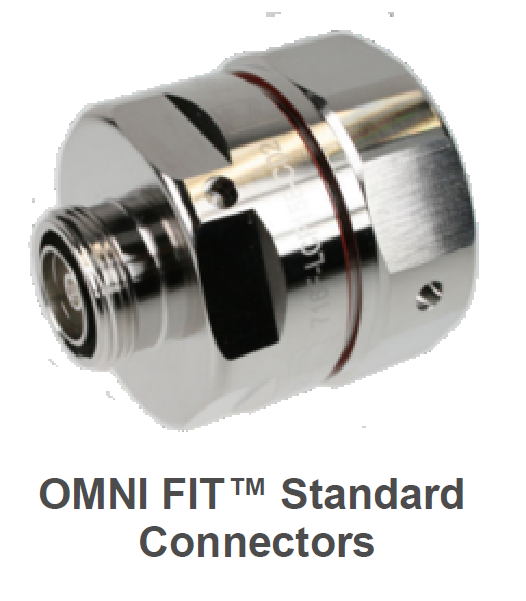

RFS DIN-7/16 coupler OMNI FIT™ Standard C02 family for LCF158 cable

Order number: 7000 00606600

Manufacturer number: 716F-LCF158-C02

Product information

Cost-effective two-piece design for safe and easy installation
Compatible with copper and aluminum cable types, i.e. one connector for both outer conductor materials eliminates the risk of incorrect connector installation and helps keep inventory low
Robust mechanical design for low and consistent intermodulation performance, i.e. keeps cellular network performance high, reduces dropped calls and avoids revenue loss
Superior electrical performance for consistent and repeatable VSWR, i.e. ensuring the performance of the network system
Waterproof to IP 68, i.e. no risk of failure, secures revenue
RoHS (EU) and CRoHS (China) compliant, i.e. can be used worldwide

Data sheet 7000 00606600 (EN)

Article image	Article number	Manufacturer number	Description	Manufacturer

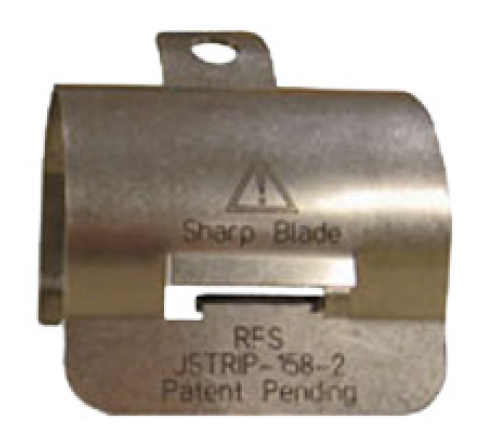

	7000 00662200	JSTRIP-158-2	RFS Stripping tool for LCF158	Radio Frequency Systems GmbH
	7000 00668200	TRIM-SET-L158-C02	RFS Universal trimming tool for LCF158 for mounting connector types -C02	Radio Frequency Systems GmbH

Article number	Manufacturer number	Description	Manufacturer
7000 00753198	LCF158-50JFNA-Cd2	RFS 1 5/8" coaxial cable, flame-retardant, fire protection class Cca s1a d2 a1	Radio Frequency Systems GmbH
7000 00753199	LCF158-50JFNA-Cd0	RFS 1 5/8" coaxial cable, flame-retardant, fire protection class Cca s1a d2 a1	Radio Frequency Systems GmbH
7000 00757842	LCF158-50JA-1-500	RFS 500 m 1 5/8" standard coaxial cable	Radio Frequency Systems GmbH
7000 00757843	LCF158-50JFNA-1-500	RFS 500m 1 5/8" coaxial cable, standard, fire protection class Cca s1a d2 a1	Radio Frequency Systems GmbH
7000 00757844	LCF158-50CPR-1-500	RFS 500m 1 5/8" coaxial cable, standard, fire protection class B2ca s1a d0 a1	Radio Frequency Systems GmbH

Article is compatible with:
