RFS 500m 1/4" coaxial cable, super flexible, fire protection class B2ca s1a d0 a1
Order number:
7000 00757833
Manufacturer number: SCF14-50JFN-1-500
View accessories
Product information

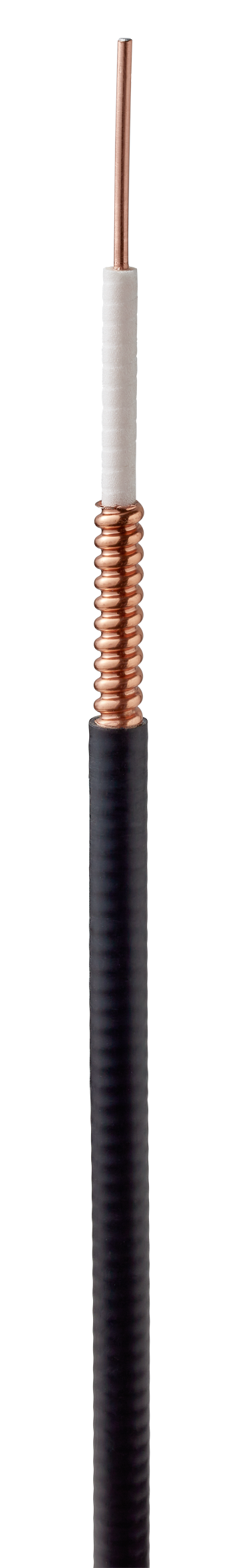

CELLFLEX® 1/4" superflexible cable; flame retardant/ halogen free jacket
FEATURES/ADVANTAGES
Low Attenuation
The low attenuation of CELLFLEX® coaxial cable results in highly efficient signal transferin your RF system.- Complete Shielding
The solid outer conductor of CELLFLEX® coaxial cable creates a continuous RFI/EMI shield that minimizes system interference. - Low VSWR
Special low VSWR versions of CELLFLEX® coaxial cables contribute to low system noise. - Outstanding Intermodulation Performance
CELLFLEX® coaxial cable's solid inner and outer conductors virtually eliminate intermods. Intermodulation performance is also confirmed with state-of-the-art equipment at the RFS factory. - High Power Rating
Due to their low attenuation, outstanding heat transfer properties and temperature stabilized dielectric materials, CELLFLEX® cable provides safe long term operating life at high transmit power levels. - Wide Range of Application
Typical areas of application are: feedlines for broadcast and terrestrial microwave antennas, wireless cellular, PCS and ESMR base stations, cabling of antenna arrays, and radio equipment interconnects.
Meets or Exceeds: IEC 60754-1, -2; IEC 60332-1-1, -2;IEC 61034-1, -2; IEC 60332-3-24; EN45545-2 CPR: https://www.rfsworld.com/searchengine/construction-productsregulation-cpr
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00757829 | NF-SCF14-E01 |

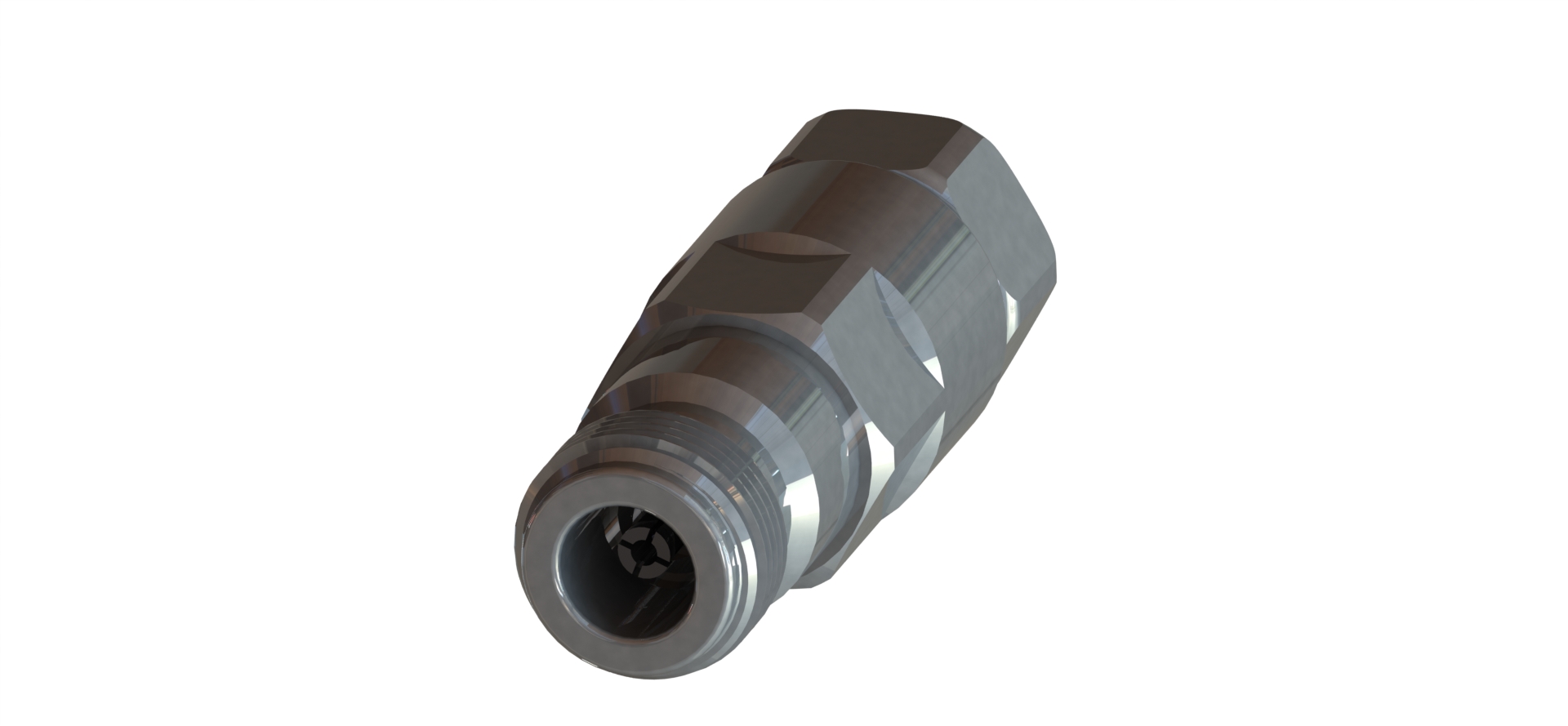

RFS N connector OMNI FIT™ Premium E01 family for SCF14-50 cable
|
Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00668900 | TRIM-SET-S14-D01 |
RFS Universal trimming tool for SCF14 for mounting connector types -D01/-E01
|
Radio Frequency Systems GmbH |
