RFS 500 m RLK 1 1/4" RADIAFLEX®, fire protection class B2ca s1b d0 a1
View accessories
This cable has a minimum purchase quantity of 4 km in length
RADIAFLEX® acts as a distributed antenna for communication in tunnels, mines and large building complexes and is the solution for any application in confined areas.
Slots in the copper outer conductor allow a controlled portion of the internal RF energy to be radiated into the environment. Conversely, a signal that is transmitted close to the cable is coupled into the slots and transmitted along the entire length of the cable.
RADIAFLEX® is used for both one-way and two-way communication systems, and due to its broadband capability, a single radiating cable can serve multiple communication systems simultaneously.
This RADIAFLEX® radiating cable utilizes a low-loss cellular polyethylene foam dielectric and a smooth copper outer conductor that provides excellent electrical performance along with good bending characteristics.
FEATURES/ADVANTAGES
- Ultra-wideband from 30 MHz to 965 MHz
- For applications in tunnels and buildings
- Low fluctuations in coupling losses
Kabelkamp 20
30179 Hannover
Germany
info.emea@rfsworld.com
https://info.rfsworld.com/contact-us
https://www.rfsworld.com
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00605900 | 716F-RA114-016 |

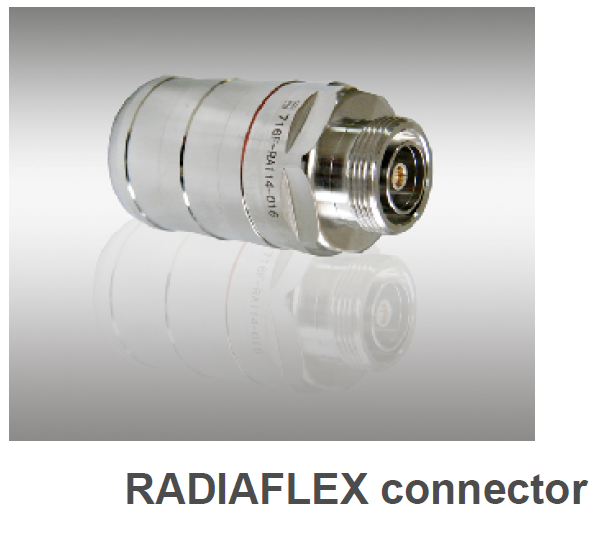

RFS Connector DIN-7/16 Coupler for RADIAFLEX® 1 1/4" cable
|
Radio Frequency Systems GmbH |
|
7000 00607300 | 716F-RA114-P02 |

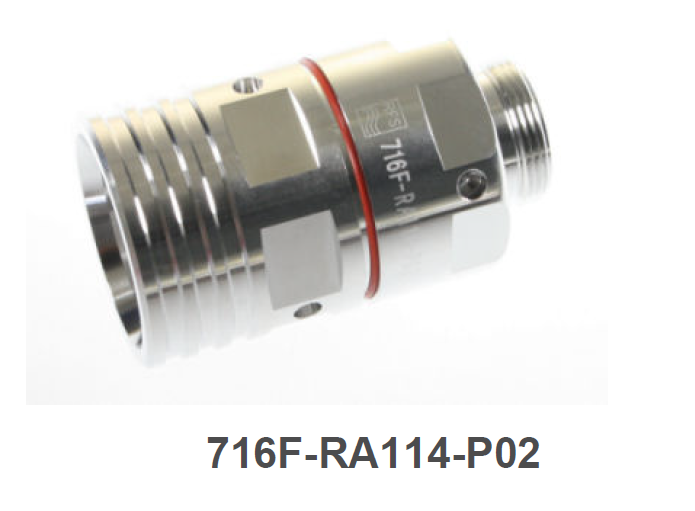

RFS DIN-7/16 coupler for RADIAFLEX® 1 1/4" cable
|
Radio Frequency Systems GmbH |
|
7000 00642500 | NF-RA114-016 |

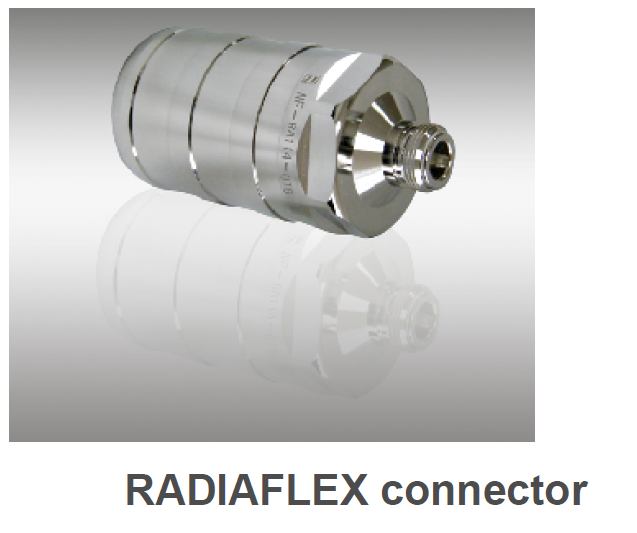

RFS N coupler for RADIAFLEX® 1 1/4" cable
|
Radio Frequency Systems GmbH |
|
7000 00752345 | 43F-RA114-P02 |

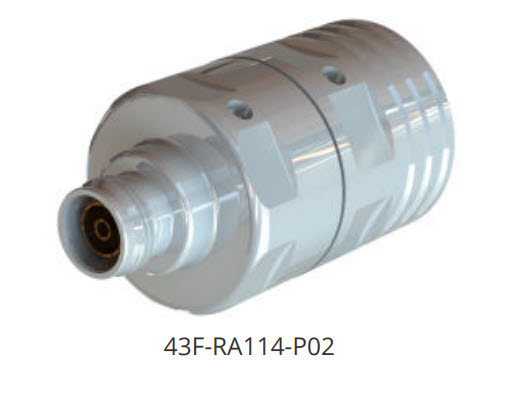

RFS Premium 4.3-10 coupler for RADIAFLEX® 1 1/4" cable
|
Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00752683 | WPFG-1 |

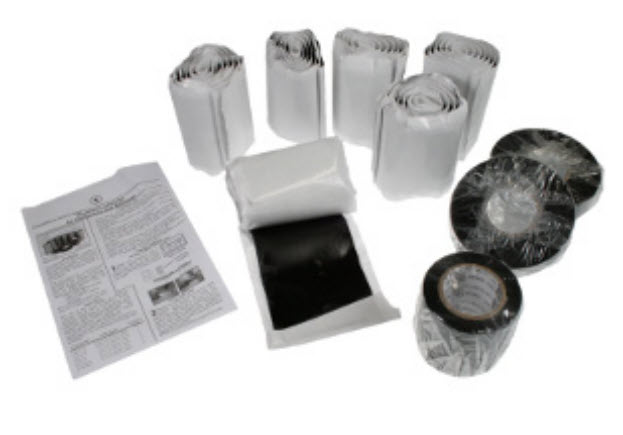

RFS Weather proofing kit, consisting of 3 rolls of self-sealing tape and 6 rolls of insulating tape
|
Radio Frequency Systems GmbH |
