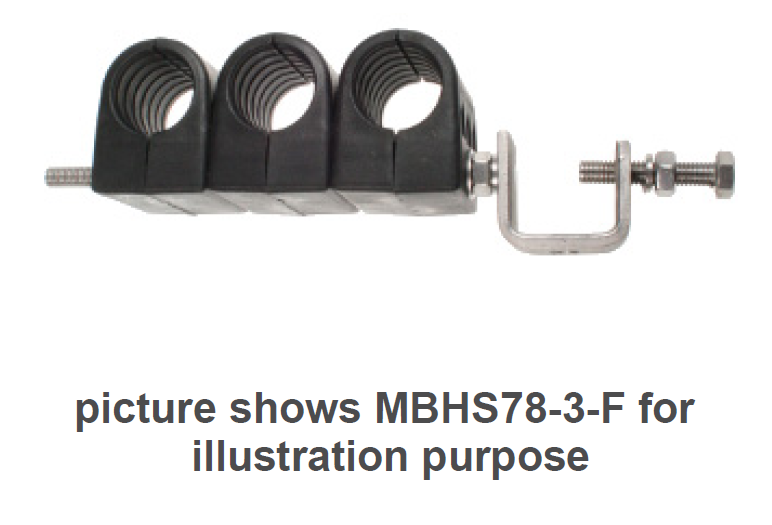

RFS 10x single multi block hanger with carrier clamp for 3x LCF114 cable
Order number:
7000 00641300
Manufacturer number: MBHS114-3-F
View compatible articles
Product information
Single multi-block suspension support systems are designed for organizing bundled runs of coaxial cable.
Each space-saving block securely holds a coaxial cable, creating a compact bundle of up to 3x runs supported by stacking three blocks.
FEATURES/ADVANTAGES
- Single multi-blocks are made of polypropylene, which provides thermal, chemical and UV resistance in all environments.
- They are supplied including elbow adapter and necessary hardware.
- The elbow adapter includes a set screw for the tower element.
- The pendant mounting rod can be installed in one of two mounting holes depending on the orientation of the mounting element.
- Complies with RoHS (EU 2002/95/EC) and CRoHS (China SJ/T11363-2006), i.e. can be used worldwide.
| Article image | Article number | Manufacturer number | Description | Manufacturer |
|---|---|---|---|---|
|
7000 00752668 | LCFS114-50JFNA-B2d0 |
RFS 300 m 1 1/4" coaxial cable, flame-retardant, fire protection class B2ca s1b d0 a1
|
Radio Frequency Systems GmbH |
|
7000 00757841 | LCFS114-50JA-1-500 |
RFS 500 m 1 1/4" standard coaxial cable
|
Radio Frequency Systems GmbH |
