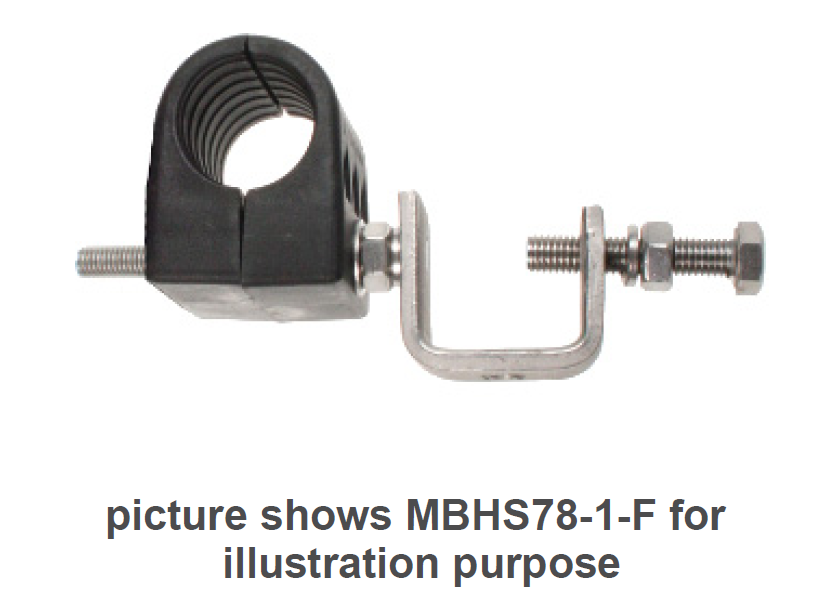

RFS 10x single multi block hanger with carrier clamp for 1x LCF78 cable

Order number: 7000 00588000

Manufacturer number: MBHS78-1-F

Product information

Single multi-block suspension support systems are designed for organizing bundled runs of coaxial cable.

Each space-saving block securely holds a coaxial cable, allowing a compact bundle of up to 3x runs supported by stacking three blocks.

Single multi-blocks are manufactured from polypropylene and offer thermal, chemical and UV resistance in all environments.
They are supplied including elbow adapter and necessary hardware.
The angle bracket adapter attaches the clamp to the tower without drilling.
The elbow adapter includes a set screw for the tower element.
The mounting rod of the suspension can be located in one of two mounting holes depending on the orientation of the mounting element.
RoHS-compliant (EU 2002/95/EC) and CRoHS-compliant (China SJ/T11363-2006), i.e. can be used worldwide.

Data sheet 7000 00588000 (EN)

Radio Frequency Systems GmbH
Kabelkamp 20
30179 Hannover
Germany
info.emea@rfsworld.com
https://info.rfsworld.com/contact-us
https://www.rfsworld.com

Article image	Article number	Manufacturer number	Description	Manufacturer
	7000 00750825	LCF78-50JA	RFS 500 m 7/8" standard coaxial cable, on standard reel	Radio Frequency Systems GmbH
	7000 00750824	LCF78-50JA	RFS 300 m 7/8" standard coaxial cable, on standard reel	Radio Frequency Systems GmbH

Article is compatible with:
