Ecoflex 10 Plus cable, stranded conductor with aluminum core, copper sheath.

PRT Coaxial Cable Ecoflex 10, as cut length

Order number: 7000 00758872

Manufacturer number: 03.01.063

Product information

Ecoflex® 10 Plus - particularly flexible and low-loss coaxial cable

Ecoflex® 10 Plus is a highly flexible, low-loss coaxial cable that has been specially developed for use up to 8 GHz.
State-of-the-art production processes and the use of a low-loss PE-LLC dielectric with a gas content of over 70% enable very low attenuation values.

FEATURES/ADVANTAGES

Ecoflex® 10 Plus sets new standards for flexible coaxial cables. The high flexibility of Ecoflex® 10 Plus is guaranteed by a seven-wire hybrid inner conductor with an aluminum core and welded copper sheath.
The inner conductor is stranded, compressed, calibrated and then precoated in precise production steps in order to achieve very good attenuation and matching values.
Another plus point is the double shielding. An overlapping copper foil and an overlying copper braid ensure a high shielding factor of over > 90 dB at 1 Ghz.
The copper foil has a PE coating that prevents cracks from forming in the copper foil due to small bending radii.
The black PVC outer jacket of the Ecoflex® 10 Plus is UV-stabilized.
In addition to a full range of standard connectors, a user-friendly solderless N connector has been developed especially for the Ecoflex® 10 Plus.
The connector can be installed in a few minutes without special tools.
Ecoflex® 10 Plus is the innovative coaxial cable for all applications in high-frequency technology.
Low attenuation, ultra-flexible, interference-resistant and suitable for use in the microwave range.

request Product

Datenblatt 7000 00758872 (DE)

PRO-Tecs GmbH
Feldstraße 1
24983 Handewitt
Germany
info@pro-tecs.de
https://shop.pro-tecs.de/kontakt.html
http://www.pro-tecs.de

Article image	Article number	Manufacturer number	Article		Manufacturer

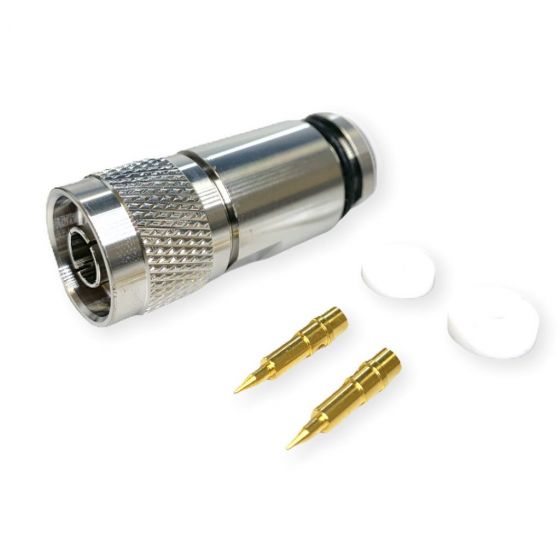

	7000 00758873	03.03.064	PRT N connectors for Ecoflex 10, FF400, RG213, RG214, H2000 and Aircom Plus cables as soldered or screw-on version		PRO-Tecs GmbH
