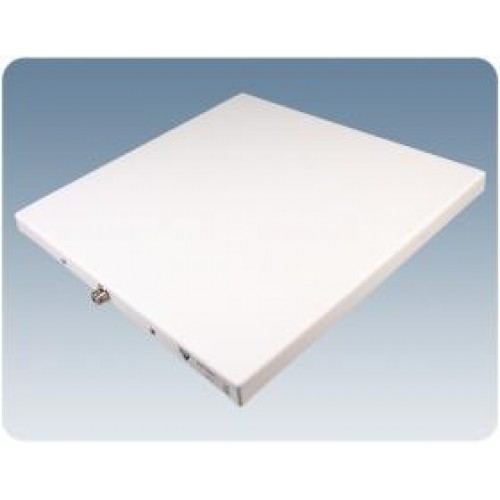

PRO PCPI 70/RH/h Circular right-hand polarised flat antenna, frequency range 450-470 MHz, indoor mounting

Order number: 7000 00560900

Manufacturer number: 100000150

Product information

Flat antenna for the 450 MHz band.
PCPI 70/xH/... is a left or right circularly polarized patch antenna for indoor use.
The circularly polarized antenna was chosen to avoid out-of-phase signals.
Reduces flutter considerably.
Specially designed for closed rooms.
Covers approx. 20 MHz with a radiation of approx. 7 dBic 3 dBd.
Full-surface ½ λ patch antennas.
The antennas are carefully sealed with a discrete cover.
The connector is attached to one side to allow mounting near a wall or ceiling.
The housing is also available in stainless steel PCPI 70R/xH/... (see order designations).
Connection also possible from the rear.

Data sheet 7000 00560900 (EN)

Article image	Article number	Manufacturer number	Description	Manufacturer
	7000 00489400	110000035	PRO Bracket set for YA yacht fitting for 1" antennas	PROCOM Deutschland GmbH

Article number	Manufacturer number	Description	Manufacturer

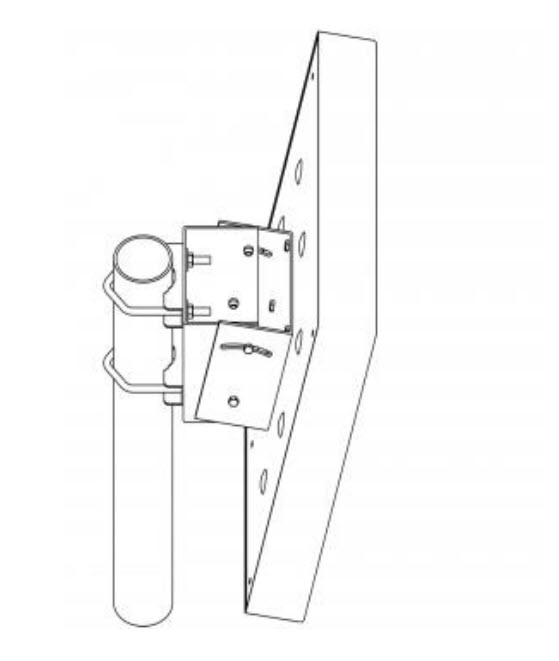

7000 00489500	100000447	PRO PATCH-MAMO, mast mount for PLPO and PCPO antennas, clamping range 40-55 mm	PROCOM Deutschland GmbH

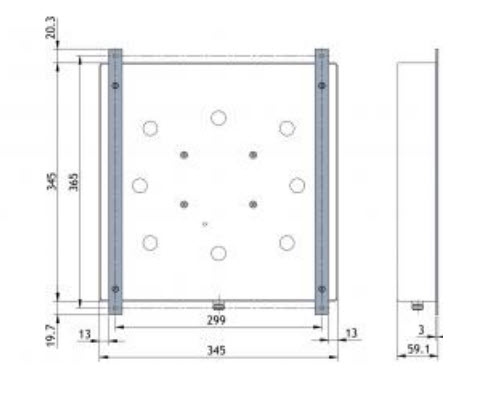

7000 00489600	100000511	PRO PATCH-WAMO, wall bracket for PCPI, PCPo and PLPI antennas	PROCOM Deutschland GmbH
7000 00502200	CSB	PRO Colinear Standoff Boom welded	PROCOM Deutschland GmbH
7000 00580400	100000051	PRO SMC 1000/65-105, lateral mast bracket, 1000 mm, for mast Ø 65-105 mm	PROCOM Deutschland GmbH
7000 00580500	100000049	PRO SMC 500/15-65, lateral mast bracket, 500 mm, for mast Ø of 15-65 mm	PROCOM Deutschland GmbH
7000 00580600	100000048	PRO SMC 500/65-105, lateral mast bracket, 500 mm, for mast Ø of 65-105 mm	PROCOM Deutschland GmbH

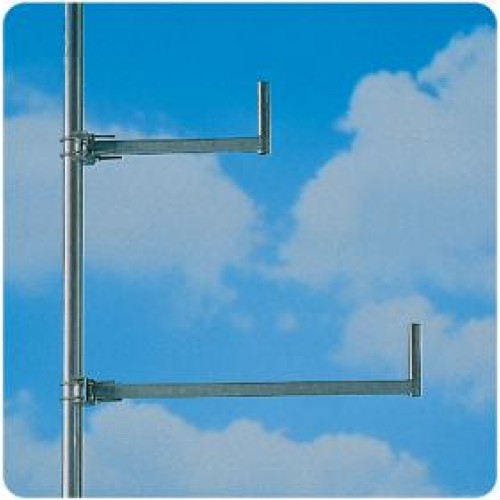

7000 00580700	100000045	PRO SMC 1000/15-65, lateral mast bracket, 1000 mm, for mast Ø of 15-65 mm	PROCOM Deutschland GmbH
