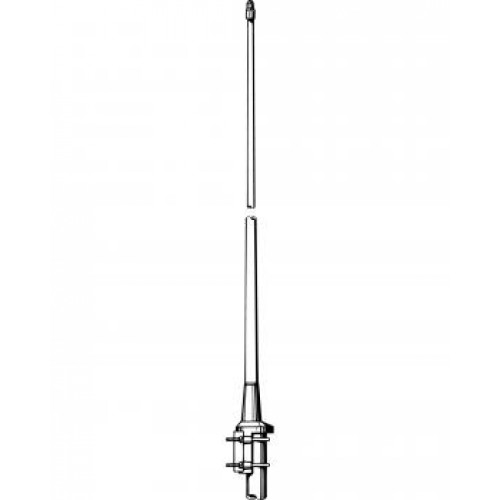

PRO CXL 70-5HD/l-PT, robust lightning current tested omnidirectional antenna, frequency range 380-400 MHz, 5 dBd gain, N coupler

Order number: 7000 00509200
Manufacturer number: 100000237
View accessories
Product information

FEATURES/ADVANTAGES

  • CXL 70-5HD/...-PT is a 5 dBd, vertically polarized, omnidirectional base station antenna for the TETRA bands.
  • The antenna has a bandwidth of 20 MHz.
  • The antenna is approved as lightning current resistant (10/350 μs pulses/100 kA) in accordance with EN 62305-1.
  • The antenna is supplied with our robust "HD" mast mount, a heavy-duty, versatile mount made from corrosion-free aluminum. The associated U-brackets and fittings are made of stainless steel.
  • The antenna can be mounted on mast tubes with an outer diameter of 58 to 105 mm. The design of the bracket also makes it possible to route the cable either along the inside or outside of the mast tube.
  • The antenna element is enclosed in a high-quality, conical fiberglass tube with low wind load, which ensures undisturbed performance in all climates.
  • To significantly reduce interference from atmospheric discharges, all metal parts of the antenna are DC earthed. Consequently, the antenna has a DC short circuit via the coaxial cable.
  • The CXL 70-5HD/...-PT is a vibration-resistant, slim, corrosion-resistant base station antenna of modern design.

request Product
Data sheet 7000 00509200 (EN)
