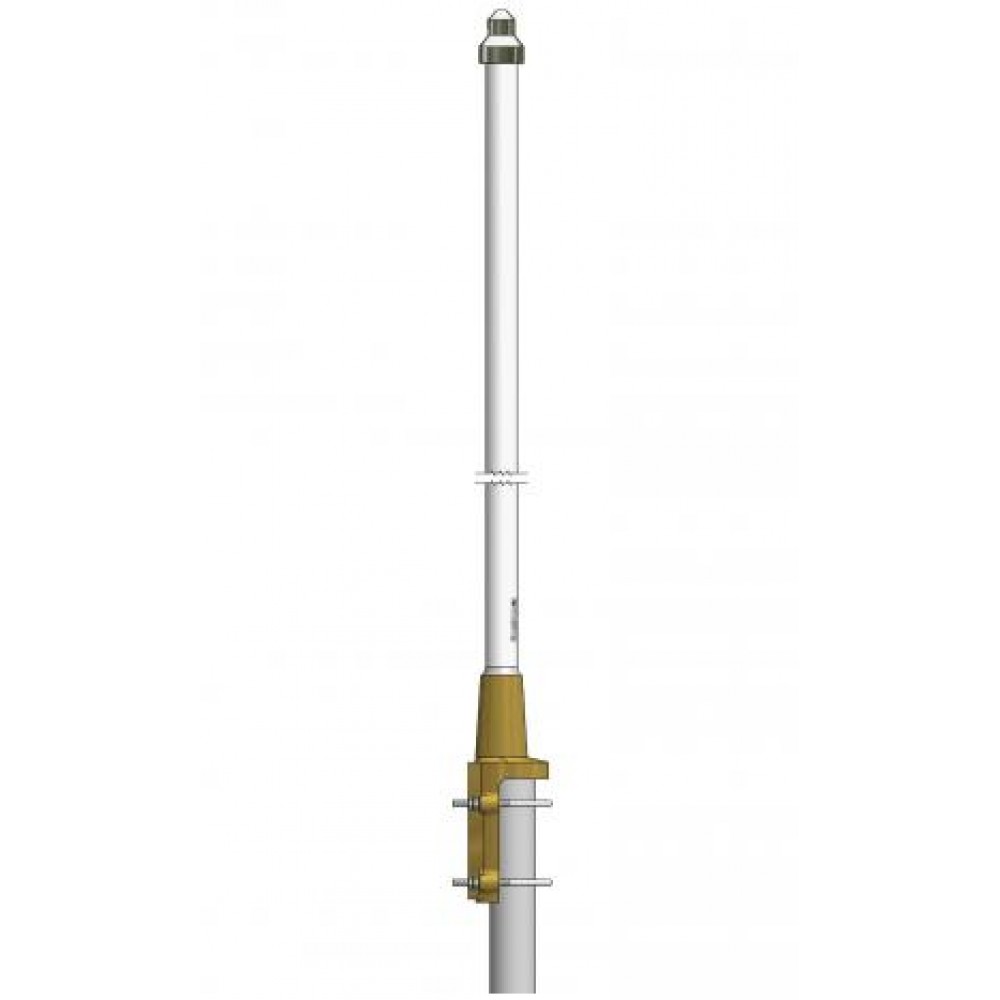

PRO CXL 2-3C/158-164-PT, omni antenna, robust, lightning current tested, frequency range 158-164 MHz, 3 dBd gain, N coupler

Order number: 7000 00757793
Manufacturer number: 100000901
View accessories
Product information



FEATURES/ADVANTAGES



  • CXL 2-3C-PT is a sturdy, 3 dBd, vertically polarized, omnidirectional base station antenna.
  • The antenna has been approved to withstand lightning (10/350 μs impulses/150 kA) according to EN 62305-1
  • The antenna is provided with our “C” mast bracket, which is a universal, epoxy-coated mounting bracket made of non-corrosive aluminium. The accompanying U-bolts and fittings are made of stainless steel.
  • The antenna can be mounted on 27 to 65 mm dia. mast tubes and it is possible to lead the cable either along the inside or on the outside of the mast tube.
  • The antenna element is completely enclosed in a glass fibre shroud, ensureing undisturbed performance in all climates.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • This antenna is constructed to ensure long dependable service in all climates.
  • Grounding conductors is to be chosen in accordance with IEC 62305-3.



request Product
Datasheet 7000 00757793 (EN)
