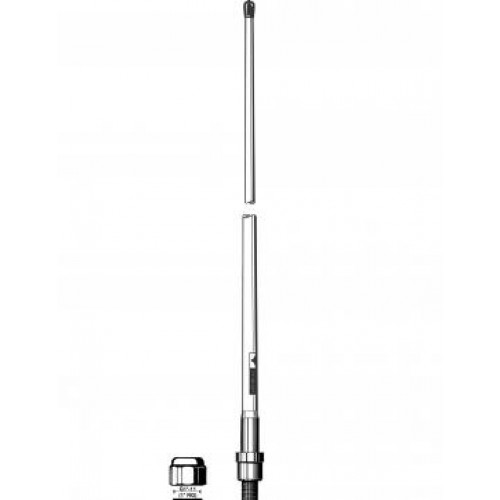

PRO CXL 2-1HD-PT, base station antenna, robust, lightning current tested, frequency range 144-175 MHz, 0 dBd gain, N coupler

Order number: 7000 00503300
Manufacturer number: 100000515
View accessories
Product information

FEATURES/ADVANTAGES

  • CXL 2-1HD-PT is a 0 dBd, vertically polarized, omnidirectional base station antenna for the entire 2 m band.
  • The antenna is approved as lightning current resistant (10/350 μs pulses/150 kA) in accordance with EN 62305-1.

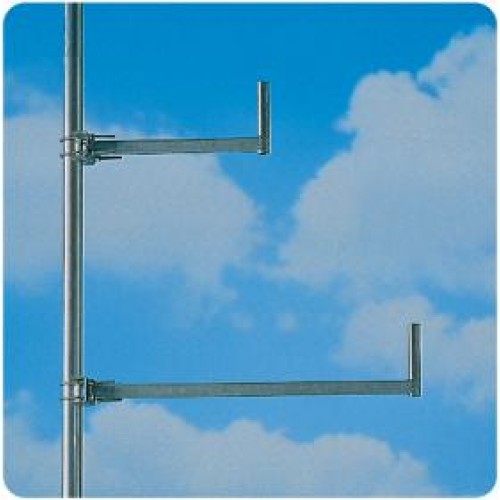

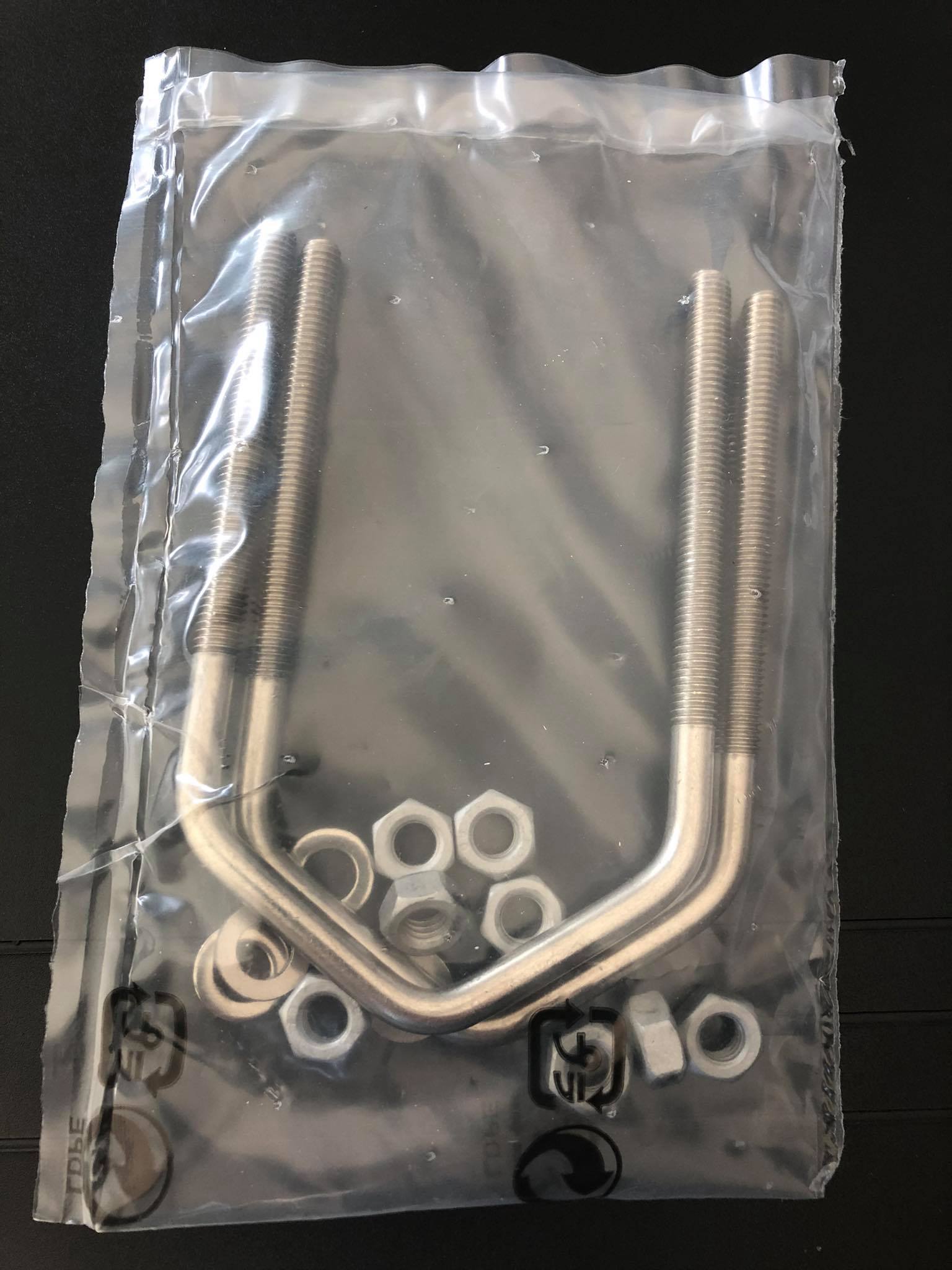

  • The antenna is supplied with our robust "HD" type mast bracket - a heavy-duty, versatile bracket made from corrosion-free aluminum. The associated U-brackets and fittings are made of stainless steel.
  • The antenna can be mounted on mast tubes with an outer diameter of 58 to 105 mm. The design of the bracket also makes it possible to route the cable either along the inside or outside of the mast tube.
  • The antenna element is enclosed in a high-quality, conical fiberglass tube with low wind load, which ensures undisturbed performance in all climates.
  • To significantly reduce interference from atmospheric discharges, all metal parts of the antenna are DC earthed. Consequently, the antenna has a DC short circuit via the coaxial cable.
  • Also available with UHF connection.
  • The earthing conductors must be selected in accordance with IEC 62305-3.

request Product
Data sheet 7000 00503300 (EN)
