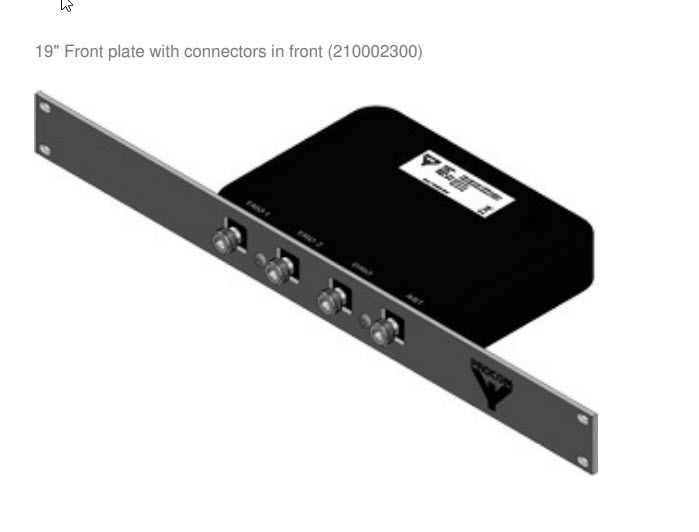

PRO 19", 1U, mounting plate F incl. screws for PRO-ISO-PHY TETRA-S-ELW, front connection
Order number:
7000 00491100
Manufacturer number: 210002300
Product information
Features / Advantages

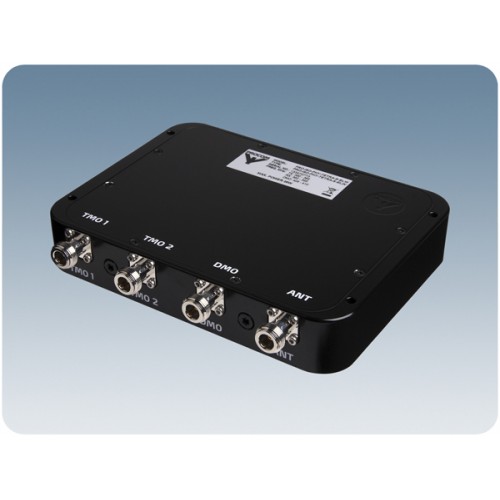

- The PRO-ISO-PHY-TETRA-S-ELW combiner offers the option of connecting two TMO and one DMO TETRA radios to a common antenna.
- ETSI and DIN-SPEC 14507-2 compliant connection of two digital radios.
- The PRO-ISO-PHY-TETRA-S-ELW supports Direct Mode Operation (DMO), which enables a TETRA radio to communicate in direct mode.
- The PRO-ISO-PHY-TETRA-S-ELW is the successor to the PRO-ISO-PHY-TETRA-ELW.
- The PRO-ISO-PHY-TETRA-S-ELW has improved isolation between the ports - more than 60 dB - and lower insertion loss.
- The use of high-quality system components such as highly selective helical duplex filters and high-performance isolators ensures high isolation and secure communication.
- Built-in high-pass filter to attenuate interference in the 150 - 174 MHz and 74 - 87.5 MHz bands.
- The smallest and most compact design on the market.
- Suitable for both stationary and mobile use.
- Also available as a tray for 19" installation.
- Vibration and shock-tested in accordance with EN-60068**.
**Tested in accordance with:
Sample test: EN 60068-2-64, test specification: EN 300 019-2-5 V3.0.0.
Shock test: EN 60068-2-27, test specification: EN 300 019-2-5 V3.0.0.
Impact test: EN 60068-2-29, test specification: EN 300 019-2-5 V3.0.0.
