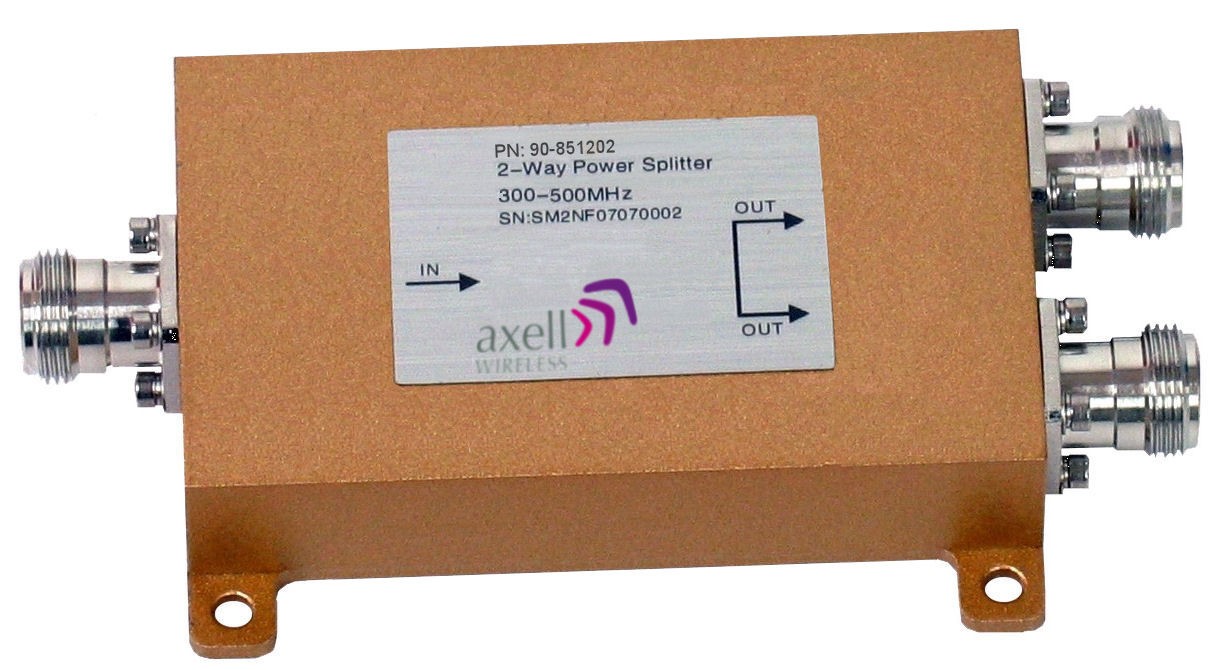

2-way power splitter 300-500 MHz, axell Wireless, connectors for input and two outputs.

PBE 2-way Power splitter, 3 dB, frequency range 300-500 MHz, N coupler

Order number: 7000 00104700

Manufacturer number: 90-851202

Product information

FEATURES/ADVANTAGES

LOW POWER PLUGS

300-500MHz, Type N connector, 2-, 3- and 4-way

50Watt average power
20dB insulation, Min
Minimum RF insertion loss
High reliability
Environment IP65
Type N female connectors

The Axell Wireless series of low power splitters is designed to evenly split cellular power signals with minimal reflections or loss.All units meet IP65 specification and their mechanical configuration allows for easy mounting on a wall, pole or mast.

The device can be used with antennas, leaky cable systems and wireless base stations.

request Product

Data sheet 7000 00104700 (EN)
