COP Helmet headset type TITAN Fire-Com HUC-6-TP-01 universal for helmet-specific mounts, Nexus connector (Config 01)

Order number: 7000 00752242

Manufacturer number: 770208

View accessories

Product information

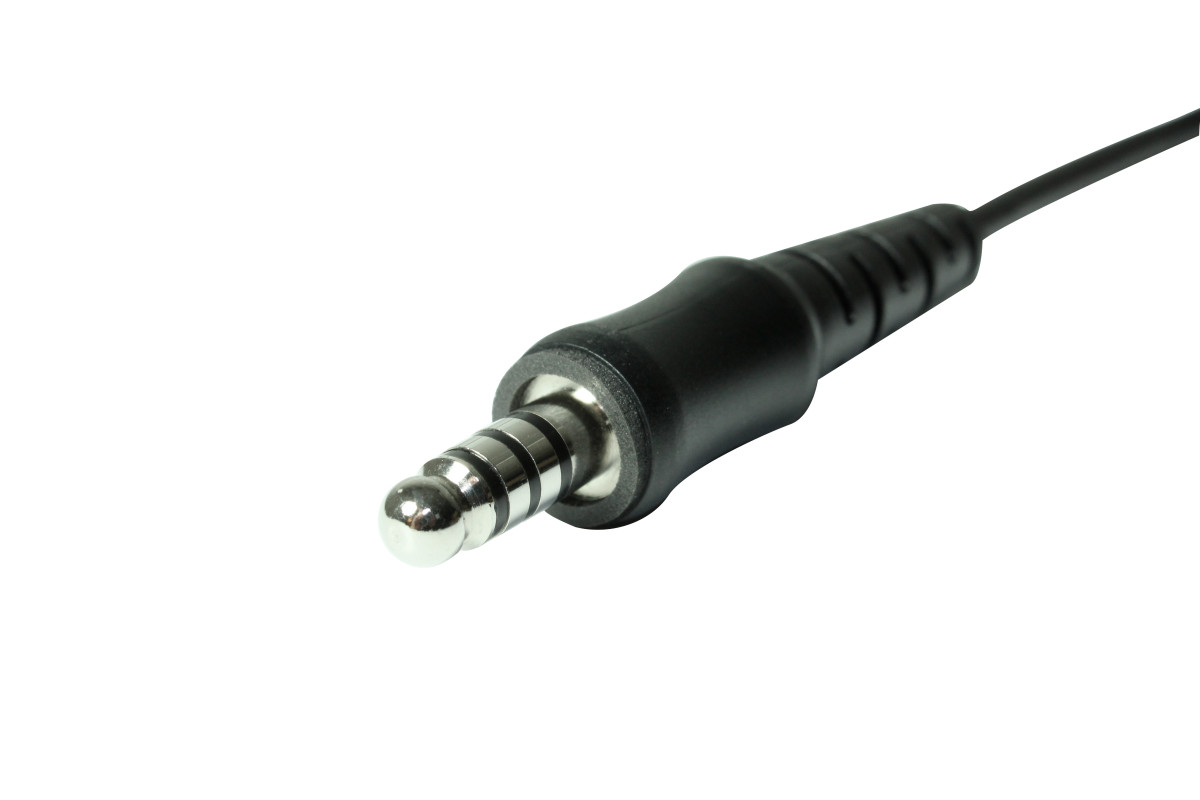

TITAN Fire-Com 6 universal helmet headset for helmet-specific mounts with gooseneck microphone, Nexus plug (configuration 01) and coiled cable e.g. suitable for loudspeaker microphone COPACKS XM05, TITAN MM20/ MM50 and TITAN PTT20

HUC6-TP-01

FEATURES / ADVANTAGES

noise-compensating electret microphone (IP67 waterproof)
Length of gooseneck approx. 195 mm (flexible part approx. 165 mm)
designed for communication under heavy breathing protection
flame-retardant materials according to EN443 requirements (UL94V.0)
can be easily attached to most firefighter helmets thanks to various helmet adapters (optionally available)

Attention: The tightening torque of the screws must not exceed 0.35 Nm (hand-tight)!

request Product

Datenblatt 7000 00752242 (DE)

Article image	Article number	Manufacturer number	Description	Manufacturer
	7000 00752243	770652	COP PTT button, robust, type TITAN PTT20, Nexus-01 socket (config 01), clip rotatable, connector, for Sepura STP8000/9000 series	Akkuplanet GmbH
	7000 00752579	770618	COP PTT button, robust, type TITAN PTT20-M12-01, Nexus socket (config 01), clip rotatable, connector, for MTP850FuG, DP4000 series	Akkuplanet GmbH

Article number	Manufacturer number	Description	Manufacturer
7000 00751334	756359-01	COP Loudspeaker Microphone XM05 with Nexus socket 4-pin Config 01 type GE-XM0500M15-C-01 fits DP2400 MTP3100 MTP3200	Akkuplanet GmbH
7000 00751336	770759-01	COP Loudspeaker microphone MM50, Nexus socket, 4-pin, config 01, type MM50-M15-T-01, for DP2400, MTP3100, MTP3200	Akkuplanet GmbH
7000 00752241	756352-01	COP Loudspeaker microphone X-M05, Nexus-01 socket (Config 01), device plug, for Sepura STP8000/9000 series	Akkuplanet GmbH
7000 00752351	770118-E-01	COP Loudspeaker microphone MM20, type TITAN MM20-M12, Nexus socket (config 01), connector for MOT DP4000e series	Akkuplanet GmbH

Article number	Manufacturer number	Description	Manufacturer
7000 00754258	770208-H8	COP Helmet holder / base plate for adapting the TITAN Fire-Com 6 / HUC6 plug-in adapter to the Dräger HPS4500, Dräger R62991	Akkuplanet GmbH

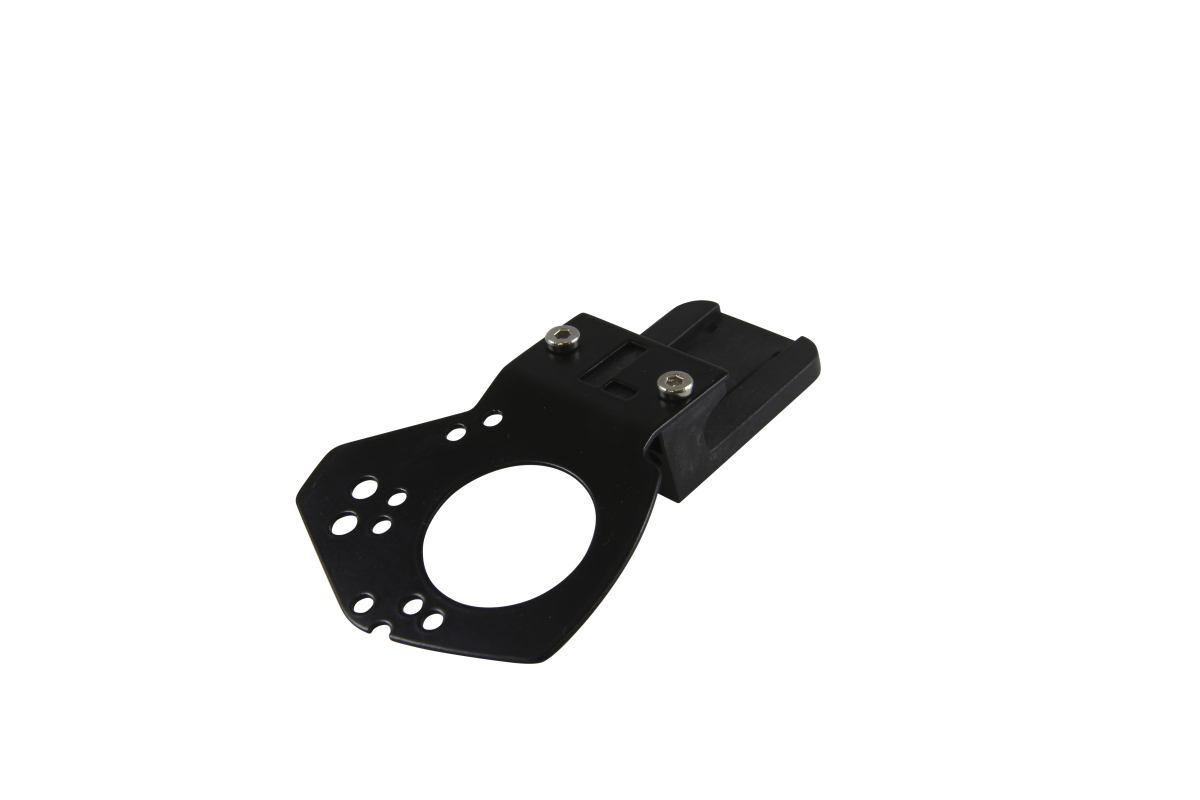

7000 00754259	770208-UNI-ST	COP Plug-in adapter for TITAN Fire-Com 6/ HUC6 helmet headset, for attachment to helmet base plate, left-hand mounting	Akkuplanet GmbH

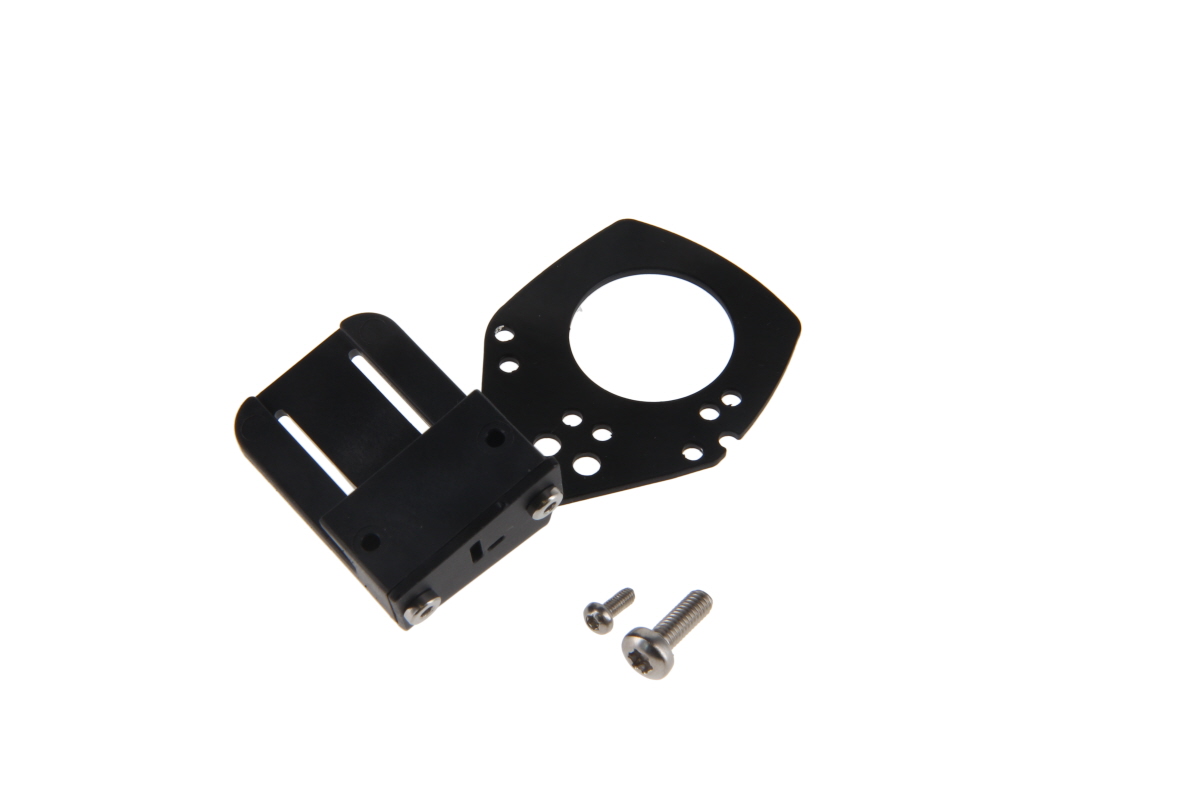

7000 00753158	770208-H9-ST-L	COP Plug-in adapter for TITAN Fire-Com 6, HUC6 for helmet mount on Rosenbauer Heros-titan helmet, mounting on left side of helmet	Akkuplanet GmbH

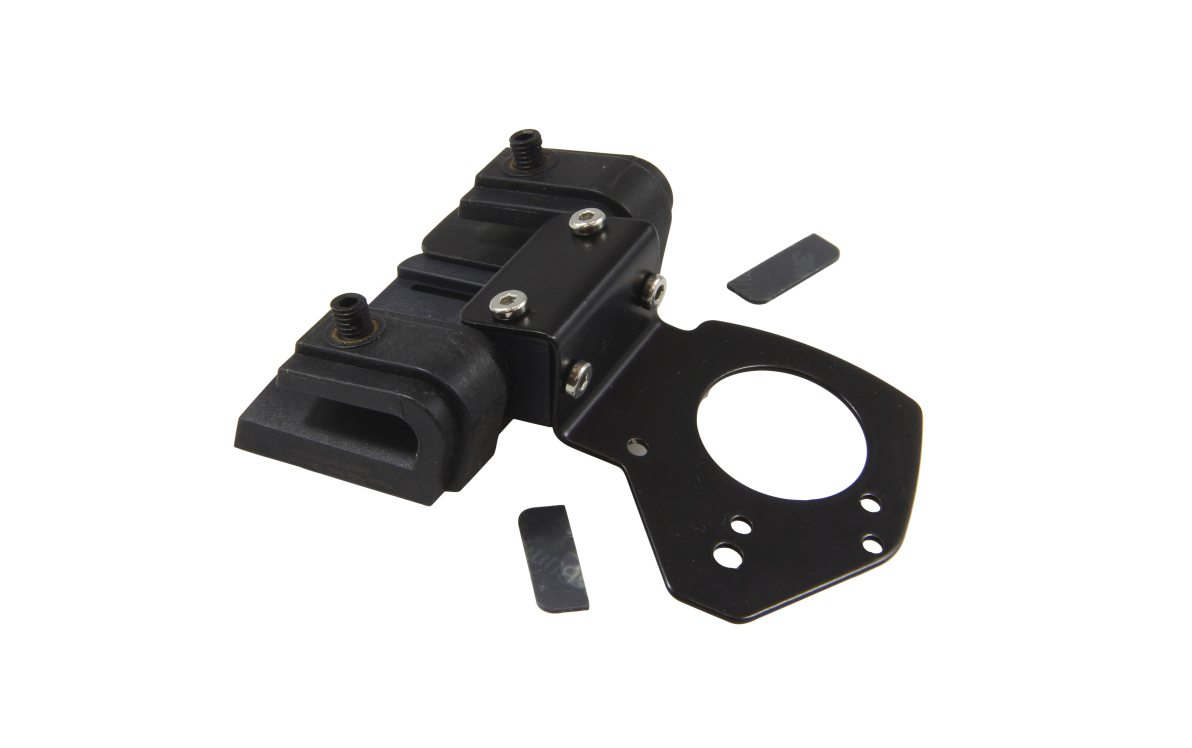

7000 00752240	770208-UNI-SET	COP Universal helmet adapter base plate, type TITAN UNI-SET, for adapting the Fire-Com HUC-6 to the protective helmet on the left	Akkuplanet GmbH

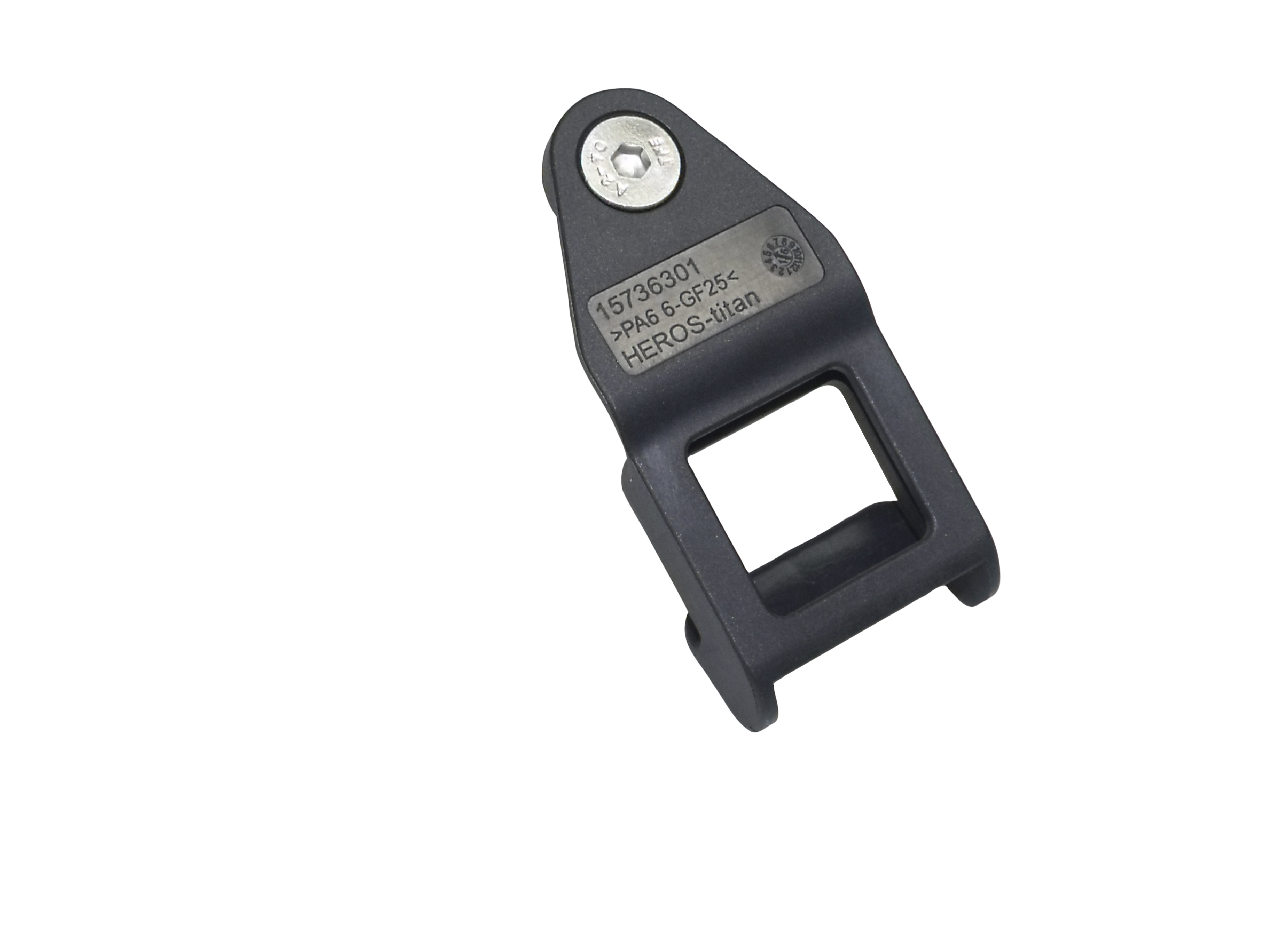

7000 00753157	770208-H9	COP Helmet holder, base plate for adapting the Fire-Com 6, HUC6 to the Rosenbauer Heros-titan helmet 15736301	Akkuplanet GmbH
