Mounting bracket YA
for 1", 2.54 cm thread, mast tube mounting
Order number:
7000 00583100
Manufacturer number: 110000032
View compatible articles
Product information
Angle bracket for mounting antennas based on mounting on 1" threaded water pipe.
Application 1: Mounting on vertical structures such as:
- Ship masts, cabins and rails
- House roof ends.
- (Fastening by means of screws, bolts or rivets (not supplied)).
Application 2: Fastening to vertical tubes (Ø 10-40 mm)
- (Fastening by means of steel ties (through the slotted holes)). (Not supplied).
Application 3: Attachment to horizontal tubes (20-40 mm Ø) such as:
- Bow and stern pulpit, railing and mast throw.
- (Attachment with the supplied U-bolt fittings).
Max. Antenna height: 1.25 m.
The antenna is attached to the YA bracket with the supplied hexagon nut and serrated lock washer, which is screwed onto the antenna connection.
PROCOM Deutschland GmbH
Feldtstraße 1
24983 Handewitt
Germany
info@amphenolprocom.de
https://amphenolprocom.com/de/contact-de
https://www.procom-deutschland.de
Feldtstraße 1
24983 Handewitt
Germany
info@amphenolprocom.de
https://amphenolprocom.com/de/contact-de
https://www.procom-deutschland.de
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00753579 | 100000908 |

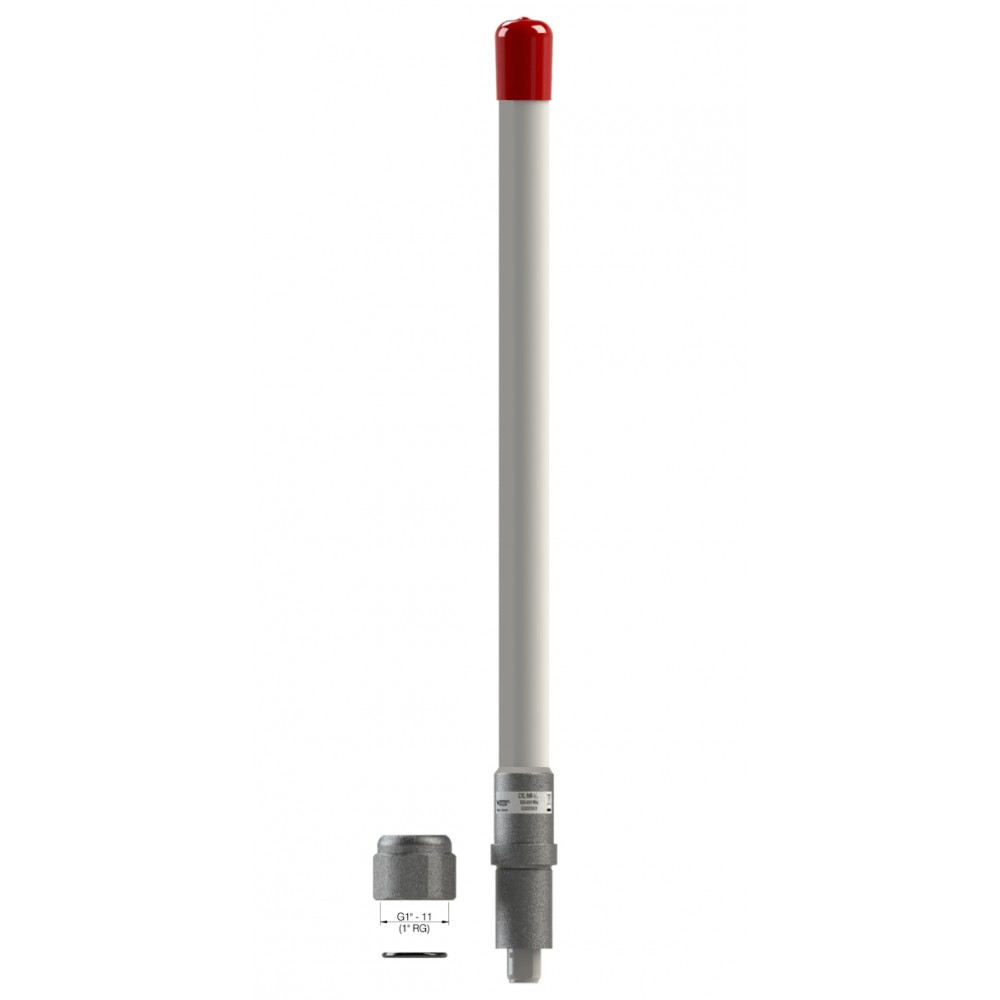

Omni antenna CXL 698-4200
|
lightweight base station antenna, frequency range 698-4200 MHz, 5 dBi gain, N female | PROCOM Deutschland GmbH |
|
7000 00526800 | 112000016 |
GPS Antenna GPS 4/12 V
|
12 V version, frequency range 1575 MHz | PROCOM Deutschland GmbH |
|
7000 00753578 | 100000907 |

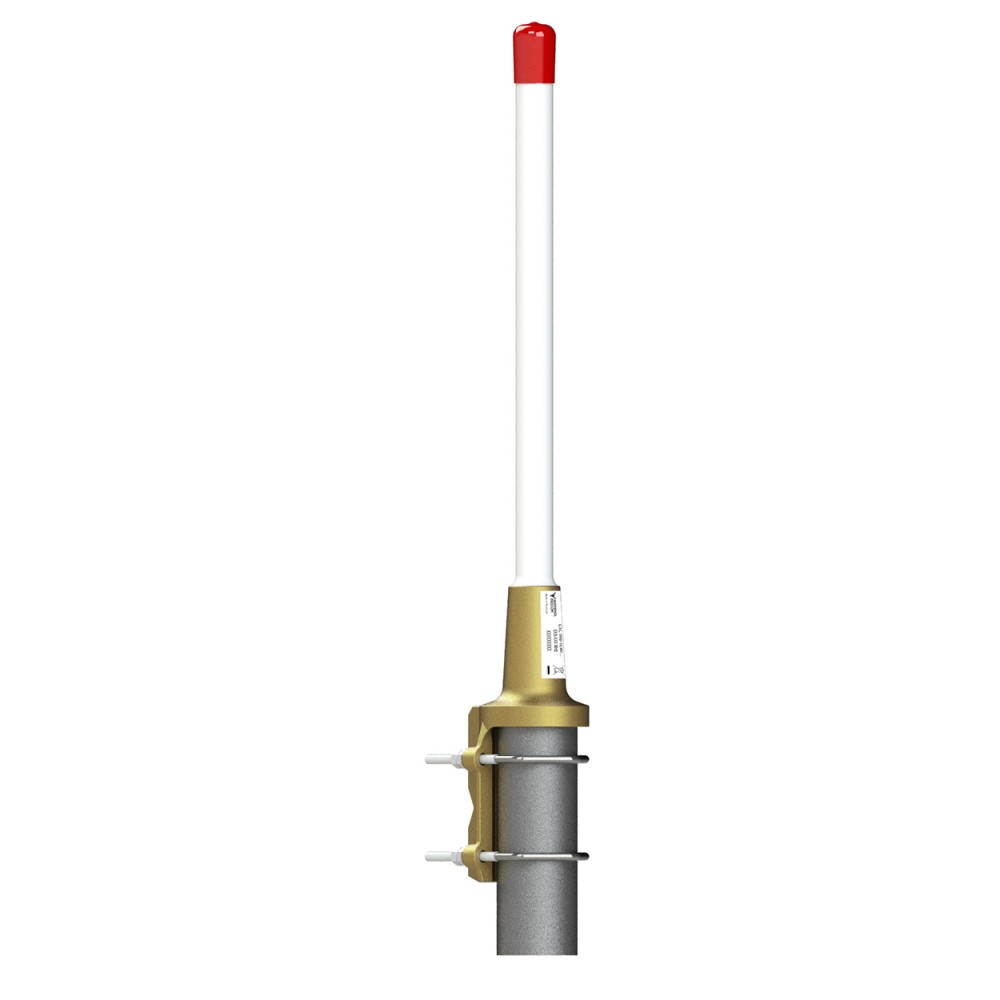

Omni antenna CXL 698-4200LW
|
Lightweight fixed-station antenna, with lightweight mast mount, frequency range 698-4200 MHz, 5 dBi gain, N female | PROCOM Deutschland GmbH |
|
7000 00503100 | 110000297 |
Base station antenna CXL 2-1/s
|
frequency range 138-156 MHz, 0 dBd gain, UHF female | PROCOM Deutschland GmbH |
|
7000 00506500 | 110000137 |

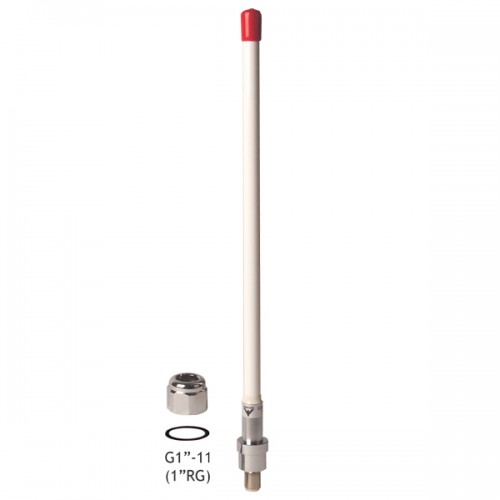

Base station antenna CXL 70-1/l
|
frequency range 380-430 MHz, 0 dBd gain, N female | PROCOM Deutschland GmbH |
|
7000 00506200 | 100000226 |
Base station antenna CXL 470-870
|
frequency range 470-870 MHz, 0 dBd gain, N female | PROCOM Deutschland GmbH |
|
7000 00505000 | 110000157 |
Base station antenna CXL 2400-3/l
|
frequency range 2300-2500 MHz, 3 dBd gain, N female | PROCOM Deutschland GmbH |
|
7000 00503200 | 110000298 |
Base station antenna CXL 2-1/s-N
|
frequency range 138-156 MHz, 0 dBd gain, N female | PROCOM Deutschland GmbH |
|
7000 00503000 | 110000121 |
Base station antenna CXL 2-1/I-N
|
frequency range 144-165 MHz, 0 dBd gain, N female | PROCOM Deutschland GmbH |
|
7000 00503700 | 100000204 |

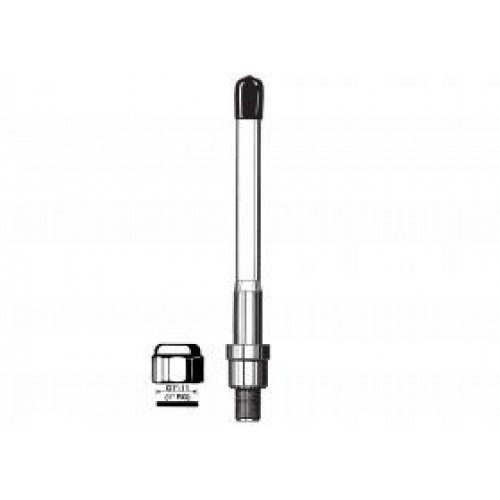

Base station antenna CXL 2-3 GHz
|
frequency range 2000-3000 MHz, 0 dBd gain, N female | PROCOM Deutschland GmbH |
|
7000 00506300 | 110000136 |
Base station antenna CXL 70-1/h
|
frequency range 420-470 MHz, 0 dBd gain, N female | PROCOM Deutschland GmbH |
|
7000 00502900 | 110000119 |
Base station antenna CXL 2-1/l
|
frequency range 144-165 MHz, 0 dBd gain, UHF female | PROCOM Deutschland GmbH |
|
7000 00507200 | 110000139 |
Base station antenna CXL 70-3/h
|
frequency range 440-470 MHz, 3 dB gain, N female | PROCOM Deutschland GmbH |
|
7000 00503800 | 110000130 |
Base station antenna CXL 2-3
|
frequency range 156-162 MHz, 3 dB gain, UHF female | PROCOM Deutschland GmbH |
|
7000 00527100 | 112000015 |

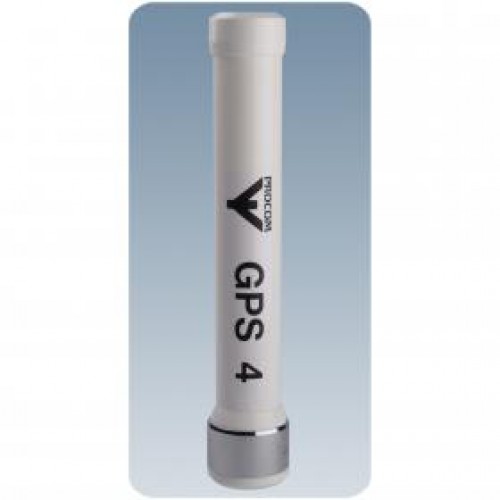

GPS Antenna GPS 4/3 V
|
3 V version, frequency range 1575 MHz | PROCOM Deutschland GmbH |
|
7000 00502700 | 110000123 |
Base station antenna CXL 2-1/h
|
frequency range 155-175 MHz, 0 dBd gain, UHF female | PROCOM Deutschland GmbH |
|
7000 00757651 | 110000375 |
Base station antenna CXL 150-1LW-SS-R/l
|
frequency range 146-165 MHz, 0 dBd gain, N female | PROCOM Deutschland GmbH |
|
7000 00502800 | 110000124 |
Base station antenna CXL 2-1/h-N
|
frequency range 155-175 MHz, 0 dBd gain, N female | PROCOM Deutschland GmbH |
|
7000 00526900 | 112000017 |
GPS Antenna GPS 4
|
5 V version, frequency range 1575 MHz | PROCOM Deutschland GmbH |
|
7000 00509600 | 110000230 |

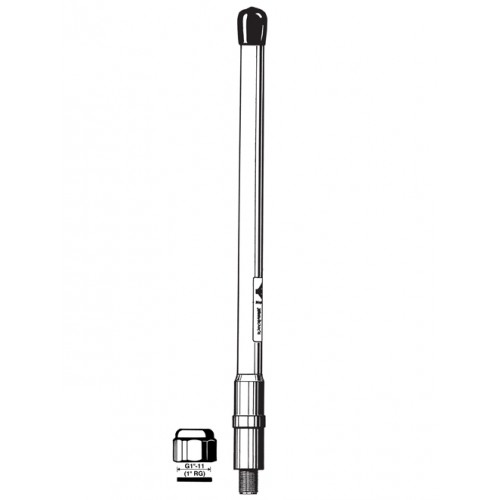

Base station antenna CXL 900/1800/1900/UMTS
|
frequency range GSM 900/DCS1800/PCS1900/UMTS, -2.2 dBd gain, N female | PROCOM Deutschland GmbH |
