Vehicle antenna ML1-ZR/BOS2 BBMU

stainless steel, chrome, Z mount, frequency range 74-88 MHz/167-174 MHz, 0 dB gain, FME connection

Order number: 7000 00750850

Manufacturer number: 130000629

Product information

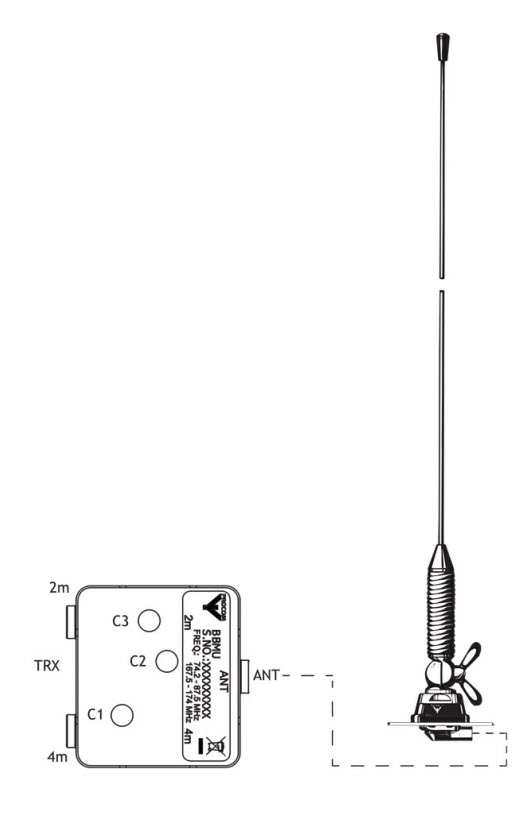

¼ λ wideband car radio antenna for the 80 MHz and 150 MHz BOS band

Rugged ¼ λ car radio antenna in professional industry-standard quality.
Factory-adjusted broadband tuning box for 74.2-77.7 MHz / 84.0-87.5 MHz and 167.5- 169.5 MHz / 172-174 MHz).
No adjustment required - fine adjustment is possible if required.
Broadband adjustment unit can be mounted separately from the base for time-saving installation.
Required cable length between matching box and antenna base: 100 mm (FME connection cable included).
Stainless steel antenna base (Z-base) with ball joint and wing screw.
Easy mounting of the antenna base either from the outside or inside.
FME antenna cables for 80 MHz and 150 MHz BOS can be mounted directly on the adapter box without special adapter plugs.

Datenblatt 7000 00750850 (DE)

Article image	Article number	Manufacturer number	Article	peitelShop.product.detail.crossSelling.secondDescription	Manufacturer

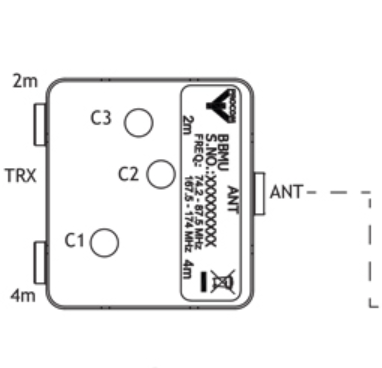

	7000 00751439	130002334	Tuning box	BOS2 BBMU box Version 2	Procom A/S
