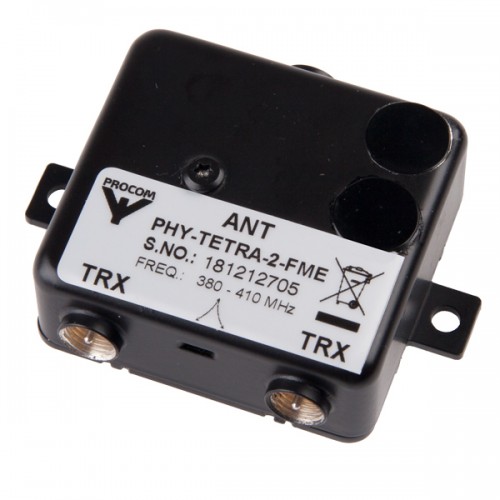

TETRA Radio Coupler PHY-TETRA-2-FME-380-410
2-port, SWR matching network, factory-calibrated, frequency range 380–410 MHz, FME connector
Order number:
7000 00562200
Manufacturer number: 210001836
Product information
FEATURES/ADVANTAGES
- Combiner for coupling two TETRA mobile radio devices to a common antenna.
- Factory set to either 380 - 410 MHz or 400 - 430 MHz.
- Compact dimensions - particularly suitable for mobile applications.
- FME connections for direct connection of FME cables without additional adapters.
- For parallel operation of two two-way radios (transceivers) where the highest possible decoupling (isolation) is required.
- Integrated SWR adjustment network to optimize decoupling in the frequency range of 380 - 410 MHz or 400 - 430 MHz. The effective SWR of the antenna can be optimized via the adjustment network, thus significantly improving the isolation between the ports of the combiner.
- High isolation achievable: up to 60 dB (depending on the SWR of the connected antenna).
- The SWR adjustment network is adjusted via built-in variable capacitors.
- Max. TETRA transmitting power 2 x 10 W.
- Can also be used as a DC power divider for max. 20 W.
- Very low residual ripple over the entire frequency range.
