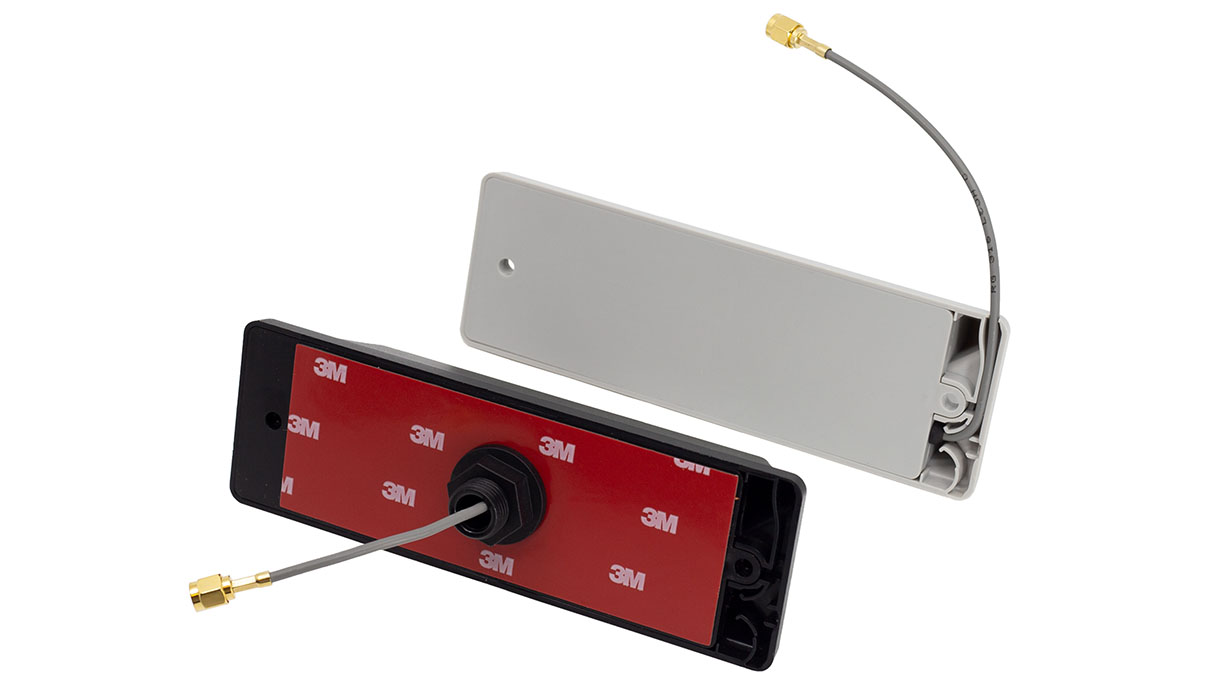

Two antenna mounts with cables, one open, one closed, 3M adhesive tape visible.

Flat antenna LP702

groundfree, black, frequency range 698-960/1710-2700 MHz, 2.0 m RG316, SMA male

Order number: 7000 00751037

Manufacturer number: 710380

Product information

The Smarteq™ LP70x series is a low-profile multiband antenna that operates simultaneously in the 698-960 MHz and 1710-2700 MHz bands with omnidirectional performance. It is designed for surface mounting on metallic or non-metallic surfaces. The low-profile housing offers a high level of vandal resistance, making it perfect for M2M and IoT applications where reliable communication is required.

FEATURES/ADVANTAGES

Radio system: 2G/3G/4G
Frequency: 698-960/1710-2690MHz
Gain: 1.5 / 2.5dBi
Color: Black or grey
Can be mounted on metal and non-conductive surfaces
LP701: Screw mounting / IP65
LP702: Drill hole mounting / IP65 when installed
DC short-circuited
IATF 16949

request Product

Data sheet LP70x-Serie (EN)
