FLEXWELL® standard waveguide
frequency range 27.5-33.4 GHz
Order number:
7000 00624700
Manufacturer number: E300J
View accessories
Product information
The FLEXWELL® elliptical waveguide is a longitudinally seam-welded, highly conductive copper tube, corrugated and precision-formed into an elliptical cross-section. It is manufactured in continuous lengths using a special seam welding process developed by RFS.
The wave design achieves high transverse stability, flexibility and compressive strength for excellent handling and shaping during installation. The stability and flexibility of the FLEXWELL® waveguide enables a continuous installation from the antenna to the remote transmitter unit.
A FLEXWELL® elliptical waveguide feeder requires less planning and reduces installation costs, compared to a feeder system with a rigid rectangular waveguide.
FEATURES/ADVANTAGES
- Designed for optimum system performance
- Excellent electrical performance
- Low loss and low VSWR (low return loss)
- Electrical test, performed on each waveguide during manufacture
- Each waveguide is subjected to a 24-hour pressure test
- Lower installation costs compared to rigid rectangular waveguides due to flexibility
- No need for flange connections, torsion cross-section and bends
- Easy transportation in coils or on drums
- Cut to exact length and splice in the field
Radio Frequency Systems GmbH
Kabelkamp 20
30179 Hannover
Germany
info.emea@rfsworld.com
https://info.rfsworld.com/contact-us
https://www.rfsworld.com
Kabelkamp 20
30179 Hannover
Germany
info.emea@rfsworld.com
https://info.rfsworld.com/contact-us
https://www.rfsworld.com
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00620700 | B260-300FP |
Connector
|
for FLEXWELL® elliptical waveguides E300 IEC-PBR260 flange | Radio Frequency Systems GmbH |
|

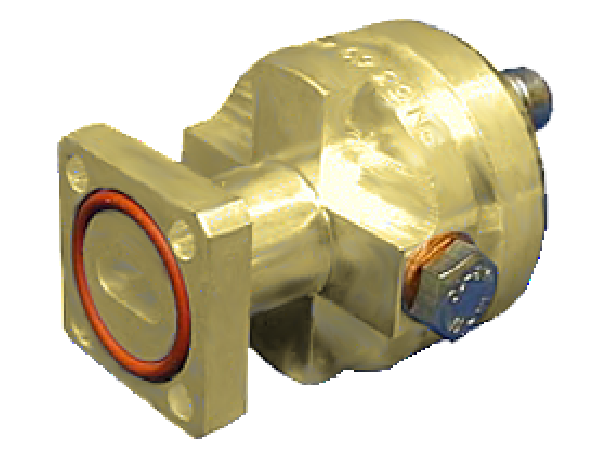

7000 00620800 | B320-300FP |
Connector
|
for FLEXWELL® elliptical waveguides E300 IEC-PBR320 flange | Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00752967 | BHA8-030-C |
Hanger
|
for installing elliptical waveguides on metal supports or flat bars, length 30.0 cm, M8 | Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00750765 | TF260-BB1-120M |
TwistFlex PBR/PBR260
|
22.0-33.0 GHz, 1200 mm | Radio Frequency Systems GmbH |
|
7000 00750764 | TF260-BW1-120M |
TwistFlex PBR/UBR260
|
22.0-33.0 GHz, 1200 mm | Radio Frequency Systems GmbH |
|
7000 00665000 | TF320-BB1-120M |
TwistFlex PBR/PBR320
|
26.5-40.0 GHz, 1200 mm | Radio Frequency Systems GmbH |
|
7000 00665300 | TF320-BW1-120M |
TwistFlex PBR/UBR320
|
26.5-40.0 GHz, 1200 mm | Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00660800 | SHIM320-B-1 |
Shim UBR320
|
made of beryllium copper | Radio Frequency Systems GmbH |
|
7000 00661200 | SHIM260-B-1 |
Shim PBR260
|
made of beryllium copper | Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00628400 | FDIE-C300 |
Flange insert
|
for FLEXWELL® E300 waveguide, compact tool | Radio Frequency Systems GmbH |
