FLEXWELL® standard waveguide
frequency range 17.3-19.7 GHz
Order number:
7000 00624400
Manufacturer number: E185J
View accessories
Product information
The FLEXWELL® elliptical waveguide is a longitudinally seam-welded, highly conductive copper tube, corrugated and precision-formed into an elliptical cross-section. It is manufactured in continuous lengths using a special seam welding process developed by RFS.
The wave design achieves high transverse stability, flexibility and compressive strength for excellent handling and shaping during installation. The stability and flexibility of the FLEXWELL® waveguide enables a continuous installation from the antenna to the remote transmitter unit.
A FLEXWELL® elliptical waveguide feeder requires less planning and reduces installation costs, compared to a feeder system with a rigid rectangular waveguide.
FEATURES/ADVANTAGES
- Designed for optimum system performance
- Excellent electrical performance
- Low loss and low VSWR (low return loss)
- Electrical test, performed on each waveguide during manufacture
- Each waveguide is subjected to a 24-hour pressure test
- Lower installation costs compared to rigid rectangular waveguides due to flexibility
- No need for flange connections, torsion cross-section and bends
- Easy transportation in coils or on drums
- Cut to exact length and splice in the field
Radio Frequency Systems GmbH
Kabelkamp 20
30179 Hannover
Germany
info.emea@rfsworld.com
https://info.rfsworld.com/contact-us
https://www.rfsworld.com
Kabelkamp 20
30179 Hannover
Germany
info.emea@rfsworld.com
https://info.rfsworld.com/contact-us
https://www.rfsworld.com
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00620200 | B220-185FP |

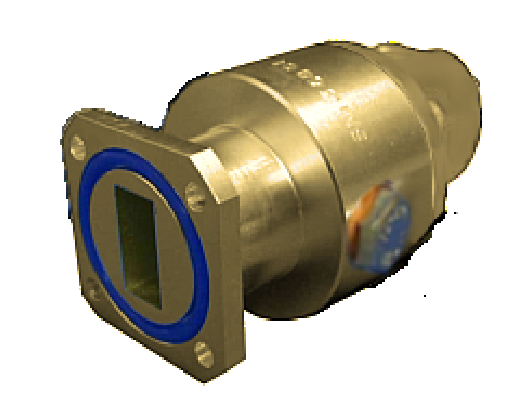

Connector
|
for FLEXWELL® elliptical waveguides E185 and EP185 with IEC-PBR220 flange | Radio Frequency Systems GmbH |
|
7000 00620300 | D180-185FP |

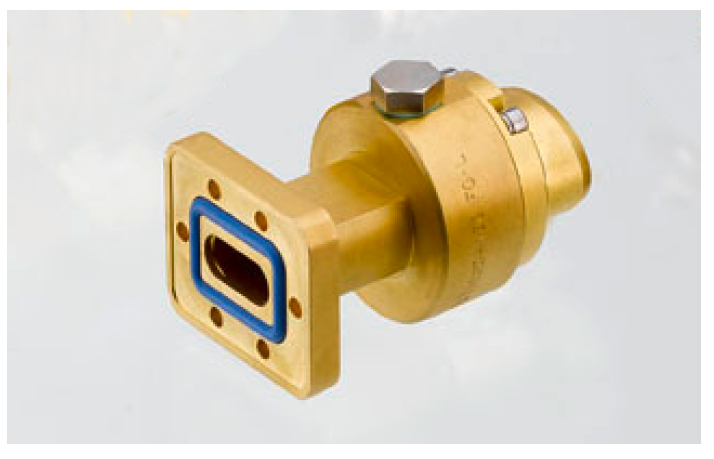

Connector
|
for FLEXWELL® elliptical waveguides E185 and EP185 IEC-PDR180 flange | Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00752967 | BHA8-030-C |
Hanger
|
for installing elliptical waveguides on metal supports or flat bars, length 30.0 cm, M8 | Radio Frequency Systems GmbH |
|
7000 00656800 | RSB-185 |
RSB clip
|
10 pieces, made of stainless steel for E185, including rubber insert | Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00664100 | TF220-BB1-120M |
TwistFlex PBR/PBR220
|
18.0-26.5 GHz, 1200 mm | Radio Frequency Systems GmbH |
|
7000 00664300 | TF220-BW1-120M |
TwistFlex PBR/UBR220
|
18.0-26.5 GHz, 1200 mm | Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00753087 | DC-KIT-B |
Desiccant cartridge
|
kit for E100-E220 | Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00628100 | FDIE-C185 |
Flange insert
|
for FLEXWELL® E185 waveguide, compact tool | Radio Frequency Systems GmbH |
