FLEXWELL® premium waveguide
frequency range 13.4-15.35 GHz
Order number:
7000 00626600
Manufacturer number: EP150J
View accessories
Product information
The elliptical waveguide FLEXWELL® is a longitudinally welded, highly conductive copper tube, corrugated and precision-formed to an elliptical cross-section. It is manufactured in continuous lengths using a special seam welding process developed by RFS.
The wave design achieves high transverse stability, flexibility and compressive strength for excellent handling and shaping during installation. The stability and flexibility of the FLEXWELL® waveguide enables a continuous installation from the antenna to the remote transmitter unit.
A FLEXWELL® elliptical waveguide feeder requires less planning and reduces installation costs, compared to a feeder system with a rigid rectangular waveguide.
FEATURES/ADVANTAGES
- Designed for optimum system performance
- Excellent electrical performance
- Low loss and low VSWR (low return loss)
- Electrical test, performed on each waveguide during manufacture
- Each waveguide is subjected to a 24-hour pressure test
- Lower installation costs compared to rigid rectangular waveguides due to flexibility
- No need for flange connections, torsion cross-section and bends
- Easy transportation in coils or on drums
- Cut to exact length and splice in the field
Radio Frequency Systems GmbH
Kabelkamp 20
30179 Hannover
Germany
info.emea@rfsworld.com
https://info.rfsworld.com/contact-us
https://www.rfsworld.com
Kabelkamp 20
30179 Hannover
Germany
info.emea@rfsworld.com
https://info.rfsworld.com/contact-us
https://www.rfsworld.com
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00620100 | D140-150FP |
Connector
|
for FLEXWELL® elliptical waveguides E150 and EP150 IEC-PDR140 flange | Radio Frequency Systems GmbH |
|

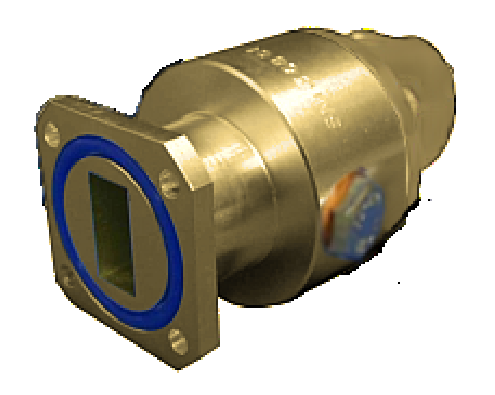

7000 00619900 | B140-150FP |
Connector
|
for FLEXWELL® elliptical waveguides E150 and EP150 with IEC-PBR140 flange | Radio Frequency Systems GmbH |
|
7000 00619800 | B120-150FP |
Connector
|
for FLEXWELL® elliptical waveguides E150 and EP150 with IEC-PBR120 flange | Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00662700 | TF120-BB1-060M |
TwistFlex PBR/PBR120
|
10.0-15.0 GHz, 600 mm | Radio Frequency Systems GmbH |
|
7000 00662800 | TF120-BB1-090M |
TwistFlex PBR/PBR120
|
10.0-15.0 GHz, 900 mm | Radio Frequency Systems GmbH |
|
7000 00662900 | TF120-BB1-120M |
TwistFlex PBR/PBR120
|
10.0-15.0 GHz, 1200 mm | Radio Frequency Systems GmbH |
|
7000 00663000 | TF120-BW1-060M |
TwistFlex PBR/UBR120
|
10.0-15.0 GHz, 600 mm | Radio Frequency Systems GmbH |
|
7000 00663100 | TF120-BW1-090M |
TwistFlex PBR/UBR120
|
10.0-15.0 GHz, 900 mm | Radio Frequency Systems GmbH |
|
7000 00663200 | TF120-BW1-120M |
TwistFlex PBR/UBR120
|
10.0-15.0 GHz, 1200 mm | Radio Frequency Systems GmbH |
|
7000 00663500 | TF140-BB1-120M |
TwistFlex PBR/PBR140
|
12.4-18.0 GHz, 1200 mm | Radio Frequency Systems GmbH |
|
7000 00663800 | TF140-BW1-120M |
TwistFlex PBR/UBR140
|
12.4-18.0 GHz, 1200 mm | Radio Frequency Systems GmbH |
|
7000 00750756 | TF120-DV1-060M |
TwistFlex PDR/UDR120
|
10.0-15.0 GHz, 600 mm | Radio Frequency Systems GmbH |
|
7000 00750757 | TF120-DV1-090M |
TwistFlex PDR/UDR120
|
10.0-15.0 GHz, 900 mm | Radio Frequency Systems GmbH |
|
7000 00750758 | TF120-DV1-120M |
TwistFlex PDR/UDR120
|
10.0-15.0 GHz, 1200 mm | Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00661100 | SHIM140-B-1 |
Shim UBR140
|
made of beryllium copper | Radio Frequency Systems GmbH |
|
7000 00753087 | DC-KIT-B |
Desiccant cartridge
|
kit for E100-E220 | Radio Frequency Systems GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00628000 | FDIE-C150 |
Flange insert
|
for FLEXWELL® E150 waveguide, compact tool | Radio Frequency Systems GmbH |
