Duplexer MPX 2/6 H-4/6-BNC
6-circuit, frequency range 152-175 MHz, duplex spacing 4-6 MHz, BNC female
Order number:
7000 00757759
Manufacturer number: 200001608
View accessories
View compatible articles
Product information
Features/Advantages
- The MPX 2/6 is a miniaturized 6-resonator duplex filter for duplex transceivers. This compact "miniplexer" meets the demand for a modern, space-saving and high-performance filter type.
- The MPX 2/6 L model can be tuned in the 138-156 MHz band and the MPX 2/6 H model in the 152 - 175 MHz band, both with duplex spacing between 4 and 15 MHz.
- The MPX 2/6 is primarily intended for devices where Tx and Rx operate on single frequencies, but it can also be used, albeit with slightly lower data, where Tx and Rx operate on multiple channels, i.e. within a given port bandwidth. In the latter case,
- factory tuning is recommended.
- The miniaturization of the filter has been realized by using special high quality, temperature compensated spiral resonators with discrete component connections.
- The housing is made of extruded aluminum, and the connections are Teflon insulated.
- The filter is coated with black vinyl to prevent corrosion.
PROCOM Deutschland GmbH
Feldtstraße 1
24983 Handewitt
Germany
info@amphenolprocom.de
https://amphenolprocom.com/de/contact-de
https://www.procom-deutschland.de
Feldtstraße 1
24983 Handewitt
Germany
info@amphenolprocom.de
https://amphenolprocom.com/de/contact-de
https://www.procom-deutschland.de
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00516400 | 200002725 |

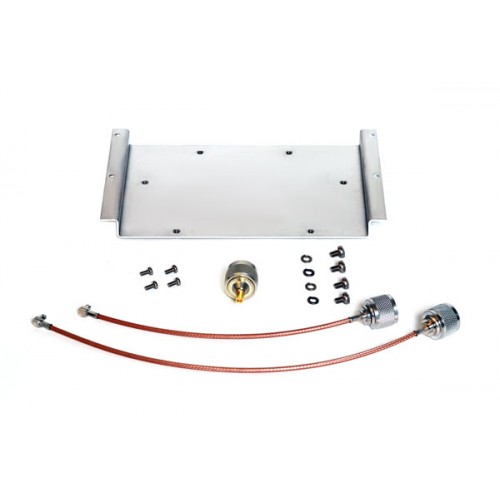

Installation kit for Motorola SLR1000
|
1x mounting plate for MPX70/6 or MPX2/6, screw set, cable | PROCOM Deutschland GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00490500 | 210002291 |
19" MXP mounting plate
|
for MPX 2/6 and MPX 70/6 | PROCOM Deutschland GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00758247 | 22540666 |
H+S 62_BNC-0-0-1/-33_-E Protection cap for BNC female with chain
|
HUBER+SUHNER GmbH |
| Article image | Article number | Manufacturer number | Article | Manufacturer | |
|---|---|---|---|---|---|
|
7000 00423100 | MDR10JCGANQ1BN |
MOT Repeater SLR5500 VHF, frequency range 136-174 MHz, 1-50 W, incl. EU power cable (QA05485AA)
|
Motorola Solutions Germany GmbH | |
|
|
7000 00490500 | 210002291 |
19" MXP mounting plate
|
for MPX 2/6 and MPX 70/6 | PROCOM Deutschland GmbH |
