Dual band antenna MA 70/GPS 4/TETRA-l

frequency range 380–400 MHz, GPS, N female

Order number: 7000 00535300

Manufacturer number: 110000200

View accessories

Product information

This active antenna is designed for use in the UHF band, e.g. for TETRA, CDMA, ICE and GPS.
The antenna consists of a high-performance, fiber-optic encapsulated antenna element and an active GPS antenna. The latter is built into the antenna base together with a diplex filter. Only one downward cable is therefore required.
The antenna element is a ½ λ antenna for the frequency range of the UHF band in the 380 - 467 MHz range.
The GPS antenna has full hemispheric coverage and a built-in high-gain, low-noise amplifier.
The necessary supply voltage (5 V DC) for the amplifier is supplied via the coaxial cable that runs downwards. Up to 30 m of RG 214/U coaxial cable can be used between the antenna and the receiver/transceiver.
Thanks to the careful selection of materials, the MA 70/GPS 4/... is designed for the harshest climatic conditions and guarantees many years of trouble-free operation.

Data sheet 7000 00535300 (EN)

Article image	Article number	Manufacturer number	Article	peitelShop.product.detail.crossSelling.secondDescription	Manufacturer
	7000 00489400	110000035	Bracket set	for YA yacht fitting for 1" antennas	Procom A/S

Article number	Manufacturer number	Article	peitelShop.product.detail.crossSelling.secondDescription	Manufacturer
7000 00758859	CPS2-405	Cable splitter	2-way, frequency range 380–430 MHz, max. 500 W, N connection	Procom A/S
7000 00580600	100000048	Mast boom SMC 500/65-105	lateral, 500 mm, for mast Ø 65-105 mm	Procom A/S
7000 00502200	CSB	Mast boom	sideways, welded for base station antennas	Procom A/S
7000 00580400	100000051	Mast boom SMC 1000/65-105	lateral, 1000 mm, for mast Ø 65-105 mm	Procom A/S
7000 00580500	100000049	Mast boom SMC 500/15-65	lateral, 500 mm, for mast Ø 15-65 mm	Procom A/S
7000 00580700	100000045	Mast boom SMC 1000/15-65	lateral, 1000 mm, for mast Ø 15-65 mm	Procom A/S

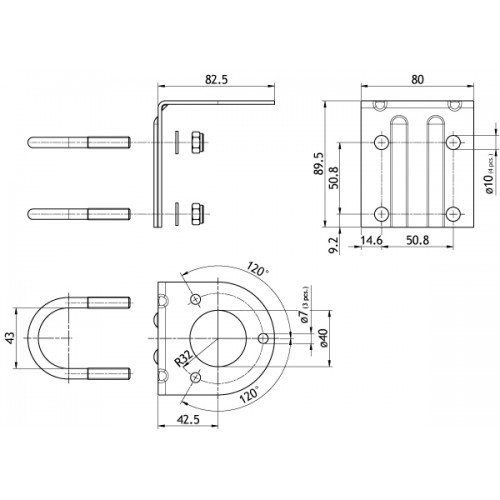

7000 00580800	110000196	Mounting bracket SM-MAS	stainless steel, mounting of MA-based maritime antennas on mast tubes with an outer-Ø of 30-44 mm	Procom A/S
