RFS 1 5/8" HELIFLEX® cable, flame-retardant, JFN jacket, on standard reel

Order number: 7000 00751603

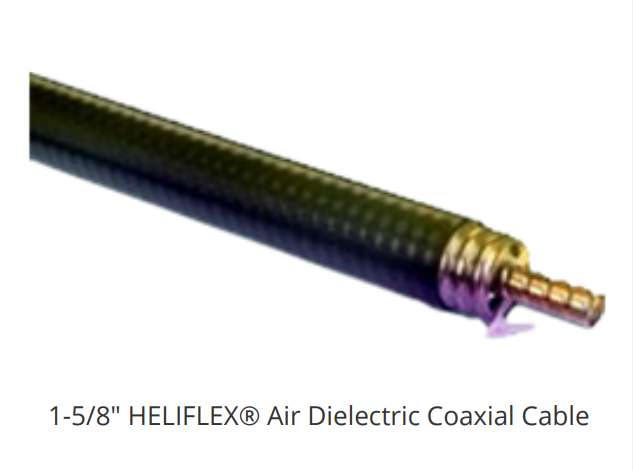

HELIFLEX® 1-5/8" low-loss air-dielectric cable; flame-retardant/halogen-free jacket



FEATURES/ADVANTAGES



Low attenuation

The low attenuation of the HELIFLEX® coaxial cable results in highly efficient signal transmission in your HF system.

Full shielding

The solid outer conductor of the HELIFLEX® coaxial cable forms a continuous RFI/EMI shield that minimizes system interference.

Low VSWR

Special versions of HELIFLEX® coaxial cables with low VSWR contribute to low system noise.

Excellent intermodulation performance

The solid inner and outer conductors of HELIFLEX® coaxial cables almost completely eliminate intermodulation. The intermodulation behavior is also confirmed with state-of-the-art equipment at the RFS factory.

High load capacity

Due to its low attenuation, excellent heat transfer properties and temperature-stabilized dielectric materials, the HELIFLEX® cable offers a reliable long-term service life at high transmission powers.

Broad range of applications

Typical areas of application are: Feed lines for broadcast and terrestrial microwave antennas, wireless mobile radio, PCS and ESMR base stations, cabling of antenna arrays and radio equipment connection lines.
