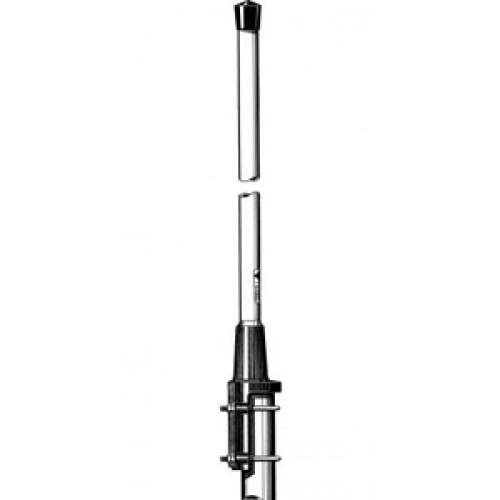

PRO CXL 380-470C, base station antenna, frequency range 380-470 MHz, 0 dBd gain, N coupler

Order number: 7000 00505600

FEATURES/ADVANTAGES

• CXL 380-470C is a rugged, 0 dBd, vertically polarized, omnidirectional base station antenna covering 380 - 470 MHz.
• The antenna is supplied with "C" mast mount, which is a universal, epoxy-coated mounting bracket made of corrosion-resistant aluminum. The associated U-brackets and fittings are made of stainless steel.
• The antenna can be mounted on mast tubes with a diameter of 27 to 65 mm, with cable routing possible on both the inside and outside of the mast tube.
• The broadband antenna element is completely enclosed in a fiberglass jacket so that performance is not impaired even in corrosive environments.
• To significantly reduce interference from atmospheric discharges, all metal parts of the antenna are DC earthed. Consequently, the antenna has a DC short circuit via the coaxial cable.
• This antenna is designed to ensure long, reliable operation in all climate zones.
