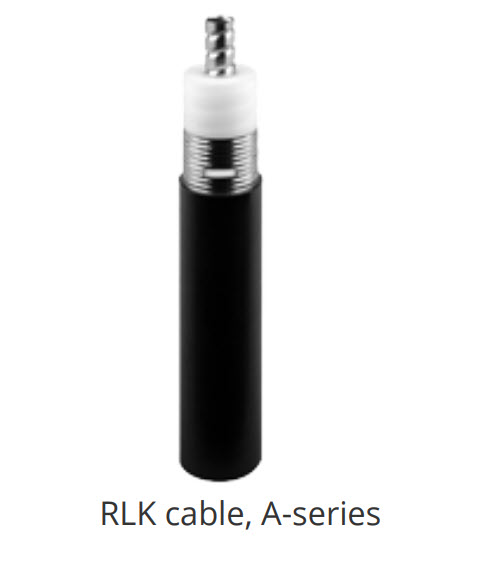

RFS 1 5/8" RADIAFLEX®, fire protection class Dca s2 d2 a1

Order number: 7000 00752171



RADIAFLEX® functions as a distributed antenna for communication in tunnels, mines and large building complexes and is the solution for any application in confined areas.

Slots in the copper outer conductor allow controlled radiation of a portion of the internal RF energy into the environment. Conversely, a signal transmitted close to the cable is coupled into the slots and forwarded along the entire length of the cable.

RADIAFLEX® is used for both one-way and two-way communication systems and due to its broadband capability, a single radiating cable can serve multiple communication systems simultaneously.

This RADIAFLEX® radiating cable uses a low-loss cellular polyethylene foam dielectric and a smooth copper outer conductor that has excellent electrical performance along with good bending characteristics.



FEATURES / ADVANTAGES



• Ultra-wideband from 30 MHz to 2700 MHz
• For applications in tunnels and buildings
• Low variations in coupling attenuation
• Lowest insertion loss and excellent coupling performance to minimize the number of active devices
