RFS 1 1/4" Radiaflex with JFLA sheath option fire protection class Dca s1 d2 a1 cut length

Order number: 7000 00752676



RADIAFLEX® functions as a distributed antenna for communication in tunnels, mines and large building complexes and is the solution for any application in confined spaces.

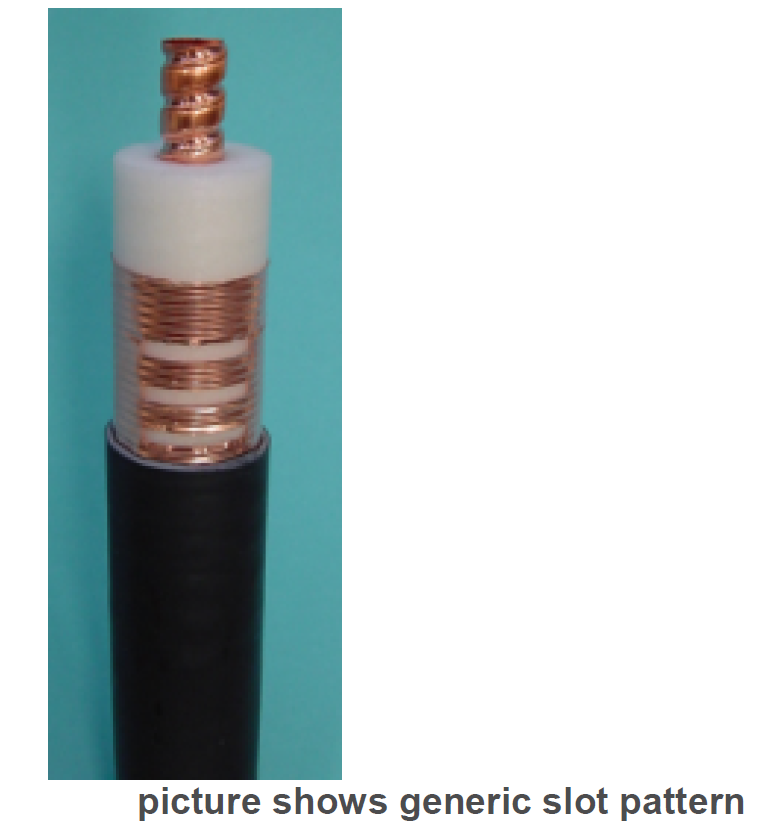

Slots in the copper outer conductor allow a controlled proportion of the internal RF energy to be radiated into the environment. Conversely, a signal transmitted near the cable is coupled into the slots and transmitted over the entire length of the cable.

RADIAFLEX® is used for both one-way and two-way communication systems, and due to its broadband capability, a single radiating cable can handle multiple communication systems simultaneously.

This RADIAFLEX® radiating cable uses a low-loss cellular polyethylene foam dielectric and a smooth copper outer conductor that provides excellent electrical performance along with good bending characteristics.



FEATURES / ADVANTAGES



• Broadband from 30 MHz to 980 MHz
• For applications in tunnels and buildings
• Low variations in coupling losses
