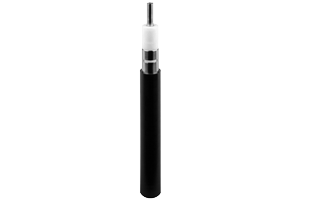

RFS RLK 500 m 7/8" RADIAFLEX®, fire protection class B2ca s1a d0 a1

Order number: 7000 00752319

This cable has a minimum purchase quantity of 4 km in length

RADIAFLEX® acts as a distributed antenna for communication in tunnels, mines and large building complexes and is the solution for any application in confined areas.

Slots in the copper outer conductor allow a controlled portion of the internal RF energy to be radiated into the environment. Conversely, a signal that is transmitted close to the cable is coupled into the slots and transmitted along the entire length of the cable.

RADIAFLEX® is used for both one-way and two-way communication systems, and due to its broadband capability, a single radiating cable can serve multiple communication systems simultaneously.

This RADIAFLEX® radiating cable utilizes a low-loss cellular polyethylene foam dielectric and a smooth copper outer conductor that provides excellent electrical performance along with good bending characteristics.

FEATURES/ADVANTAGES

• Broadband from 30 MHz to 980 MHz
• For applications in tunnels and buildings
• Low variations in coupling loss
