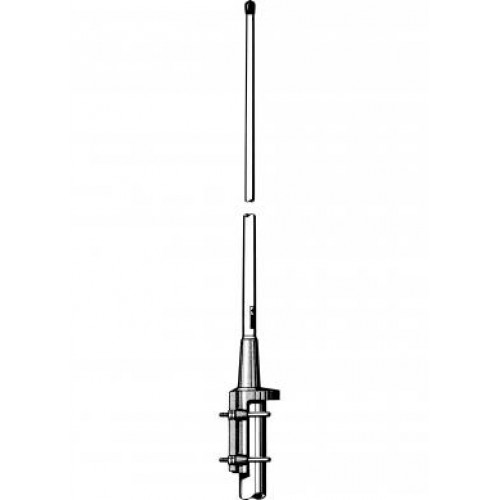

PRO CXL 70-3C/F, base station antenna, frequency range 406-430 MHz, 3 dB gain, N coupler

Order number: 7000 00507300

FEATURES/ADVANTAGES

• CXL 70-3C/... is a 3 dBd, vertically polarized, omnidirectional base station and marine antenna covering the 340 - 530 MHz band in 4 models with up to 10 MHz overlap.
• The antenna is supplied with our "C" universal mounting bracket made of epoxy-coated, seawater-resistant aluminum. The associated U-brackets and fittings are made of stainless steel.
• The CXL 70-3C/... can be mounted on mast tubes with a diameter of 27 to 65 mm, with cable routing either on the inside or outside of the mast tube.
• The carefully designed radiating element is enclosed in a high quality, conical fiberglass tube with low wind load, ensuring performance unaffected by corrosive environments.
• To significantly reduce interference from atmospheric discharges, all metal parts of the antenna are DC earthed. Consequently, the antenna has a DC short circuit via the coaxial cable.
• The exceptional mechanical properties of this antenna ensure long, reliable operation in all environments.
