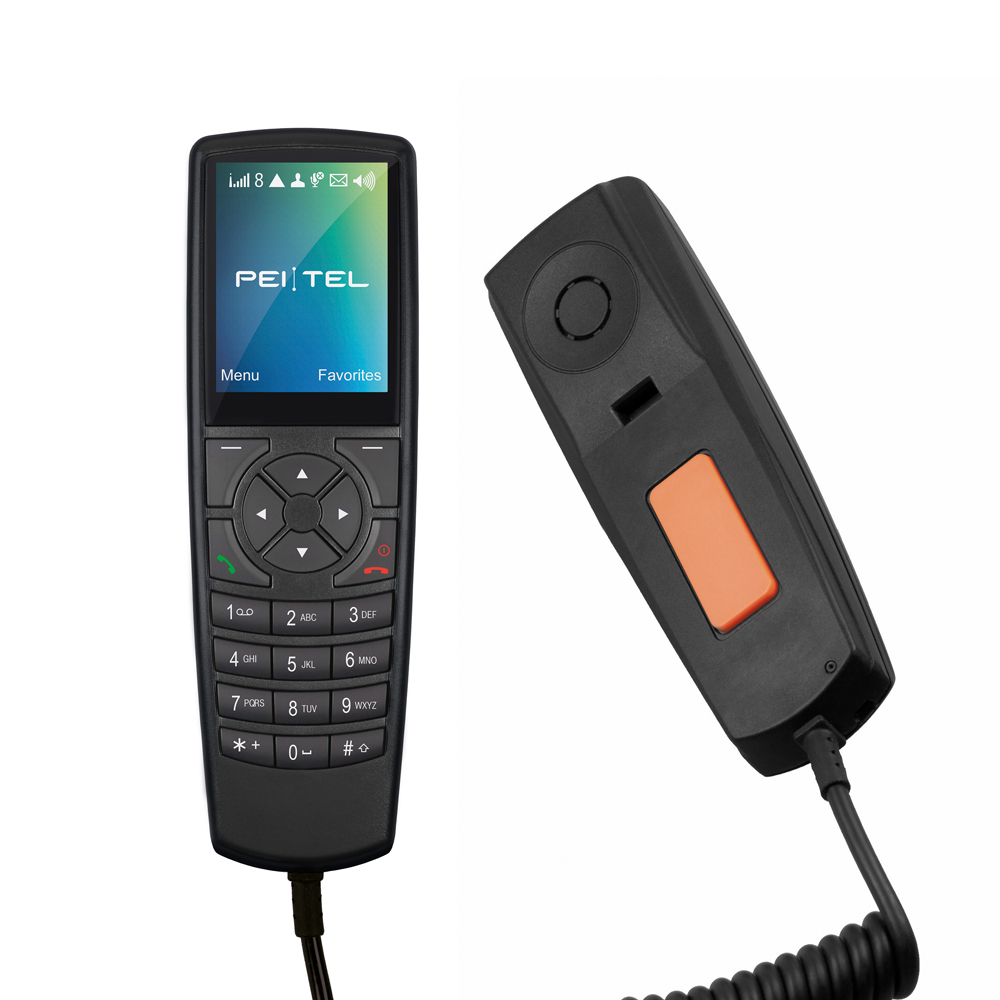

HA57 EVO Operating Handset

Order number: 01 6508 00810051

Programmable handset with one PTT button, keypad and graphics-capable color display

At a glance

• Protection class: IP40
• Large operating voltage range (5 V to 32 V)
• 2.4-inch color graphic display (RGB TFT LCD) with 240 x 320 pixels and 64k colors
• Integrated flash memory for one application (446k Flash, 64k RAM)
• Brightness control
• Full keypad
• Large PTT button on the underside (also very easy to operate for left-handers)
• Integrated microcontroller (ARM 32-bit Cortex-M3 CPU)
• Dynamic earpiece and electretMicrophone
• Noise-compensating microphone capsule
• Wear-free hook detection

Scope of delivery

• Operator handset with spiral cable
• A58 support with screws and drilling template

Options

• Small modifications and individual customizations on request

Application area

• Analogue and digital mobile radio systems
• Suitable as an input device for a wide range of BOS applications
• Mobile radio (e.g. GSM, LTE)
• . e.g. GSM, LTE)
• Operating device for satcom terminals (satellite communication)
• Communication systems in the railroad sector

Accessories

• Support A58 with screws and drilling template
