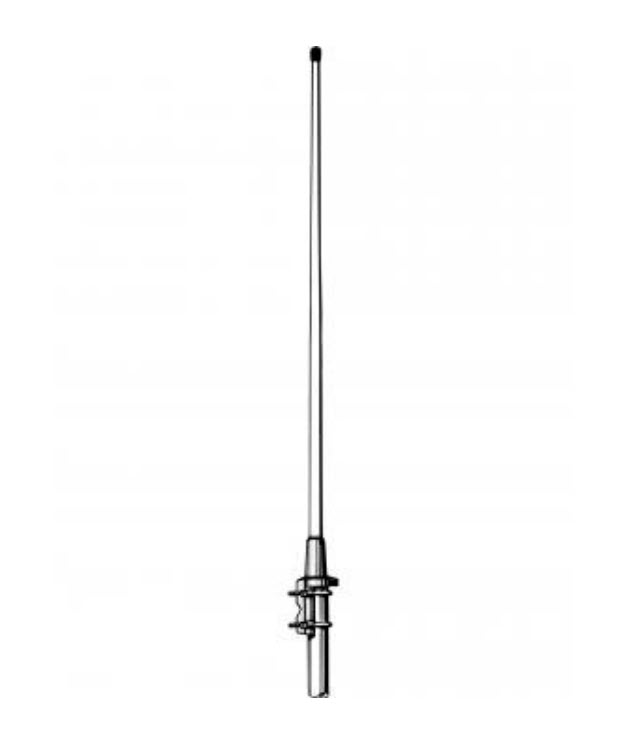

PRO CXL 2400-8LW/l, base station antenna, lightweight, frequency range 2300-2400 MHz, 8 dBd gain, N coupler

Order number: 7000 00754636



Vertically polarized, omnidirectional base station and marine antenna.
Approx. 8 dBd gain.
Equipped with the sturdy "LW" mast mount - a lightweight, versatile, epoxy-coated mount made of corrosion-free aluminium.
The associated U-brackets and fittings are made of stainless steel.
For mounting on vertical or horizontal pole tubes with an outer diameter of 16 to 54 mm.
The cable can be routed either outside or inside the mast tube.
Large bandwidth in terms of both SWR and gain.
Excellently suited for duplex operation with large distances between the TX and RX frequencies.
The antenna element is enclosed in a high-quality, conical fiberglass tube.
All metal parts in the antenna are DC grounded to reduce noise caused by atmospheric discharges. Therefore, the antenna has a DC short circuit via the coaxial cable.
The CXL 2400-8LW/... is a vibration-resistant, lightweight, slim, corrosion-resistant base station and marine antenna of modern design.
