PRO SMR 1, mast mount for lateral mast mounting, 1" screw thread for base station antennas

Order number: 7000 00535600

FEATURES/ADVANTAGES

• These stainless steel side mounting clamps are designed primarily for marine applications and provide a convenient means of side mounting all antennas based on the 1" water pipe mounting system. This system is a generally recognized mounting system for antennas in the marine sector.

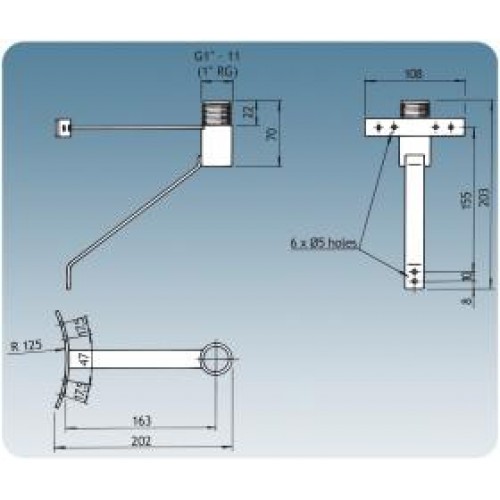

• The clamps are equipped with a 70 mm long 1" RG (G1" - 11) threaded tube that fits onto the rotating nut of the antennas.
• Both types are mostly used at the masthead of yachts where many obstacles, such as Windex, flags, navigation lights and possibly existing antenna systems, prevent proper installation of a new antenna.
• The SMR 1 is designed to be mounted on the side of the mast, where it can be fixed with screws or 5 mm rivets. Please note that the SMR 1 should be mounted at the very top of the mast so that the antenna can be positioned as unobstructed as possible. Objects that are parallel to the antenna element can severely impair the SWR and the radiation pattern of the antenna. The SMR 1 can be used in many other applications than those described here.
• The SMR 2 is intended for mounting on the normally horizontal mast plate (Windex plate). It is mounted at right angles to the plate so that the end of the tube protrudes 40-125 mm beyond the edge of the plate.
• The following antennas are suitable for SMR 1 and SMR 2: CXL 3-1, CXL 2-1/..., CXL 2-3, CXL-VHF/GSM, MARCELL, MARCELL 3+, CXL 70-1/..., CXL 70-3/..., CXL 900-1/..., CXL 900-3/..., CXL 1800-1/...., CXL 1800-3/. ..., CXL 1800-6/..., CXL 2400-1/..., CXL 2400-3/..., CXL 2400-6/..., CXL 900/1800, CXL 900/1800/1900 and GPS 4/....
• Both clamps are made of highly polished, acid-resistant stainless steel.
• The SMR 1 and SMR 2 are members of a complete family of Procom clamps for 1" pipe mount antennas. The complete family is shown below. The SMR 1 and SMR 2 or one of these accessories can be used for the vast majority of installations.
