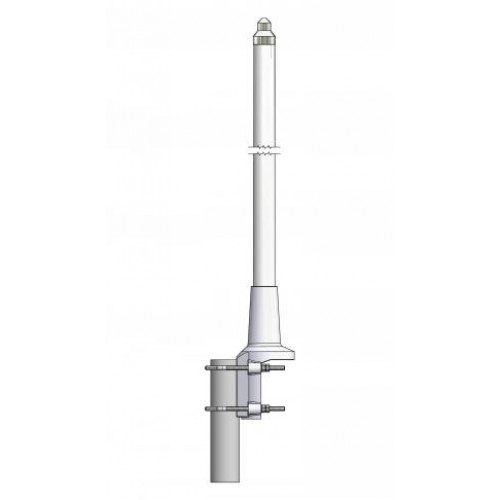

PRO CXL 70-1HD/h-PT, robust lightning current tested base station antenna, frequency range 410-430 MHz, 0 dBd gain, N coupler

Order number: 7000 00506600

FEATURES/ADVANTAGES

• CXL 70-1HD/...-PT is a 0 dBd, vertically polarized, omnidirectional base station antenna for the TETRA bands with two models.
• The antenna is approved as lightning current resistant (10/350 μs pulses/200 kA) according to EN 62305-1.
• The antenna is supplied with our robust "HD" type mast bracket - a heavy-duty, versatile bracket made of corrosion-free aluminum. The associated U-brackets and fittings are made of stainless steel.
• The antenna can be mounted on mast tubes with an outer diameter of 58 to 105 mm. The design of the bracket also makes it possible to route the cable either along the inside or outside of the mast tube.
• The antenna element is enclosed in a high-quality, conical fiberglass tube with low wind load, which ensures undisturbed performance in all climates.
• To significantly reduce interference from atmospheric discharges, all metal parts of the antenna are DC earthed. Consequently, the antenna has a DC short circuit via the coaxial cable.
• The CXL 70-1HD/...-PT is a vibration-resistant, slim, corrosion-resistant base station antenna of modern design.
